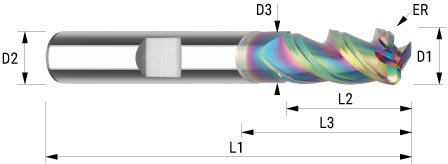

| Produktbezeichnung (Variante) | D1 | D2 | D3 | L1 | L2 | L3 | Z | RA | Schaft | L4 | Materialeignung | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B.DA6.050.00 | 5 | 6 | 4.9 | 57 | 15 | 18 | 3 | 0.5 | HA | 15 |
|
M20077943 | |
| B.DA6.050.10 | 5 | 6 | 4.9 | 57 | 15 | 18 | 3 | 0.5 | HB | 15 |
|
M20077944 | |
| B.DA6.051.00 | 5 | 6 | 4.9 | 57 | 15 | 18 | 3 | 1 | HA | 15 |
|
M20077945 | |
| B.DA6.051.10 | 5 | 6 | 4.9 | 57 | 15 | 18 | 3 | 1 | HB | 15 |
|
M20077946 | |
| B.DA6.060.00 | 6 | 6 | 5.8 | 57 | 15 | 21 | 3 | 0.5 | HA | 15 |
|
M20077947 | |
| B.DA6.060.10 | 6 | 6 | 5.8 | 57 | 15 | 21 | 3 | 0.5 | HB | 15 |
|
M20077948 | |
| B.DA6.061.00 | 6 | 6 | 5.8 | 57 | 15 | 21 | 3 | 1 | HA | 15 |
|
M20077949 | |
| B.DA6.061.10 | 6 | 6 | 5.8 | 57 | 15 | 21 | 3 | 1 | HB | 15 |
|
M20077950 | |
| B.DA6.080.00 | 8 | 8 | 7.8 | 64 | 22 | 28 | 3 | 0.5 | HA | 22 |
|
M20077951 | |
| B.DA6.080.10 | 8 | 8 | 7.8 | 64 | 22 | 28 | 3 | 0.5 | HB | 22 |
|
M20077952 | |
| B.DA6.081.00 | 8 | 8 | 7.8 | 64 | 22 | 28 | 3 | 1 | HA | 22 |
|
M20077953 | |
| B.DA6.081.10 | 8 | 8 | 7.8 | 64 | 22 | 28 | 3 | 1 | HB | 22 |
|
M20077954 | |
| B.DA6.100.00 | 10 | 10 | 9.7 | 73 | 25 | 33 | 3 | 0.5 | HA | 25 |
|
M20077955 | |
| B.DA6.100.10 | 10 | 10 | 9.7 | 73 | 25 | 33 | 3 | 0.5 | HB | 25 |
|
M20077956 | |
| B.DA6.101.00 | 10 | 10 | 9.7 | 73 | 25 | 33 | 3 | 1 | HA | 25 |
|
M20077957 | |
| B.DA6.101.10 | 10 | 10 | 9.7 | 73 | 25 | 33 | 3 | 1 | HB | 25 |
|
M20077958 | |
| B.DA6.120.00 | 12 | 12 | 11.7 | 84 | 28 | 39 | 3 | 0.5 | HA | 28 |
|
M20077959 | |
| B.DA6.120.10 | 12 | 12 | 11.7 | 84 | 28 | 39 | 3 | 0.5 | HB | 28 |
|
M20077960 | |
| B.DA6.121.00 | 12 | 12 | 11.7 | 84 | 28 | 39 | 3 | 1 | HA | 28 |
|
M20077961 | |
| B.DA6.121.10 | 12 | 12 | 11.7 | 84 | 28 | 39 | 3 | 1 | HB | 28 |
|
M20077962 | |
| B.DA6.122.00 | 12 | 12 | 11.7 | 84 | 28 | 39 | 3 | 2 | HA | 28 |
|
M20077963 | |
| B.DA6.122.10 | 12 | 12 | 11.7 | 84 | 28 | 39 | 3 | 2 | HB | 28 |
|
M20077964 | |
| B.DA6.160.00 | 16 | 16 | 15.7 | 93 | 35 | 45 | 3 | 1 | HA | 35 |
|
M20077965 | |
| B.DA6.160.10 | 16 | 16 | 15.7 | 93 | 35 | 45 | 3 | 1 | HB | 35 |
|
M20077966 | |
| B.DA6.161.00 | 16 | 16 | 15.7 | 93 | 35 | 45 | 3 | 2 | HA | 35 |
|
M20077967 | |
| B.DA6.161.10 | 16 | 16 | 15.7 | 93 | 35 | 45 | 3 | 2 | HB | 35 |
|
M20077968 | |
| B.DA6.200.00 | 20 | 20 | 19.5 | 104 | 41 | 52 | 3 | 1 | HA | 41 |
|
M20077969 | |
| B.DA6.200.10 | 20 | 20 | 19.5 | 104 | 41 | 52 | 3 | 1 | HB | 41 |
|
M20077970 | |
| B.DA6.201.00 | 20 | 20 | 19.5 | 104 | 41 | 52 | 3 | 2 | HA | 41 |
|
M20077971 | |
| B.DA6.201.10 | 20 | 20 | 19.5 | 104 | 41 | 52 | 3 | 2 | HB | 41 |
|
M20077972 |
