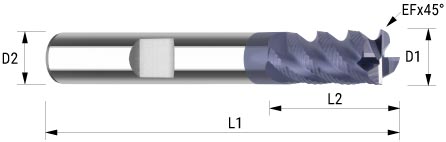

| Produktbezeichnung (Variante) | D1 | D2 | L1 | L2 | Z | Eckfase | Schaft | L4 | Materialeignung | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| IEC.204.00 | 4 | 6 | 57 | 11 | 3 | 0.15 | HA | 11 |
|
M20044067 | |
| IEC.204.10 | 4 | 6 | 57 | 11 | 3 | 0.15 | HB | 11 |
|
M20044068 | |
| IEC.205.00 | 5 | 6 | 57 | 13 | 4 | 0.15 | HA | 13 |
|
M20044069 | |
| IEC.205.10 | 5 | 6 | 57 | 13 | 4 | 0.15 | HB | 13 |
|
M20044070 | |
| IEC.206.00 | 6 | 6 | 57 | 16 | 4 | 0.15 | HA | 16 |
|
M20044071 | |
| IEC.206.10 | 6 | 6 | 57 | 16 | 4 | 0.15 | HB | 16 |
|
M20044072 | |
| IEC.208.00 | 8 | 8 | 63 | 16 | 4 | 0.15 | HA | 16 |
|
M20044073 | |
| IEC.208.10 | 8 | 8 | 63 | 16 | 4 | 0.15 | HB | 16 |
|
M20044074 | |
| IEC.210.00 | 10 | 10 | 72 | 22 | 4 | 0.2 | HA | 22 |
|
M20044075 | |
| IEC.210.10 | 10 | 10 | 72 | 22 | 4 | 0.2 | HB | 22 |
|
M20044076 | |
| IEC.212.00 | 12 | 12 | 83 | 28 | 4 | 0.2 | HA | 28 |
|
M20044077 | |
| IEC.212.10 | 12 | 12 | 83 | 28 | 4 | 0.2 | HB | 28 |
|
M20044078 | |
| IEC.216.00 | 16 | 16 | 92 | 32 | 5 | 0.25 | HA | 32 |
|
M20044079 | |
| IEC.216.10 | 16 | 16 | 92 | 32 | 5 | 0.25 | HB | 32 |
|
M20044080 | |
| IEC.220.00 | 20 | 20 | 104 | 38 | 6 | 0.25 | HA | 38 |
|
M20044081 | |
| IEC.220.10 | 20 | 20 | 104 | 38 | 6 | 0.25 | HB | 38 |
|
M20044082 |
