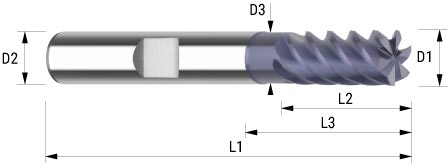

| Produktbezeichnung (Variante) | D1 | D2 | D3 | L1 | L2 | L3 | Z | NL | Schaft | L4 | Materialeignung | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BZH.050.00 | 5 | 6 | 4.6 | 57 | 13 | 18 | 6 | 13.5 | HB | 13 |
|
M10046415 | |
| BZH.030.00 | 3 | 6 | 2.7 | 57 | 8 | 11 | 6 | 8.4 | HB | 8 |
|
M20045693 | |
| BZH.040.00 | 4 | 6 | 3.7 | 57 | 11 | 16 | 6 | 11.5 | HB | 11 |
|
M20045694 | |
| BZH.060.00 | 6 | 6 | 5.5 | 57 | 13 | 18 | 6 | 13.5 | HB | 13 |
|
M20045695 | |
| BZH.080.00 | 8 | 8 | 7.5 | 63 | 19 | 24 | 6 | 21.5 | HB | 19 |
|
M20045696 | |
| BZH.100.00 | 10 | 10 | 9.5 | 72 | 22 | 32 | 6 | 24.5 | HB | 22 |
|
M20045697 | |
| BZH.120.00 | 12 | 12 | 11.5 | 83 | 26 | 36 | 6 | 29.5 | HB | 26 |
|
M20045698 | |
| BZH.140.00 | 14 | 14 | 13.5 | 83 | 26 | 36 | 6 | 29.5 | HB | 26 |
|
M20045699 | |
| BZH.160.00 | 16 | 16 | 15.5 | 92 | 32 | 42 | 6 | 36 | HB | 32 |
|
M20045700 | |
| BZH.180.00 | 18 | 18 | 17.5 | 92 | 32 | 42 | 8 | 35.5 | HB | 32 |
|
M20045701 | |
| BZH.200.00 | 20 | 20 | 19.5 | 104 | 38 | 48 | 8 | 41.5 | HB | 38 |
|
M20045702 | |
| BZH.250.00 | 25 | 25 | 24.5 | 121 | 45 | 65 | 8 | 48.5 | HB | 45 |
|
M20045703 |
