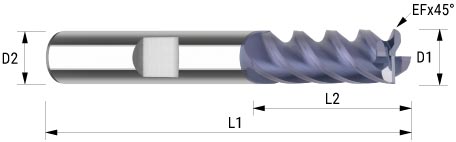

| Produktbezeichnung (Variante) | D1 | D2 | L1 | L2 | Z | Eckfase | NL | Schaft | L4 | Materialeignung | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F-D06-040-180HM166-S-E24046 | 4 | 6 | 57 | 18 | 4 | 0.1 | 19.4 | HB-5 | 18 |
|
E00024046 | |
| BBD.020.00 | 2 | 6 | 57 | 8 | 4 | 0.05 | 8.8 | HB | 8 |
|
M20045785 | |
| BBD.030.00 | 3 | 6 | 57 | 14 | 4 | 0.05 | 15.1 | HB | 14 |
|
M20045786 | |
| BBD.040.00 | 4 | 6 | 57 | 18 | 4 | 0.1 | 19.4 | HB-5 | 18 |
|
M20045787 | |
| BBD.050.00 | 5 | 6 | 57 | 20 | 4 | 0.1 | 21.5 | HB-5 | 20 |
|
M20045788 | |
| BBD.060.00 | 6 | 6 | 57 | 22 | 4 | 0.1 | 23.3 | HB-5 | 22 |
|
M20045789 | |
| BBD.080.00 | 8 | 8 | 63 | 30 | 4 | 0.15 | 33 | HB-5 | 30 |
|
M20045790 | |
| BBD.100.00 | 10 | 10 | 72 | 33 | 4 | 0.15 | 36 | HB-5 | 33 |
|
M20045791 | |
| BBD.120.00 | 12 | 12 | 83 | 34 | 4 | 0.2 | 37.5 | HB | 34 |
|
M20045792 | |
| BBD.160.00 | 16 | 16 | 92 | 38 | 4 | 0.2 | 42 | HB | 38 |
|
M20045793 | |
| BBD.200.00 | 20 | 20 | 104 | 47 | 4 | 0.3 | 52 | HB | 47 |
|
M20045794 |
