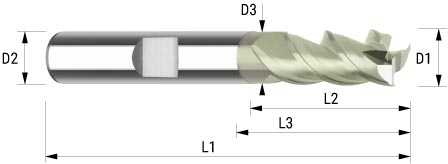

| Produktbezeichnung (Variante) | D1 | D2 | L1 | L2 | Z | Schaft | L4 | Materialeignung | D3 | L3 | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IDE.030.00 | 3 | 6 | 38 | 12 | 3 | HA | 12 |
|
M20044009 | |||
| IDE.030.10 | 3 | 6 | 38 | 12 | 3 | HB-k | 12 |
|
M20044010 | |||
| IDE.030.11 | 3 | 6 | 38 | 12 | 3 | HA | 12 |
|
M20044011 | |||
| IDE.030.19 | 3 | 6 | 38 | 12 | 3 | HB-k | 12 |
|
M20044012 | |||
| IDE.040.00 | 4 | 6 | 54 | 15 | 3 | HA | 15 |
|
3.8 | 18 | M20044013 | |
| IDE.040.10 | 4 | 6 | 54 | 15 | 3 | HB-5 | 15 |
|
3.8 | 18 | M20044014 | |
| IDE.040.11 | 4 | 6 | 54 | 15 | 3 | HA | 15 |
|
3.8 | 18 | M20044015 | |
| IDE.040.19 | 4 | 6 | 54 | 15 | 3 | HB-5 | 15 |
|
3.8 | 18 | M20044016 | |
| IDE.050.00 | 5 | 6 | 54 | 15 | 3 | HA | 15 |
|
4.8 | 18 | M20044017 | |
| IDE.050.10 | 5 | 6 | 54 | 15 | 3 | HB | 15 |
|
4.8 | 18 | M20044018 | |
| IDE.050.11 | 5 | 6 | 54 | 15 | 3 | HA | 15 |
|
4.8 | 18 | M20044019 | |
| IDE.050.19 | 5 | 6 | 54 | 15 | 3 | HB | 15 |
|
4.8 | 18 | M20044020 | |
| IDE.060.00 | 6 | 6 | 57 | 16 | 3 | HA | 16 |
|
5.8 | 21 | M20044021 | |
| IDE.060.10 | 6 | 6 | 57 | 16 | 3 | HB | 16 |
|
5.8 | 21 | M20044022 | |
| IDE.060.11 | 6 | 6 | 57 | 16 | 3 | HA | 16 |
|
5.8 | 21 | M20044023 | |
| IDE.060.19 | 6 | 6 | 57 | 16 | 3 | HB | 16 |
|
5.8 | 21 | M20044024 | |
| IDE.080.00 | 8 | 8 | 64 | 22 | 3 | HA | 22 |
|
7.8 | 28 | M20044025 | |
| IDE.080.10 | 8 | 8 | 64 | 22 | 3 | HB | 22 |
|
7.8 | 28 | M20044026 | |
| IDE.080.11 | 8 | 8 | 64 | 22 | 3 | HA | 22 |
|
7.8 | 28 | M20044027 | |
| IDE.080.19 | 8 | 8 | 64 | 22 | 3 | HB | 22 |
|
7.8 | 28 | M20044028 | |
| IDE.100.00 | 10 | 10 | 73 | 25 | 3 | HA | 25 |
|
9.7 | 33 | M20044029 | |
| IDE.100.10 | 10 | 10 | 73 | 25 | 3 | HB | 25 |
|
9.7 | 33 | M20044030 | |
| IDE.100.11 | 10 | 10 | 73 | 25 | 3 | HA | 25 |
|
9.7 | 33 | M20044031 | |
| IDE.100.19 | 10 | 10 | 73 | 25 | 3 | HB | 25 |
|
9.7 | 33 | M20044032 | |
| IDE.120.00 | 12 | 12 | 84 | 28 | 3 | HA | 28 |
|
11.7 | 39 | M20044033 | |
| IDE.120.10 | 12 | 12 | 84 | 28 | 3 | HB | 28 |
|
11.7 | 39 | M20044034 | |
| IDE.120.11 | 12 | 12 | 84 | 28 | 3 | HA | 28 |
|
11.7 | 39 | M20044035 | |
| IDE.120.19 | 12 | 12 | 84 | 28 | 3 | HB | 28 |
|
11.7 | 39 | M20044036 | |
| IDE.160.00 | 16 | 16 | 93 | 35 | 3 | HA | 35 |
|
15.7 | 45 | M20044037 | |
| IDE.160.10 | 16 | 16 | 93 | 35 | 3 | HB | 35 |
|
15.7 | 45 | M20044038 | |
| IDE.160.11 | 16 | 16 | 93 | 35 | 3 | HA | 35 |
|
15.7 | 45 | M20044039 | |
| IDE.160.19 | 16 | 16 | 93 | 35 | 3 | HB | 35 |
|
15.7 | 45 | M20044040 | |
| IDE.200.00 | 20 | 20 | 104 | 40 | 3 | HA | 40 |
|
19.7 | 54 | M20044041 | |
| IDE.200.10 | 20 | 20 | 104 | 40 | 3 | HB | 40 |
|
19.7 | 54 | M20044042 | |
| IDE.200.11 | 20 | 20 | 104 | 40 | 3 | HA | 40 |
|
19.7 | 54 | M20044043 | |
| IDE.200.19 | 20 | 20 | 104 | 40 | 3 | HB | 40 |
|
19.7 | 54 | M20044044 | |
| IDE.250.00 | 25 | 25 | 121 | 45 | 3 | HA | 45 |
|
24 | 65 | M20044045 | |
| IDE.250.10 | 25 | 25 | 121 | 45 | 3 | HB | 45 |
|
24 | 65 | M20044046 | |
| IDE.250.11 | 25 | 25 | 121 | 45 | 3 | HA | 45 |
|
24 | 65 | M20044047 | |
| IDE.250.19 | 25 | 25 | 121 | 45 | 3 | HB | 45 |
|
24 | 65 | M20044048 |
