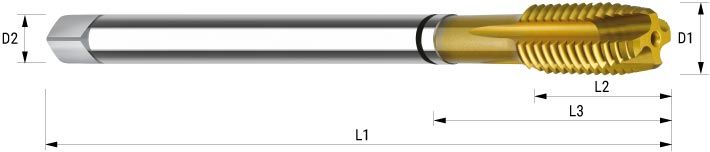

| Produktbezeichnung (Variante) | D1 | D2 | D3 | L1 | L2 | L3 | Z | Steigung | Eckfase | Schaft | L4 | DS | Materialeignung | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AGA8.0030.00 | M03 | 3.5 | 2.35 | 56 | 6 | 19 | 3 | 5 | 2 | DIN10 | 6 | 2.9 |
|
M20077853 | |
| AGA8.0040.00 | M04 | 4.5 | 3.09 | 63 | 7 | 21 | 3 | 7 | 2.8 | DIN10 | 7 | 3.7 |
|
M20077854 | |
| AGA8.0050.00 | M05 | 6 | 3.96 | 70 | 8 | 25 | 3 | 8 | 3.2 | DIN10 | 8 | 4.1 |
|
M20077855 | |
| AGA8.0060.00 | M06 | 6 | 4.7 | 80 | 10 | 30 | 3 | 1 | 4 | DIN10 | 10 | 4.9 |
|
M20077856 | |
| AGA8.0080.00 | M08 | 8 | 6.24 | 90 | 13 | 35 | 3 | 125 | 5 | DIN10 | 13 | 6.6 |
|
M20077857 | |
| AGA8.0100.00 | M10 | 10 | 7.89 | 100 | 15 | 39 | 3 | 15 | 6 | DIN10 | 15 | 8.3 |
|
M20077858 | |
| AGA8.0120.00 | M12 | 9 | 8.6 | 110 | 18 | 44 | 3 | 175 | 7 | DIN10 | 18 | 7 |
|
M20077859 | |
| AGA8.0160.00 | M16 | 12 | 11.6 | 110 | 20 | 44 | 4 | 2 | 8 | DIN10 | 20 | 9.8 |
|
M20077860 |
