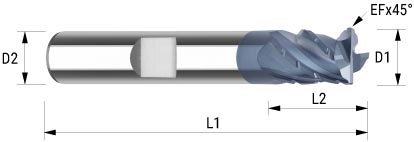

| Produktbezeichnung (Variante) | D1 | D2 | L1 | L2 | Z | Eckfase | NL | Schaft | L4 | Materialeignung | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GBB.040.00 | 4 | 6 | 54 | 8 | 4 | 0.13 | 11.5 | HB | 8 |
|
M20048618 | |
| GBB.050.00 | 5 | 6 | 54 | 6 | 4 | 0.18 | 9.5 | HB | 6 |
|
M20048619 | |
| GBB.060.00 | 6 | 6 | 54 | 10 | 4 | 0.2 | 15 | HB | 10 |
|
M20048620 | |
| GBB.080.00 | 8 | 8 | 58 | 12 | 4 | 0.2 | 16.5 | HB | 12 |
|
M20048621 | |
| GBB.100.00 | 10 | 10 | 66 | 14 | 4 | 0.3 | 19 | HB | 14 |
|
M20048622 | |
| GBB.120.00 | 12 | 12 | 73 | 16 | 4 | 0.3 | 21.5 | HB | 16 |
|
M20048623 | |
| GBB.140.00 | 14 | 14 | 75 | 18 | 4 | 0.3 | 23.5 | HB | 18 |
|
M20048624 | |
| GBB.160.00 | 16 | 16 | 82 | 22 | 4 | 0.4 | 29.5 | HB | 22 |
|
M20048625 | |
| GBB.200.00 | 20 | 20 | 92 | 26 | 4 | 0.5 | 33.5 | HB | 26 |
|
M20048626 |
