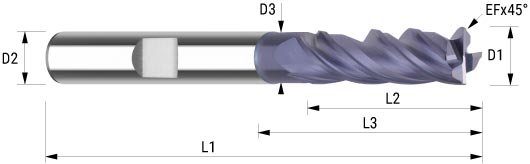

| Produktbezeichnung (Variante) | D1 | D2 | D3 | L1 | L2 | L3 | Z | Eckfase | NL | Schaft | L4 | Materialeignung | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A.GB4.060.10 | 6 | 6 | 5.5 | 63 | 22 | 30 | 4 | 0.2 | 27.5 | HB | 22 |
|
M20044759 | |
| A.GB4.080.10 | 8 | 8 | 7.5 | 80 | 28 | 36 | 4 | 0.2 | 36 | HB | 28 |
|
M20044760 | |
| A.GB4.100.10 | 10 | 10 | 9.5 | 100 | 33 | 54 | 4 | 0.2 | 40.5 | HB | 33 |
|
M20044761 | |
| A.GB4.120.10 | 12 | 12 | 11.5 | 100 | 42 | 54 | 4 | 0.3 | 50.5 | HB | 42 |
|
M20044762 | |
| A.GB4.160.10 | 16 | 16 | 15.5 | 150 | 53 | 69 | 4 | 0.3 | 64 | HB | 53 |
|
M20044763 | |
| A.GB4.200.10 | 20 | 20 | 19.5 | 150 | 68 | 84 | 4 | 0.4 | 80.5 | HB | 68 |
|
M20044764 |
