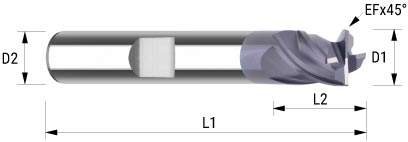

| Produktbezeichnung (Variante) | D1 | D2 | L1 | L2 | Z | Eckfase | Schaft | L4 | Materialeignung | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A.GD1.030.10 | 3 | 6 | 54 | 6 | 4 | 0.1 | HB | 6 |
|
M20044765 | |
| A.GD1.040.10 | 4 | 6 | 54 | 8 | 4 | 0.13 | HB | 8 |
|
M20044766 | |
| A.GD1.050.10 | 5 | 6 | 54 | 9 | 4 | 0.18 | HB | 9 |
|
M20044767 | |
| A.GD1.060.10 | 6 | 6 | 54 | 10 | 4 | 0.2 | HB | 10 |
|
M20044768 | |
| A.GD1.080.10 | 8 | 8 | 58 | 12 | 4 | 0.2 | HB | 12 |
|
M20044769 | |
| A.GD1.100.10 | 10 | 10 | 66 | 14 | 4 | 0.2 | HB | 14 |
|
M20044770 | |
| A.GD1.120.10 | 12 | 12 | 73 | 16 | 4 | 0.3 | HB | 16 |
|
M20044771 | |
| A.GD1.160.10 | 16 | 16 | 82 | 22 | 4 | 0.3 | HB | 22 |
|
M20044772 | |
| A.GD1.200.10 | 20 | 20 | 92 | 26 | 4 | 0.4 | HB | 26 |
|
M20044773 | |
| A.GD1.030.00 | 3 | 6 | 54 | 6 | 4 | 0.1 | HA | 6 |
|
M20061814 | |
| A.GD1.040.00 | 4 | 6 | 54 | 8 | 4 | 0.13 | HA | 8 |
|
M20061815 | |
| A.GD1.050.00 | 5 | 6 | 54 | 9 | 4 | 0.18 | HA | 9 |
|
M20061816 | |
| A.GD1.060.00 | 6 | 6 | 54 | 10 | 4 | 0.2 | HA | 10 |
|
M20061817 | |
| A.GD1.080.00 | 8 | 8 | 58 | 12 | 4 | 0.2 | HA | 12 |
|
M20061818 | |
| A.GD1.100.00 | 10 | 10 | 66 | 14 | 4 | 0.2 | HA | 14 |
|
M20061819 | |
| A.GD1.120.00 | 12 | 12 | 73 | 16 | 4 | 0.3 | HA | 16 |
|
M20061820 | |
| A.GD1.140.00 | 14 | 14 | 75 | 18 | 4 | 0.3 | HA | 18 |
|
M20061821 | |
| A.GD1.140.10 | 14 | 14 | 75 | 18 | 4 | 0.3 | HB | 18 |
|
M20061822 | |
| A.GD1.160.00 | 16 | 16 | 82 | 22 | 4 | 0.3 | HA | 22 |
|
M20061823 | |
| A.GD1.180.00 | 18 | 18 | 84 | 24 | 4 | 0.4 | HA | 24 |
|
M20061824 | |
| A.GD1.180.10 | 18 | 18 | 84 | 24 | 4 | 0.4 | HB | 24 |
|
M20061825 | |
| A.GD1.200.00 | 20 | 20 | 92 | 26 | 4 | 0.4 | HA | 26 |
|
M20061826 |
