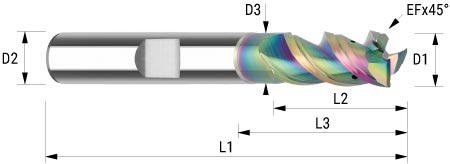

| Produktbezeichnung (Variante) | D1 | D2 | D3 | L1 | L2 | L3 | Z | Eckfase | NL | Schaft | L4 | Materialeignung | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B.DA5.030.00 | 3 | 6 | 2.9 | 57 | 12 | 14 | 3 | 0.1 | 13.5 | HA | 12 |
|
M20077928 | |
| B.DA5.040.00 | 4 | 6 | 3.9 | 57 | 12 | 15 | 3 | 0.1 | 14 | HA | 12 |
|
M20077929 | |
| B.DA5.050.00 | 5 | 6 | 4.9 | 57 | 15 | 18 | 3 | 0.1 | 21 | HA | 15 |
|
M20077930 | |
| B.DA5.060.00 | 6 | 6 | 5.8 | 57 | 15 | 21 | 3 | 0.1 | HA | 15 |
|
M20077931 | ||
| B.DA5.060.10 | 6 | 6 | 5.8 | 57 | 15 | 21 | 3 | 0.1 | HB | 15 |
|
M20077932 | ||
| B.DA5.080.00 | 8 | 8 | 7.8 | 64 | 22 | 28 | 3 | 0.1 | HA | 22 |
|
M20077933 | ||
| B.DA5.080.10 | 8 | 8 | 7.8 | 64 | 22 | 28 | 3 | 0.1 | HB | 22 |
|
M20077934 | ||
| B.DA5.100.00 | 10 | 10 | 9.7 | 73 | 25 | 33 | 3 | 0.2 | HA | 25 |
|
M20077935 | ||
| B.DA5.100.10 | 10 | 10 | 9.7 | 73 | 25 | 33 | 3 | 0.2 | HB | 25 |
|
M20077936 | ||
| B.DA5.120.00 | 12 | 12 | 11.7 | 84 | 28 | 39 | 3 | 0.2 | HA | 28 |
|
M20077937 | ||
| B.DA5.120.10 | 12 | 12 | 11.7 | 84 | 28 | 39 | 3 | 0.2 | HB | 28 |
|
M20077938 | ||
| B.DA5.160.00 | 16 | 16 | 15.7 | 93 | 35 | 45 | 3 | 0.2 | HA | 35 |
|
M20077939 | ||
| B.DA5.160.10 | 16 | 16 | 15.7 | 93 | 35 | 45 | 3 | 0.2 | HB | 35 |
|
M20077940 | ||
| B.DA5.200.00 | 20 | 20 | 19.5 | 104 | 41 | 52 | 3 | 0.2 | HA | 41 |
|
M20077941 | ||
| B.DA5.200.10 | 20 | 20 | 19.5 | 104 | 41 | 52 | 3 | 0.2 | HB | 41 |
|
M20077942 |
