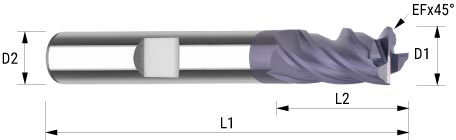

| Produktbezeichnung (Variante) | D1 | D2 | L1 | L2 | Z | Eckfase | Schaft | L4 | Materialeignung | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| GCB.030.00 | 3 | 6 | 57 | 8 | 4 | 0.1 | HB | 8 |
|
M20048681 | |
| GCB.040.00 | 4 | 6 | 57 | 11 | 4 | 0.13 | HB | 11 |
|
M20048682 | |
| GCB.050.00 | 5 | 6 | 57 | 13 | 4 | 0.18 | HB | 13 |
|
M20048683 | |
| GCB.060.00 | 6 | 6 | 57 | 13 | 4 | 0.2 | HB | 13 |
|
M20048684 | |
| GCB.070.00 | 7 | 8 | 63 | 19 | 4 | 0.2 | HB | 19 |
|
M20048685 | |
| GCB.080.00 | 8 | 8 | 63 | 19 | 4 | 0.2 | HB | 19 |
|
M20048686 | |
| GCB.090.00 | 9 | 10 | 72 | 22 | 4 | 0.3 | HB | 22 |
|
M20048687 | |
| GCB.100.00 | 10 | 10 | 72 | 22 | 4 | 0.3 | HB | 22 |
|
M20048688 | |
| GCB.110.00 | 11 | 12 | 83 | 26 | 4 | 0.3 | HB | 26 |
|
M20048689 | |
| GCB.120.00 | 12 | 12 | 83 | 26 | 4 | 0.3 | HB | 26 |
|
M20048690 | |
| GCB.130.00 | 13 | 14 | 83 | 26 | 4 | 0.3 | HB | 26 |
|
M20048691 | |
| GCB.140.00 | 14 | 14 | 83 | 26 | 4 | 0.3 | HB | 26 |
|
M20048692 | |
| GCB.160.00 | 16 | 16 | 92 | 32 | 4 | 0.4 | HB | 32 |
|
M20048693 | |
| GCB.180.00 | 18 | 18 | 92 | 32 | 4 | 0.4 | HB | 32 |
|
M20048694 | |
| GCB.200.00 | 20 | 20 | 104 | 38 | 4 | 0.5 | HB | 38 |
|
M20048695 | |
| GCB.250.00 | 25 | 25 | 104 | 38 | 4 | 0.5 | HB | 38 |
|
M20048696 |
