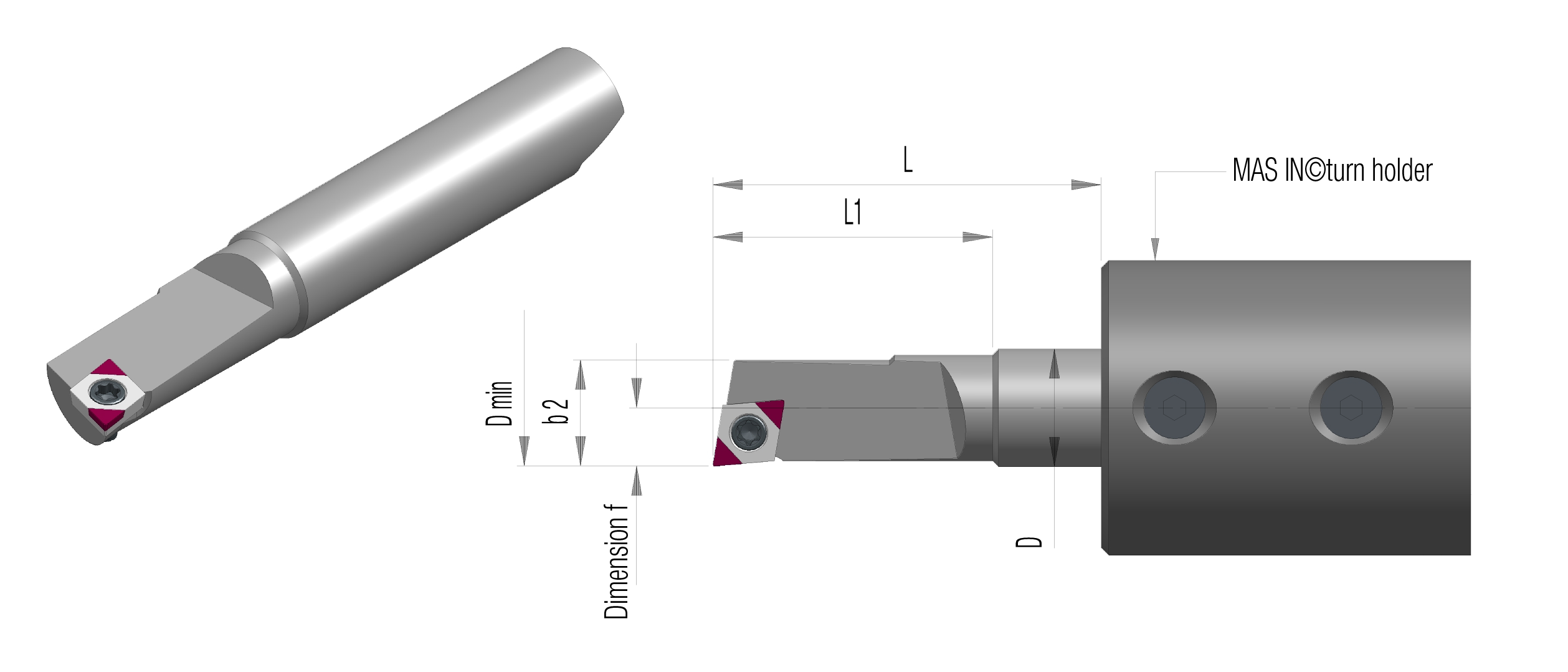

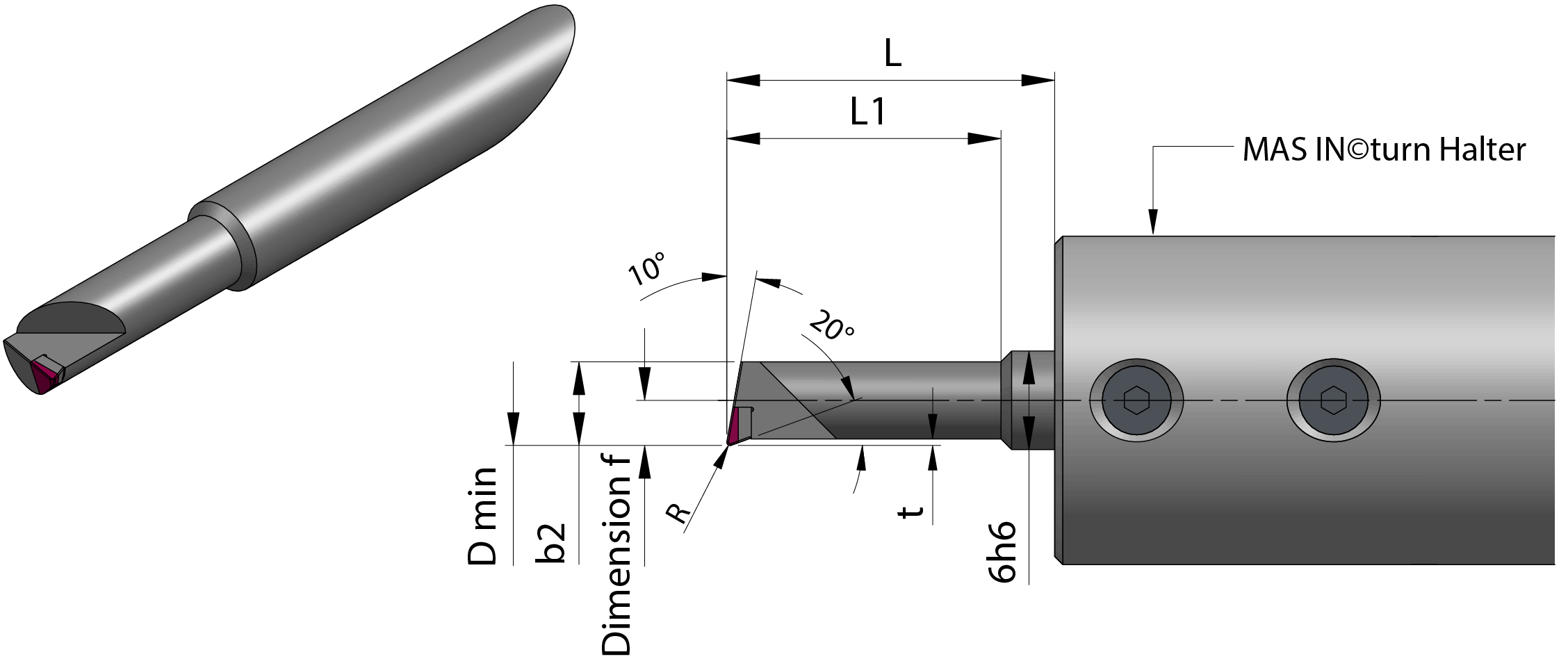

| Produktbezeichnung (Variante) | Dmin (Bohrungs-Ø min.) | L1 (nutzbare Werkzeuglänge) | Schnittstelle | Schneidstoff | f-Maß (Funktionsbreite) | b2 (Gesamtbreite der Schneide) | L (Ausspannlänge) | Werkzeughauptschneidenwinkel | WP Schraube | Anzugsmoment (Nm) | Materialeignung | t (Einstechtiefe max.) | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IN6.060.092-SEXBR04 | 6 | 9.2 | IN6 | CBN | 3 | 5.5 | 11 | 75° | WPS016030-06TX | 0.2 |
|
E00014257 |
|
|
| IN8.070.107-SEXBR04 | 7 | 10.7 | IN8 | CBN | 3.5 | 6.4 | 12 | 75° | BFTX016033 | 0.2 |
|
E00014259 |
|
|
| IN8.070.212-SEXBR04 | 7 | 21.2 | IN8 | CBN | 3.5 | 6.4 | 23 | 75° | BFTX016033 | 0.2 |
|
E00014260 |
|
|
| IN8.080.122-SEXBR04 | 8 | 12.2 | IN8 | CBN | 4 | 7.2 | 14 | 75° | 0.2 |
|
E00014261 |
|
||
| IN8.080.242-SEXBR04 | 8 | 24.2 | IN8 | CBN | 4 | 7.2 | 26 | 75° | BFTX016033 | 0.2 |
|
E00014262 |
|
|
| IN6.060.182-SEXBR04 | 6 | 18.2 | IN6 | CBN | 3 | 5.5 | 20 | 75° | WPS016030-06TX | 0.2 |
|
E00014258 |
|
|
| IN6.020.031CBN120 | 2 | 3.1 | IN6 | CBN | 1 | 1.8 | 7 | 60° |
|
0.2 | E00014354 | |||
| IN6.025.038CBN120 | 2.5 | 3.8 | IN6 | CBN | 1.25 | 2.3 | 7 | 60° |
|
0.2 | E00014355 | |||
| IN6.030.047CBN120 | 3 | 4.7 | IN6 | CBN | 1.5 | 2.8 | 7 | 60° |
|
0.2 | E00014356 | |||
| IN6.035.054CBN120 | 3.5 | 5.4 | IN6 | CBN | 1.75 | 3.2 | 8 | 60° |
|
0.3 | E00014357 | |||
| IN6.040.061CBN120 | 4 | 6.1 | IN6 | CBN | 2 | 3.7 | 8 | 60° |
|
0.3 | E00014358 | |||
| IN6.045.068CBN120 | 4.5 | 6.8 | IN6 | CBN | 2.25 | 4.2 | 8 | 60° |
|
0.3 | E00014359 | |||
| IN6.050.076CBN120 | 5 | 7.6 | IN6 | CBN | 2.5 | 4.6 | 11 | 60° |
|
0.4 | E00014360 | |||
| IN6.055.083CBN120 | 5.5 | 8.3 | IN6 | CBN | 2.75 | 5.1 | 11 | 60° |
|
0.4 | E00014361 | |||
| IN6.060.092CBN120 | 6 | 9.2 | IN6 | CBN | 3 | 5.6 | 11 | 60° |
|
0.4 | E00014362 | |||
| IN6.020.062CBN120 | 2 | 6.2 | IN6 | CBN | 1 | 1.8 | 14 | 60° |
|
0.2 | E00014497 | |||
| IN6.025.077CBN120 | 2.5 | 7.7 | IN6 | CBN | 1.25 | 2.3 | 14 | 60° |
|
0.2 | E00014499 | |||
| IN6.030.092CBN120 | 3 | 9.2 | IN6 | CBN | 1.5 | 2.8 | 14 | 60° |
|
0.2 | E00014500 | |||
| IN6.035.107CBN120 | 3.5 | 10.7 | IN6 | CBN | 1.75 | 3.2 | 16 | 60° |
|
0.3 | E00014501 | |||
| IN6.040.122CBN120 | 4 | 12.2 | IN6 | CBN | 2 | 3.7 | 16 | 60° |
|
0.3 | E00014502 | |||
| IN6.045.137CBN120 | 4.5 | 13.7 | IN6 | CBN | 2.25 | 4.2 | 16 | 60° |
|
0.3 | E00014503 | |||
| IN6.050.152CBN120 | 5 | 15.2 | IN6 | CBN | 2.5 | 4.6 | 20 | 60° |
|
0.4 | E00014504 | |||
| IN6.055.167CBN120 | 5.5 | 16.7 | IN6 | CBN | 2.75 | 5.1 | 20 | 60° |
|
0.4 | E00014505 | |||
| IN6.060.182CBN120 | 6 | 18.2 | IN6 | CBN | 3 | 5.6 | 20 | 60° |
|
0.4 | E00014506 |
