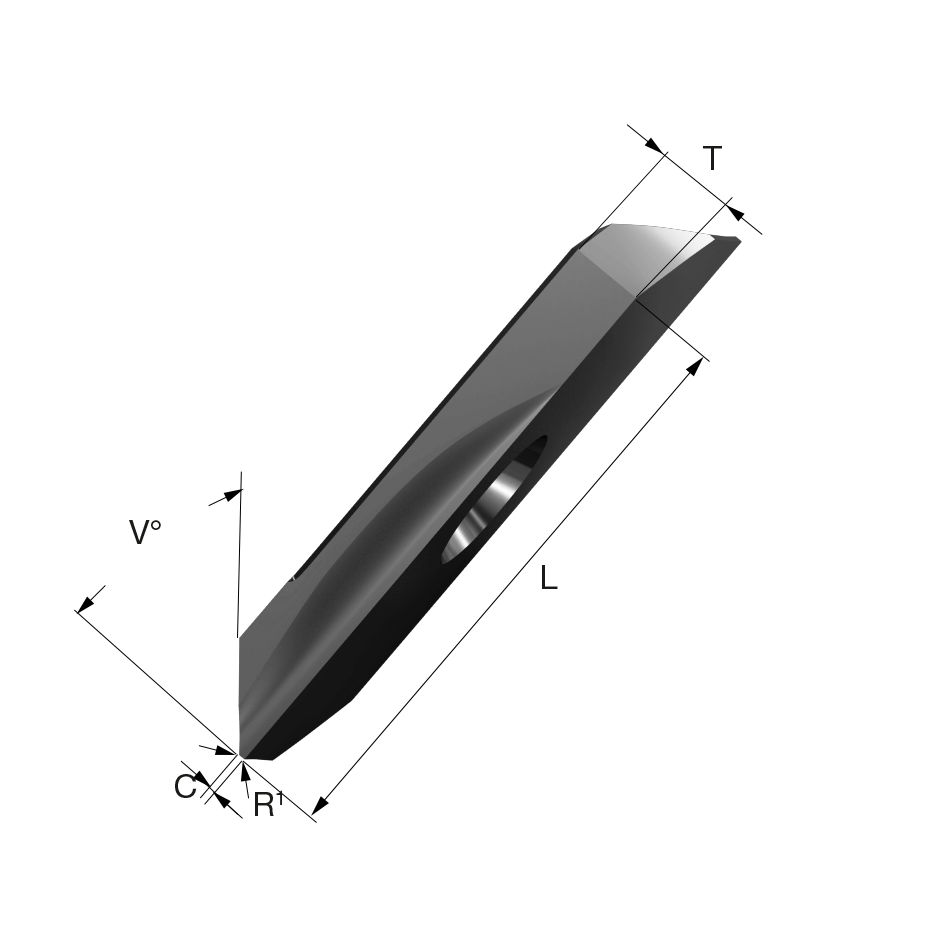

| Produktbezeichnung (Variante) | Typ | Plattengröße | Ausführung | L Länge (in mm) | V° | C° Spanwinkel | Ax Spanwinkel ° | RAD Spanwinkel ° | Hartmetallsorte | Materialeignung | R1 (mm) | C (mm) | R2 (mm) | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| J11ERHP608M | J | 11 | rechts | 11 | 3° | 6° | 6 | 6 | 8M |
|
M20041690 | ||||
| J11ERHP60B8 | J | 11 | rechts | 11 | 3° | 6° | 6 | 6 | B8 |
|
M20041691 | ||||
| J11ERHP60F8 | J | 11 | rechts | 11 | 3° | 6° | 6 | 6 | F8 |
|
M20041692 | ||||
| J11ERHP60NF8 | J | 11 | rechts | 11 | 3° | 6° | 6 | 6 | NF8 |
|
M20041693 | ||||
| J11ERHP6058M | J | 11 | rechts | 11 | 3° | 6° | 6 | 6 | 8M |
|
5 | M20041694 | |||
| J11ERHP605B8 | J | 11 | rechts | 11 | 3° | 6° | 6 | 6 | B8 |
|
5 | M20041695 | |||
| J11ERHP605F8 | J | 11 | rechts | 11 | 3° | 6° | 6 | 6 | F8 |
|
5 | M20041696 | |||
| J11ERHP605ND8 | J | 11 | rechts | 11 | 3° | 6° | 6 | 6 | ND8 |
|
5 | M20041697 | |||
| J11ERHP605NF8 | J | 11 | rechts | 11 | 3° | 6° | 6 | 6 | NF8 |
|
5 | M20041698 | |||
| J15ERDP1208M | J | 15 | rechts | 15 | 33° | 12° | 12 | 12 | 8M |
|
2 | M20041942 | |||
| J15ERDP120B8 | J | 15 | rechts | 15 | 33° | 12° | 12 | 12 | B8 |
|
2 | M20041943 | |||
| J15ERDP120F8 | J | 15 | rechts | 15 | 33° | 12° | 12 | 12 | F8 |
|
2 | M20041944 | |||
| J15ERDP12058M | J | 15 | rechts | 15 | 33° | 12° | 12 | 12 | 8M |
|
5 | M20041945 | |||
| J15ERDP1205F8 | J | 15 | rechts | 15 | 33° | 12° | 12 | 12 | F8 |
|
5 | M20041946 | |||
| J15ERDP1218M | J | 15 | rechts | 15 | 33° | 12° | 12 | 12 | 8M |
|
1 | M20041947 | |||
| J15ERDP121B8 | J | 15 | rechts | 15 | 33° | 12° | 12 | 12 | B8 |
|
1 | M20041948 | |||
| J15ERDP121F8 | J | 15 | rechts | 15 | 33° | 12° | 12 | 12 | F8 |
|
1 | M20041949 | |||
| J15ERDP12158M | J | 15 | rechts | 15 | 33° | 12° | 12 | 12 | 8M |
|
15 | M20041950 | |||
| J15ERDP1215B8 | J | 15 | rechts | 15 | 33° | 12° | 12 | 12 | B8 |
|
15 | M20041951 | |||
| J15ERDP1215N8M | J | 15 | rechts | 15 | 33° | 12° | 12 | 12 | N8M |
|
15 | M20041952 | |||
| J15ERDP1215ND8 | J | 15 | rechts | 15 | 33° | 12° | 12 | 12 | ND8 |
|
15 | M20041953 | |||
| J15ERDP1228M | J | 15 | rechts | 15 | 33° | 12° | 12 | 12 | 8M |
|
2 | M20041954 | |||
| J15ERDP122B8 | J | 15 | rechts | 15 | 33° | 12° | 12 | 12 | B8 |
|
2 | M20041955 | |||
| J15ERDP122F8 | J | 15 | rechts | 15 | 33° | 12° | 12 | 12 | F8 |
|
2 | M20041956 | |||
| J15ERDP122N8M | J | 15 | rechts | 15 | 33° | 12° | 12 | 12 | N8M |
|
2 | M20041957 | |||
| J15ERDP122ND8 | J | 15 | rechts | 15 | 33° | 12° | 12 | 12 | ND8 |
|
2 | M20041958 | |||
| J15ERDP122NF8 | J | 15 | rechts | 15 | 33° | 12° | 12 | 12 | NF8 |
|
2 | M20041959 | |||
| J15ERDP84N8M | J | 15 | rechts | 15 | 33° | 8° | 8 | 12 | N8M |
|
4 | M20041960 | |||
| J15ERDP84ND8 | J | 15 | rechts | 15 | 33° | 8° | 8 | 12 | ND8 |
|
4 | M20041961 | |||
| J15ERDP84NF8 | J | 15 | rechts | 15 | 33° | 8° | 8 | 12 | NF8 |
|
4 | M20041962 | |||
| J15ERHP1608M | J | 15 | rechts | 15 | 3° | 16° | 16 | 12 | 8M |
|
M20042031 | ||||
| J15ERHP160B8 | J | 15 | rechts | 15 | 3° | 16° | 16 | 12 | B8 |
|
M20042032 | ||||
| J15ERHP160C8 | J | 15 | rechts | 15 | 3° | 16° | 16 | 12 | C8 |
|
M20042033 | ||||
| J15ERHP160F8 | J | 15 | rechts | 15 | 3° | 16° | 16 | 12 | F8 |
|
M20042034 | ||||
| J15ERHP160XX | J | 15 | rechts | 15 | 3° | 16° | 16 | 12 | XX |
|
M20042035 | ||||
| J15ERHP16038M | J | 15 | rechts | 15 | 3° | 16° | 16 | 12 | 8M |
|
3 | M20042036 | |||
| J15ERHP1603B8 | J | 15 | rechts | 15 | 3° | 16° | 16 | 12 | B8 |
|
3 | M20042037 | |||
| J15ERHP1603F8 | J | 15 | rechts | 15 | 3° | 16° | 16 | 12 | F8 |
|
3 | M20042038 | |||
| J15ERHP16058M | J | 15 | rechts | 15 | 3° | 16° | 16 | 12 | 8M |
|
5 | M20042039 | |||
| J15ERHP1605B8 | J | 15 | rechts | 15 | 3° | 16° | 16 | 12 | B8 |
|
5 | M20042040 | |||
| J15ERHP1605F8 | J | 15 | rechts | 15 | 3° | 16° | 16 | 12 | F8 |
|
5 | M20042041 | |||
| J15ERHP1605N8M | J | 15 | rechts | 15 | 3° | 16° | 16 | 12 | N8M |
|
5 | M20042042 | |||
| J15ERHP1605ND8 | J | 15 | rechts | 15 | 3° | 16° | 16 | 12 | ND8 |
|
5 | M20042043 | |||
| J15ERHP1605NF8 | J | 15 | rechts | 15 | 3° | 16° | 16 | 12 | NF8 |
|
5 | M20042044 | |||
| J15ERHP1628M | J | 15 | rechts | 15 | 3° | 16° | 16 | 12 | 8M |
|
2 | M20042045 | |||
| J15ERHP162B8 | J | 15 | rechts | 15 | 3° | 16° | 16 | 12 | B8 |
|
2 | M20042046 | |||
| J15ERHP162C8 | J | 15 | rechts | 15 | 3° | 16° | 16 | 12 | C8 |
|
2 | M20042047 | |||
| J15ERHP162F8 | J | 15 | rechts | 15 | 3° | 16° | 16 | 12 | F8 |
|
2 | M20042048 | |||
| J15ERHP162N8M | J | 15 | rechts | 15 | 3° | 16° | 16 | 12 | N8M |
|
2 | M20042049 | |||
| J15ERHP162ND8 | J | 15 | rechts | 15 | 3° | 16° | 16 | 12 | ND8 |
|
2 | M20042050 | |||
| J15ERHP162NF8 | J | 15 | rechts | 15 | 3° | 16° | 16 | 12 | NF8 |
|
2 | M20042051 | |||
| J15ERHP818M | J | 15 | rechts | 15 | 3° | 8° | 8 | 12 | 8M |
|
1 | M20042052 | |||
| J15ERHP81B8 | J | 15 | rechts | 15 | 3° | 8° | 8 | 12 | B8 |
|
1 | M20042053 | |||
| J15ERHP81N8M | J | 15 | rechts | 15 | 3° | 8° | 8 | 12 | N8M |
|
1 | M20042054 | |||
| J15ERHP81ND8 | J | 15 | rechts | 15 | 3° | 8° | 8 | 12 | ND8 |
|
1 | M20042055 | |||
| J15ERHP81NF8 | J | 15 | rechts | 15 | 3° | 8° | 8 | 12 | NF8 |
|
1 | M20042056 | |||
| J15ERHP828M | J | 15 | rechts | 15 | 3° | 8° | 8 | 12 | 8M |
|
2 | M20042057 | |||
| J15ERHP82F8 | J | 15 | rechts | 15 | 3° | 8° | 8 | 12 | F8 |
|
2 | M20042058 | |||
| J15ERHP82N8M | J | 15 | rechts | 15 | 3° | 8° | 8 | 12 | N8M |
|
2 | M20042059 | |||
| J15ERHP82ND8 | J | 15 | rechts | 15 | 3° | 8° | 8 | 12 | ND8 |
|
2 | M20042060 | |||
| J15ERHP82NF8 | J | 15 | rechts | 15 | 3° | 8° | 8 | 12 | NF8 |
|
2 | M20042061 | |||
| J15ERJP1208M | J | 15 | rechts | 15 | 12° | 12° | 12 | 12 | 8M |
|
M20042092 | ||||
| J15ERJP120B8 | J | 15 | rechts | 15 | 12° | 12° | 12 | 12 | B8 |
|
M20042093 | ||||
| J15ERJP120F8 | J | 15 | rechts | 15 | 12° | 12° | 12 | 12 | F8 |
|
M20042094 | ||||
| J15ERJP2018M | J | 15 | rechts | 15 | 12° | 20° | 20 | 12 | 8M |
|
1 | M20042095 | |||
| J15ERJP201B8 | J | 15 | rechts | 15 | 12° | 20° | 20 | 12 | B8 |
|
1 | M20042096 | |||
| J15ERJP201C8 | J | 15 | rechts | 15 | 12° | 20° | 20 | 12 | C8 |
|
1 | M20042097 | |||
| J15ERJP201F8 | J | 15 | rechts | 15 | 12° | 20° | 20 | 12 | F8 |
|
1 | M20042098 | |||
| J15ERMP1228M | J | 15 | rechts | 15 | 72,5° | 12° | 12 | 12 | 8M |
|
2 | M20042117 | |||
| J15ERMP122B8 | J | 15 | rechts | 15 | 72,5° | 12° | 12 | 12 | B8 |
|
2 | M20042118 | |||
| J15ERMP122F8 | J | 15 | rechts | 15 | 72,5° | 12° | 12 | 12 | F8 |
|
2 | M20042119 | |||
| J15ERMP1248M | J | 15 | rechts | 15 | 72,5° | 12° | 12 | 12 | 8M |
|
4 | M20042120 | |||
| J15ERMP124B8 | J | 15 | rechts | 15 | 72,5° | 12° | 12 | 12 | B8 |
|
4 | M20042121 | |||
| J15ERMP124D8 | J | 15 | rechts | 15 | 72,5° | 12° | 12 | 12 | D8 |
|
4 | M20042122 | |||
| J15ERMP124F8 | J | 15 | rechts | 15 | 72,5° | 12° | 12 | 12 | F8 |
|
4 | M20042123 | |||
| J15ERMP124N8M | J | 15 | rechts | 15 | 72,5° | 12° | 12 | 12 | N8M |
|
4 | M20042124 | |||
| J15ERMP124ND8 | J | 15 | rechts | 15 | 72,5° | 12° | 12 | 12 | ND8 |
|
4 | M20042125 | |||
| J15ERMP124NF8 | J | 15 | rechts | 15 | 72,5° | 12° | 12 | 12 | NF8 |
|
4 | M20042126 | |||
| J15ERNP12028M | J | 15 | rechts | 15 | 48° | 12° | 12 | 12 | 8M |
|
0.2 | M20042146 | |||
| J15ERNP1202B8 | J | 15 | rechts | 15 | 48° | 12° | 12 | 12 | B8 |
|
0.2 | M20042147 | |||
| J15ERNP1202F8 | J | 15 | rechts | 15 | 48° | 12° | 12 | 12 | F8 |
|
0.2 | M20042148 | |||
| J15ERNP120528M | J | 15 | rechts | 15 | 48° | 12° | 12 | 12 | 8M |
|
5 | 2 | M20042149 | ||
| J15ERNP12052B8 | J | 15 | rechts | 15 | 48° | 12° | 12 | 12 | B8 |
|
5 | 2 | M20042150 | ||
| J15ERNP12052F8 | J | 15 | rechts | 15 | 48° | 12° | 12 | 12 | F8 |
|
5 | 2 | M20042151 | ||
| J15ERNP12088M | J | 15 | rechts | 15 | 48° | 12° | 12 | 12 | 8M |
|
8 | M20042152 | |||
| J15ERNP1208B8 | J | 15 | rechts | 15 | 48° | 12° | 12 | 12 | B8 |
|
8 | M20042153 | |||
| J15ERNP1208F8 | J | 15 | rechts | 15 | 48° | 12° | 12 | 12 | F8 |
|
8 | M20042154 | |||
| J15ERNP1208N8M | J | 15 | rechts | 15 | 48° | 12° | 12 | 12 | N8M |
|
8 | M20042155 | |||
| J15ERNP1208ND8 | J | 15 | rechts | 15 | 48° | 12° | 12 | 12 | ND8 |
|
8 | M20042156 | |||
| J15ERNP1208NF8 | J | 15 | rechts | 15 | 48° | 12° | 12 | 12 | NF8 |
|
8 | M20042157 | |||
| J15ERNP12138M | J | 15 | rechts | 15 | 48° | 12° | 12 | 12 | 8M |
|
1 | 0.3 | M20042158 | ||
| J15ERNP1213B8 | J | 15 | rechts | 15 | 48° | 12° | 12 | 12 | B8 |
|
1 | 0.3 | M20042159 | ||
| J15ERNP1213F8 | J | 15 | rechts | 15 | 48° | 12° | 12 | 12 | F8 |
|
1 | 0.3 | M20042160 | ||
| J15ERNP1228M | J | 15 | rechts | 15 | 48° | 12° | 12 | 12 | 8M |
|
2 | M20042161 | |||
| J15ERNP122B8 | J | 15 | rechts | 15 | 48° | 12° | 12 | 12 | B8 |
|
2 | M20042162 | |||
| J15ERNP122F8 | J | 15 | rechts | 15 | 48° | 12° | 12 | 12 | F8 |
|
2 | M20042163 | |||
| J15ERNP122N8M | J | 15 | rechts | 15 | 48° | 12° | 12 | 12 | N8M |
|
2 | M20042164 | |||
| J15ERNP122ND8 | J | 15 | rechts | 15 | 48° | 12° | 12 | 12 | ND8 |
|
2 | M20042165 | |||
| J15ERNP122NF8 | J | 15 | rechts | 15 | 48° | 12° | 12 | 12 | NF8 |
|
2 | M20042166 | |||
| J15ERVP12058M | J | 15 | rechts | 15 | 54° | 12° | 12 | 12 | 8M |
|
5 | M20042191 | |||
| J15ERVP1205B8 | J | 15 | rechts | 15 | 54° | 12° | 12 | 12 | B8 |
|
5 | M20042192 | |||
| J15ERVP1205C8 | J | 15 | rechts | 15 | 54° | 12° | 12 | 12 | C8 |
|
5 | M20042193 | |||
| J15ERVP1205F8 | J | 15 | rechts | 15 | 54° | 12° | 12 | 12 | F8 |
|
5 | M20042194 | |||
| J15ERVP12088M | J | 15 | rechts | 15 | 54° | 12° | 12 | 12 | 8M |
|
8 | M20042195 | |||
| J15ERVP1208B8 | J | 15 | rechts | 15 | 54° | 12° | 12 | 12 | B8 |
|
8 | M20042196 | |||
| J15ERVP1208F8 | J | 15 | rechts | 15 | 54° | 12° | 12 | 12 | F8 |
|
8 | M20042197 | |||
| J15ERVP1208N8M | J | 15 | rechts | 15 | 54° | 12° | 12 | 12 | N8M |
|
8 | M20042198 | |||
| J15ERVP1208NF8 | J | 15 | rechts | 15 | 54° | 12° | 12 | 12 | NF8 |
|
8 | M20042199 | |||
| J15ERVP1228M | J | 15 | rechts | 15 | 54° | 12° | 12 | 12 | 8M |
|
2 | M20042200 | |||
| J15ERVP122B8 | J | 15 | rechts | 15 | 54° | 12° | 12 | 12 | B8 |
|
2 | M20042201 | |||
| J15ERVP122C8 | J | 15 | rechts | 15 | 54° | 12° | 12 | 12 | C8 |
|
2 | M20042202 | |||
| J15ERVP122F8 | J | 15 | rechts | 15 | 54° | 12° | 12 | 12 | F8 |
|
2 | M20042203 | |||
| J15ERVP122N8M | J | 15 | rechts | 15 | 54° | 12° | 12 | 12 | N8M |
|
2 | M20042204 | |||
| J15ERVP122ND8 | J | 15 | rechts | 15 | 54° | 12° | 12 | 12 | ND8 |
|
2 | M20042205 | |||
| J15ERVP122NF8 | J | 15 | rechts | 15 | 54° | 12° | 12 | 12 | NF8 |
|
2 | M20042206 | |||
| J15ERVP1248M | J | 15 | rechts | 15 | 54° | 12° | 12 | 12 | 8M |
|
4 | M20042207 | |||
| J15ERVP124B8 | J | 15 | rechts | 15 | 54° | 12° | 12 | 12 | B8 |
|
4 | M20042208 | |||
| J15ERVP124D8 | J | 15 | rechts | 15 | 54° | 12° | 12 | 12 | D8 |
|
4 | M20042209 | |||
| J15ERVP124F8 | J | 15 | rechts | 15 | 54° | 12° | 12 | 12 | F8 |
|
4 | M20042210 | |||
| J15ERNP120318M | J | 15 | rechts | 15 | 48° | 12° | 12 | 12 | 8M |
|
3 | 0.12 | M20042228 | ||
| J15ERNP12031B8 | J | 15 | rechts | 15 | 48° | 12° | 12 | 12 | B8 |
|
3 | 0.12 | M20042229 | ||
| J15ERNP12031F8 | J | 15 | rechts | 15 | 48° | 12° | 12 | 12 | F8 |
|
3 | 0.12 | M20042230 | ||
| J15ERNP120518M | J | 15 | rechts | 15 | 48° | 12° | 12 | 12 | 8M |
|
5 | 0.12 | M20042231 | ||
| J15ERNP12051B8 | J | 15 | rechts | 15 | 48° | 12° | 12 | 12 | B8 |
|
5 | 0.12 | M20042232 | ||
| J15ERNP12051F8 | J | 15 | rechts | 15 | 48° | 12° | 12 | 12 | F8 |
|
5 | 0.12 | M20042233 | ||
| J15ERNP1213N8M | J | 15 | rechts | 15 | 48° | 12° | 12 | 12 | N8M |
|
1 | 0.3 | M20042234 | ||
| J15ERNP1213ND8 | J | 15 | rechts | 15 | 48° | 12° | 12 | 12 | ND8 |
|
1 | 0.3 | M20042235 | ||
| J15ERNP1213NF8 | J | 15 | rechts | 15 | 48° | 12° | 12 | 12 | NF8 |
|
1 | 0.3 | M20042236 | ||
| J20ERJP2048M | J | 20 | rechts | 20 | 12° | 20° | 20 | 12 | 8M |
|
4 | M20042309 | |||
| J20ERJP204B8 | J | 20 | rechts | 20 | 12° | 20° | 20 | 12 | B8 |
|
4 | M20042310 | |||
| J20ERJP204C8 | J | 20 | rechts | 20 | 12° | 20° | 20 | 12 | C8 |
|
4 | M20042311 | |||
| J20ERJP204F8 | J | 20 | rechts | 20 | 12° | 20° | 20 | 12 | F8 |
|
4 | M20042312 | |||
| J15ERDP1205B8 | J | 15 | rechts | 15 | 33° | 12° | 12 | 12 | B8 |
|
5 | M20043423 | |||
| J15ERVP124N8M | J | 15 | rechts | 15 | 54° | 12° | 12 | 12 | N8M |
|
4 | M20043424 | |||
| J15ERVP124ND8 | J | 15 | rechts | 15 | 54° | 12° | 12 | 12 | ND8 |
|
4 | M20043425 | |||
| J15ERVP124NF8 | J | 15 | rechts | 15 | 54° | 12° | 12 | 12 | NF8 |
|
4 | M20065329 |
