MAS SWISS©line K-Typ Insert, for back turning when an undercut required
Loading...
Loading...
Request product
Downloads to the product
Product information
MAS SWISS©line standard inserts all have sharp, fully ground cutting edges. Standard inserts are available between 2° and 20° positive cutting rake – to perform outstanding in every operation. Thanks to this inventive combination MAS SWISS©line inserts are up for any material or application challenge.
Variants

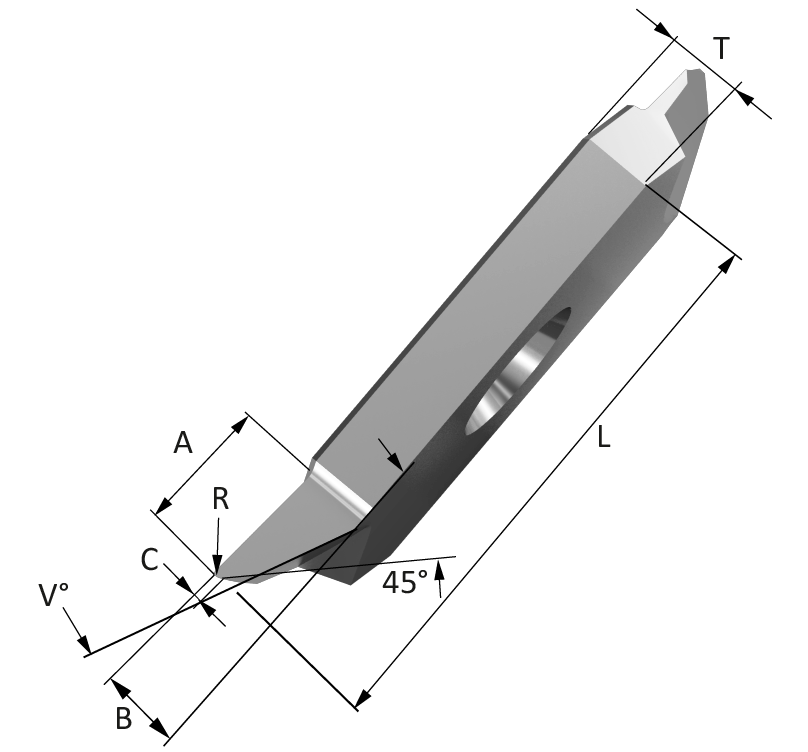

| product name | Type | plate size | Execution | L Length (mm) | B (mm) | A | Carbide grade | Suitability of material | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|
| K11ERC0108M | K | 11 | rechts | 11 | 1 | 1 | 8M |
|
M20042424 | |
| K11ERC010B8 | K | 11 | rechts | 11 | 1 | 1 | B8 |
|
M20042425 | |
| K11ERC010C8 | K | 11 | rechts | 11 | 1 | 1 | C8 |
|
M20042426 | |
| K11ERC010F8 | K | 11 | rechts | 11 | 1 | 1 | F8 |
|
M20042427 | |
| K15ELC0308M | K | 15 | links | 15 | 19 | 3 | 8M |
|
M20042521 | |
| K15ELC030B8 | K | 15 | links | 15 | 19 | 3 | B8 |
|
M20042522 | |
| K15ELC030C8 | K | 15 | links | 15 | 19 | 3 | C8 |
|
M20042523 | |
| K15ELC030F8 | K | 15 | links | 15 | 19 | 3 | F8 |
|
M20042524 | |
| K15ERC0308M | K | 15 | rechts | 15 | 19 | 3 | 8M |
|
M20042777 | |
| K15ERC030B8 | K | 15 | rechts | 15 | 19 | 3 | B8 |
|
M20042778 | |
| K15ERC030C8 | K | 15 | rechts | 15 | 19 | 3 | C8 |
|
M20042779 | |
| K15ERC030F8 | K | 15 | rechts | 15 | 19 | 3 | F8 |
|
M20042780 | |
| K15ERC030N8M | K | 15 | rechts | 15 | 19 | 3 | N8M |
|
M20042781 | |
| K15ERC030ND8 | K | 15 | rechts | 15 | 19 | 3 | ND8 |
|
M20042782 | |
| K15ERC030NF8 | K | 15 | rechts | 15 | 19 | 3 | NF8 |
|
M20042783 | |
| K15ERC0408M | K | 15 | rechts | 15 | 4 | 8M |
|
M20042784 | ||
| K15ERC040C8 | K | 15 | rechts | 15 | 4 | C8 |
|
M20042785 | ||
| K15ERC040F8 | K | 15 | rechts | 15 | 4 | F8 |
|
M20042786 | ||
| K15ERC0250ND8 | K | 15 | rechts | 15 | ND8 |
|
M20075073 |
