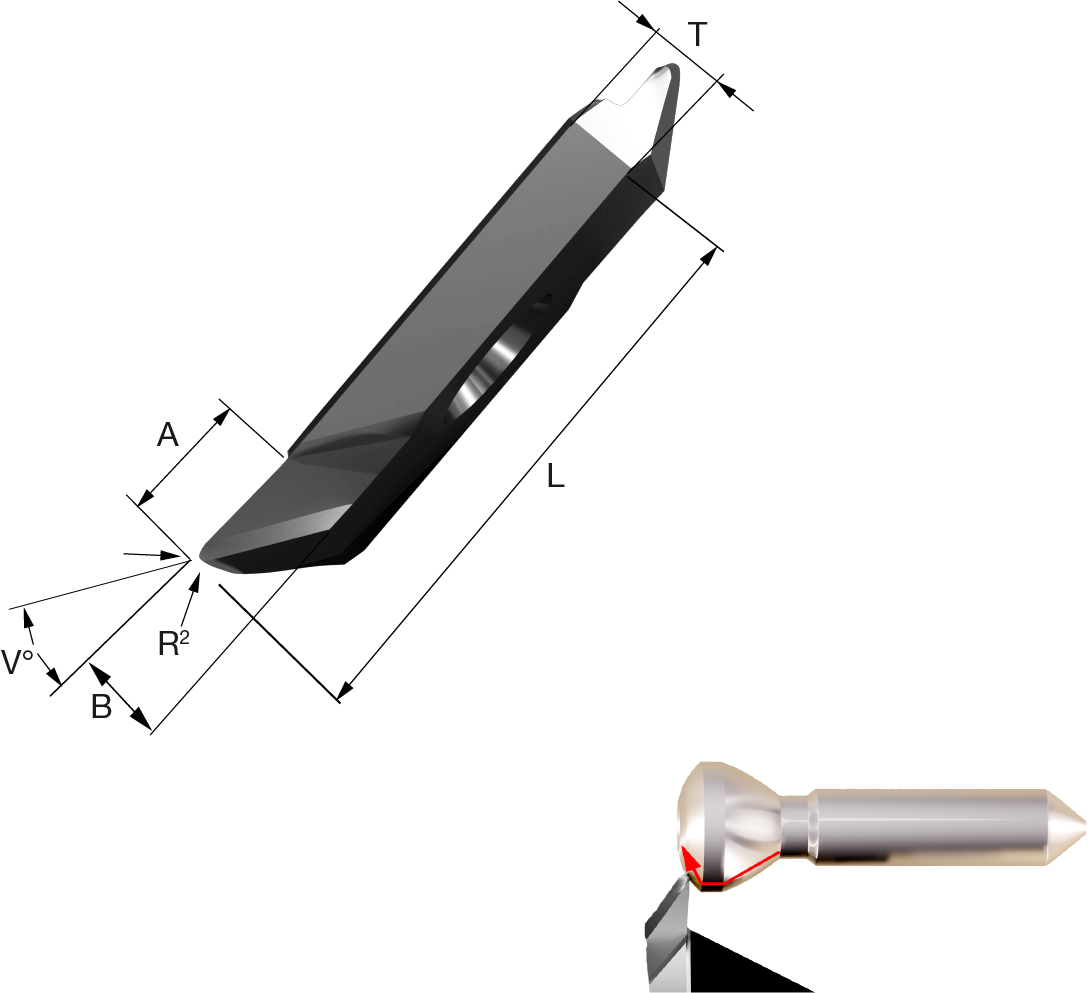

MAS SWISS©line K-Typ Insert, for back turning profiles
Loading...
Loading...
Request product
Downloads to the product
Product information
MAS SWISS©line standard inserts all have sharp, fully ground cutting edges. Standard inserts are available between 2° and 20° positive cutting rake – to perform outstanding in every operation. Thanks to this inventive combination MAS SWISS©line inserts are up for any material or application challenge.
Variants
| product name | Type | plate size | Execution | L Length (mm) | R1 (mm) | R2 (mm) | B (mm) | A | Carbide grade | Material suitability | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| K15ERVLR12048M | K | 15 | rechts | 15 | 4 | 4 | 1 | 3 | 8M |
|
M20042996 | |
| K15ERVLR1204B8 | K | 15 | rechts | 15 | 4 | 4 | 1 | 3 | B8 |
|
M20042997 | |
| K15ERVLR12058M | K | 15 | rechts | 15 | 5 | 5 | 19 | 3 | 8M |
|
M20042998 | |
| K15ERVLR1205B8 | K | 15 | rechts | 15 | 5 | 5 | 19 | 3 | B8 |
|
M20042999 | |
| K15ERVLR1205F8 | K | 15 | rechts | 15 | 5 | 5 | 19 | 3 | F8 |
|
M20043000 | |
| K15ERVLR12088M | K | 15 | rechts | 15 | 8 | 8 | 19 | 3 | 8M |
|
M20043001 | |
| K15ERVLR1208B8 | K | 15 | rechts | 15 | 8 | 8 | 19 | 3 | B8 |
|
M20043002 | |
| K15ERVLR1208C8 | K | 15 | rechts | 15 | 8 | 8 | 19 | 3 | C8 |
|
M20043003 | |
| K15ERVLR1208F8 | K | 15 | rechts | 15 | 8 | 8 | 19 | 3 | F8 |
|
M20043004 | |
| K15ERVLR12128M | K | 15 | rechts | 15 | 1 | 2 | 19 | 3 | 8M |
|
M20043005 | |
| K15ERVLR1212B8 | K | 15 | rechts | 15 | 1 | 2 | 19 | 3 | B8 |
|
M20043006 | |
| K15ERVLR1212C8 | K | 15 | rechts | 15 | 1 | 2 | 19 | 3 | C8 |
|
M20043007 | |
| K15ERVLR1212F8 | K | 15 | rechts | 15 | 1 | 2 | 19 | 3 | F8 |
|
M20043008 | |
| K15ERVLR1212T8 | K | 15 | rechts | 15 | 1 | 2 | 19 | 3 | T8 |
|
M20043009 | |
| K15ERVLR12158M | K | 15 | rechts | 15 | 15 | 15 | 19 | 3 | 8M |
|
M20043010 | |
| K15ERVLR1215B8 | K | 15 | rechts | 15 | 15 | 15 | 19 | 3 | B8 |
|
M20043011 | |
| K15ERVLR1215F8 | K | 15 | rechts | 15 | 15 | 15 | 19 | 3 | F8 |
|
M20043012 | |
| K15ERVLR1228M | K | 15 | rechts | 15 | 2 | 2 | 19 | 3 | 8M |
|
M20043013 | |
| K15ERVLR122B8 | K | 15 | rechts | 15 | 2 | 2 | 19 | 3 | B8 |
|
M20043014 | |
| K15ERVLR122C8 | K | 15 | rechts | 15 | 2 | 2 | 19 | 3 | C8 |
|
M20043015 | |
| K15ERVLR122F8 | K | 15 | rechts | 15 | 2 | 2 | 19 | 3 | F8 |
|
M20043016 | |
| K15ERVLR122288M | K | 15 | rechts | 15 | 8M |
|
M20043017 | |||||
| K15ERVLR12228B8 | K | 15 | rechts | 15 | B8 |
|
M20043018 | |||||
| K15ERVLR12228F8 | K | 15 | rechts | 15 | F8 |
|
M20043019 | |||||
| K15ERVLR82N8M | K | 15 | rechts | 15 | 2 | 2 | 2 | 3 | N8M |
|
M20043020 | |
| K15ERVLR82ND8 | K | 15 | rechts | 15 | 2 | 2 | 2 | 3 | ND8 |
|
M20043021 | |
| K15ERVLR82NF8 | K | 15 | rechts | 15 | 2 | 2 | 2 | 3 | NF8 |
|
M20043022 | |
| K15ERVLR82LN8M | K | 15 | rechts | 15 | 2 | 2 | 2 | 6 | N8M |
|
M20043023 | |
| K15ERVLR82LND8 | K | 15 | rechts | 15 | 2 | 2 | 2 | 6 | ND8 |
|
M20043024 | |
| K20ERVLR1228M | K | 20 | rechts | 20 | 2 | 2 | 34 | 9 | 8M |
|
M20043242 | |
| K20ERVLR122B8 | K | 20 | rechts | 20 | 2 | 2 | 34 | 9 | B8 |
|
M20043243 | |
| K20ERVLR122F8 | K | 20 | rechts | 20 | 2 | 2 | 34 | 9 | F8 |
|
M20043244 | |
| K20ERVLR828M | K | 20 | rechts | 20 | 8M |
|
M20043245 | |||||
| K20ERVLR82F8 | K | 20 | rechts | 20 | F8 |
|
M20043246 | |||||
| K15ERVLR1212N8 | K | 15 | rechts | 15 | 1 | 2 | 19 | 3 | N8 |
|
M20043440 | |
| K15ERVLR1212NF | K | 15 | rechts | 15 | 1 | 2 | 19 | 3 | NF |
|
M20043441 | |
| K15ERVLR84LN8M | K | 15 | rechts | 15 | N8M |
|
M20043442 | |||||
| K15ERVLR84LND8 | K | 15 | rechts | 15 | ND8 |
|
M20043443 | |||||
| K15ERVLR124ND8 | K | 15 | rechts | 15 | ND8 |
|
M20065327 | |||||
| K15ERVLR84ND8 | K | 15 | rechts | 15 | ND8 |
|
M20065328 | |||||
| K20ERVLR122NF8 | K | 20 | rechts | 20 | 2 | 2 | 34 | 9 | NF8 |
|
M20065355 | |
| K15ERVLR0804B8 | K | 15 | rechts | 15 | B8 |
|
M20074843 | |||||
| K20ERVLR124NF8 | K | 20 | rechts | 20 | NF8 |
|
M20074860 | |||||
| K15ERVLR1215ND8 | K | 15 | rechts | 15 | 15 | 15 | 19 | 3 | ND8 |
|
M20075074 | |
| K20ERVLR84ND8 | K | 20 | rechts | 20 | ND8 |
|
M20077136 | |||||
| K20ERVLR124ND8 | K | 20 | rechts | 20 | ND8 |
|
M20077137 | |||||
| K20ERVLR124NXD8 | K | 20 | rechts | 20 | NXD8 |
|
M20077159 | |||||
| K20ERVLR124NXF8 | K | 20 | rechts | 20 | NXF8 |
|
M20077160 |
