Modular Quick-Change System (PZ©turn), Cutting Heads CC... Version
Loading...
Loading...
Request product
Product information
Designed specifically for use with the PZ©turn quick-change system, the heads are matched to the shanks to ensure accurate and efficient machining.
- Quick-change system with only one clamping screw
- Cutting head suitable for metric and inch shank
- Highest level of precision even in terms of center height
- Multipurpose for all sliding head and multispindle lathes
- Inner coolant through holdert
- Optimal accessibility when changing inserts
- No loss of stability compare to mono-block tools
- Quick-change system with only one clamping screw
- Cutting head suitable for metric and inch shank
- Highest level of precision even in terms of center height
- Multipurpose for all sliding head and multispindle lathes
- Inner coolant through holdert
- Optimal accessibility when changing inserts
- No loss of stability compare to mono-block tools
Variants

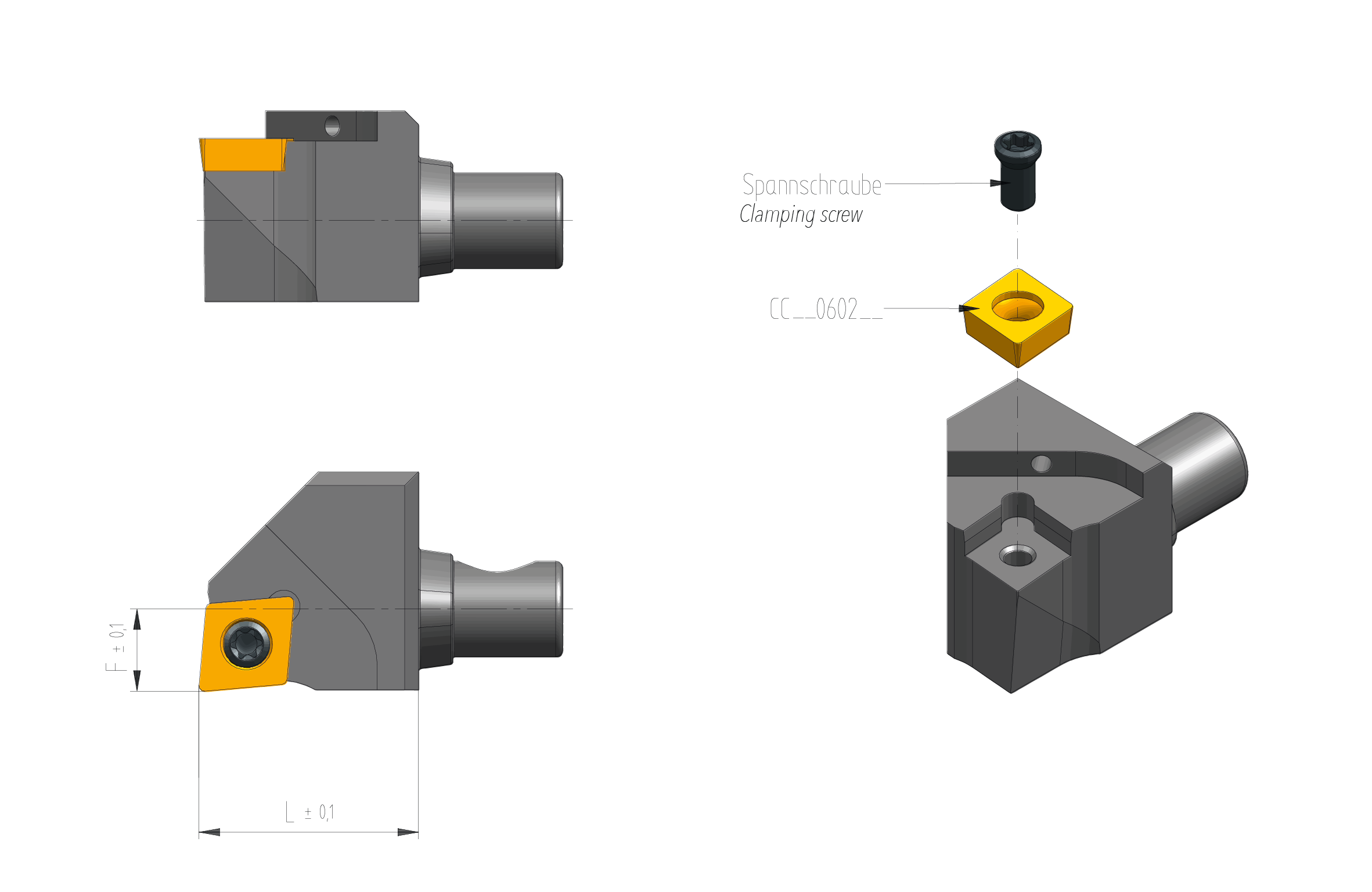

| product name | WSP-shape | WSP-Size | Interface | F-measured (WTA) | L (Length from plan system) LF | KAPR (angle) | WSP-voltage | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|
| PZ12-K-SCLCR-0616-06 | CC | 0602 | PZ12 | 6 | 16 | 95 | Schraube | E00016943 | |
| PZ12-K-SCLCR-0616-09 | CC | 09T3 | PZ12 | 6 | 16 | 95 | Schraube | E00016944 | |
| PZ16-K-SCLCR-0816-06 | CC | 0602 | PZ16 | 8 | 16 | 95 | Schraube | E00017170 | |
| PZ16-K-SCLCR-0816-09 | CC | 09T3 | PZ16 | 8 | 16 | 95 | Schraube | E00017171 | |
| PZ16-K-SCLCR-0816-09-X | CC | 09T3 | PZ16 | 8 | 16 | 95 | Schraube mit Zwischenlage | E00021027 | |
| PZ12-K-SCLCL-1016-06 | CC | 0602 | PZ12 | 10 | 16 | 95 | Schraube | E00021493 | |
| PZ12-K-SCLCL-1016-09 | CC | 09T3 | PZ12 | 10 | 16 | 95 | Schraube | E00021495 | |
| PZ10-K-SCLCR-0516-06 | CC | 0602 | PZ10 | 5 | 16 | 95 | Schraube | E00022211 | |
| PZ10-K-SCLCL-0816-06 | CC | 0602 | PZ10 | 8 | 16 | 95 | Schraube | E00022212 | |
| PZ10-K-SCLCR-0516-09 | CC | 09T3 | PZ10 | 5 | 16 | 95 | Schraube | E00023085 | |
| PZ16-K-SCLCL-1216-09 | CC | 09T3 | PZ16 | 12 | 16 | 95 | Schraube | E00023180 | |
| PZ12-K-SCLCR-0616-09-X | CC | 09T3 | PZ12 | 6 | 16 | 95 | Schraube mit Zwischenlage | E00024034 | |
| PZ20-K-SCLCR-1225-09 | CC | 09T3 | PZ20 | 12 | 25 | 95 | Schraube | E00025043 | |
| PZ20-K-SCLCL-1725-09 | CC | 09T3 | PZ20 | 17 | 25 | 95 | Schraube | E00025044 | |
| PZ16-K-SCLCR-0822-09 | CC | 09T3 | PZ16 | 8 | 22 | 95 | Schraube | E00033441 |
|
| PZ16-K-SCLCL-1222-09 | CC | 09T3 | PZ16 | 8 | 22 | 95 | Schraube | E00033442 |
|
