Modular quick-change system (PZ©turn), blanks
Loading...
Loading...
Request product
Product information
The blanks are used to produce a cutting head for the PZ©turn quick-change system, tailored to the customer's requirements.
- Quick-change system with only one clamping screw
- Available square shanks: 10/12/16/20 mm – inch: 3/8" / 1/2" / 5/8" /3/4"
- Cutting head suitable for metric and inch shank
- Highest level of precision even in terms of center height
- Multipurpose for all sliding head and multispindle lathes
- Inner coolant through holdert
- Optimal accessibility when changing inserts
- No loss of stability compare to mono-block tools
- Quick-change system with only one clamping screw
- Available square shanks: 10/12/16/20 mm – inch: 3/8" / 1/2" / 5/8" /3/4"
- Cutting head suitable for metric and inch shank
- Highest level of precision even in terms of center height
- Multipurpose for all sliding head and multispindle lathes
- Inner coolant through holdert
- Optimal accessibility when changing inserts
- No loss of stability compare to mono-block tools
Variants

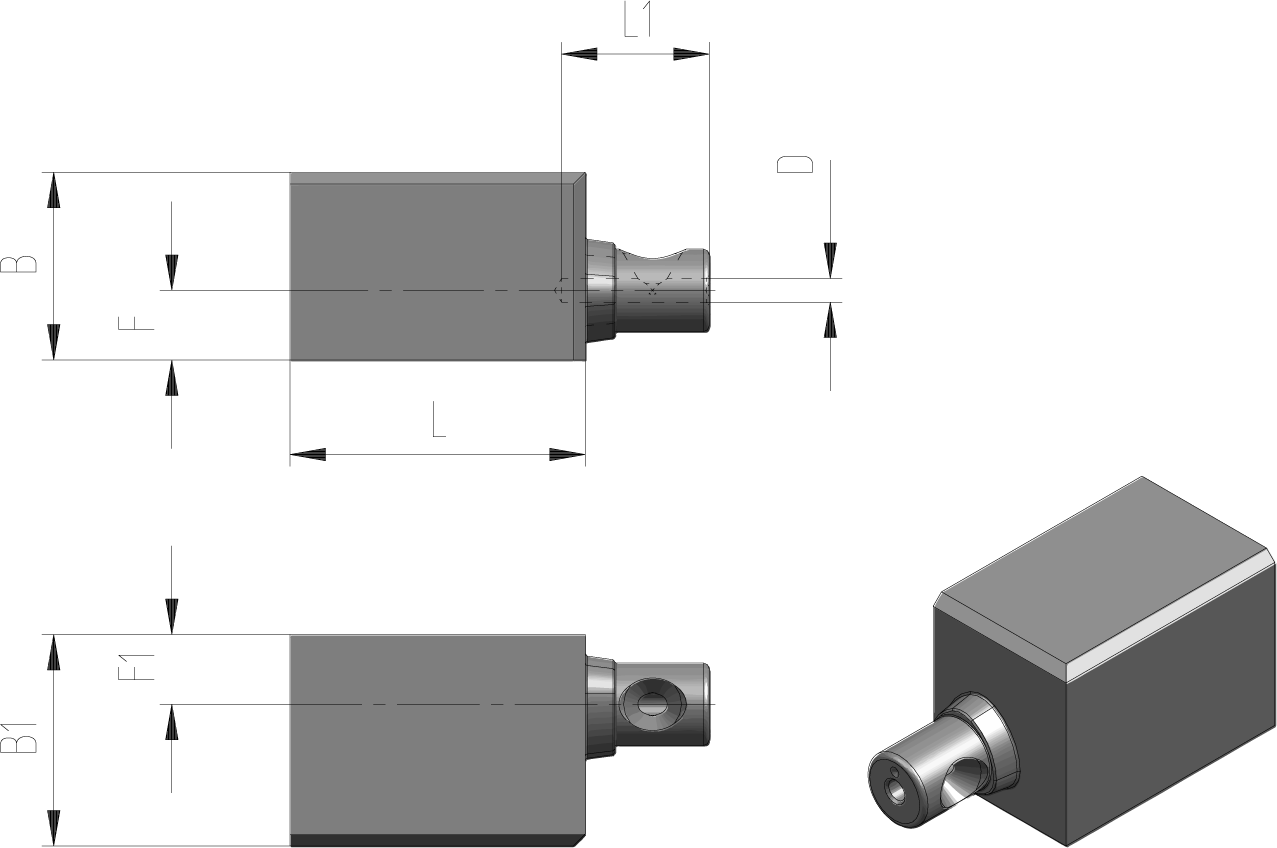

| product name | OAW | OAH | LH | OAL | HF | DCONMS | DF | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|
| PZ12-R-L25-E16954 | 14.1 | 16.1 | 30 | 40.5 | 5.9 | 6.99 | E00016954 | ||
| PZ16-R-L25-E17163 | 22.1 | 20.1 | 25 | 38 | 7.9 | 9.49 | E00017163 | ||
| PZ16-R-L30 | 18.1 | 20.1 | 30 | 43 | 7.9 | 9.49 | E00017615 | ||
| PZ10-R-L16 | 13.4 | 11.9 | 16 | 25 | 4.9 | 5.79 | E00018386 | ||
| PZ10-R-L16-E19114 | 29 | 25.9 | 28 | 37 | 9.9 | 5.79 | E00019114 | ||
| PZ20-R-L25 | 29 | 22.9 | 25 | 39 | 9.9 | 11.995 | E00019212 | ||
| PZ20-R-L28-E19499 | 29 | 25.9 | 28 | 42 | 9.9 | 11.995 | E00019499 | ||
| PZ16-R-L25-E20396 | 19.9 | 21.9 | 25 | 38 | 7.9 | 9.49 | E00020396 | ||
| PZ16-R-L35-E20489 | 19.9 | 21.9 | 35 | 48 | 7.9 | 9.49 | E00020489 | ||
| PZ12-R-D30-L25-RV | 25 | 35.5 | 6.99 | 3000 | E00020614 | ||||
| PZ16-R-D35-L30-RV | 30 | 43 | 9.49 | 3500 | E00020615 | ||||
| PZ10-R-D25-L24-RV | 24 | 33 | 5.79 | 2500 | E00022200 | ||||
| PZ10-R-L22 | 13.4 | 11.9 | 22 | 31 | 4.9 | 5.79 | E00022243 | ||
| PZ10-R-L22-E22244 | 13.4 | 13.9 | 16 | 25 | 4.9 | 5.79 | E00022244 | ||
| PZ10-R-L22-E23680 | 13.4 | 17.9 | 22 | 31 | 4.9 | 5.79 | E00023680 | ||
| PZ12-R-L30 | 18.1 | 16.1 | 25 | 35.5 | 5.9 | 6.99 | E00023862 | ||
| PZ20-R-L40 | 29 | 22.9 | 40 | 54 | 9.9 | 11.995 | E00024983 | ||
| PZ20-R-L40-E24984 | 29 | 25.9 | 40 | 54 | 9.9 | 11.995 | E00024984 | ||
| PZ20-R-L40-E24986 | 29 | 27.9 | 40 | 54 | 9.9 | 11.995 | E00024986 |
