MAS Solid carbide internal thread milling cutter with IK
Loading...
Loading...
Loading...
Loading...
Request product
Downloads to the product
Product information
- Geometry for normal materials - Typ N
- Flutes 3-6
- Helix angle 15°
- Coolant hole with frontal outlet
- Shank design HA
- Works standard
- Coating TIALCN Universal
- For universal processing
- Cooling with cutting fluid
- High Performance
- Blind and through holes
- Flutes 3-6
- Helix angle 15°
- Coolant hole with frontal outlet
- Shank design HA
- Works standard
- Coating TIALCN Universal
- For universal processing
- Cooling with cutting fluid
- High Performance
- Blind and through holes
Variants

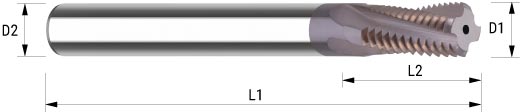

| product name | D1 | D2 | L1 | L2 | Z | Gradient | Application Area | shank | L4 | Suitability of material | size | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H.ZB0.500.001 | 3,8 | 4 | 50 | 8.4 | 3 | 8 | M5 (1,5xD) | HA | 8.4 |
|
M20054587 | ||
| H.ZB0.500.002 | 3,8 | 4 | 50 | 10.8 | 3 | 8 | M5 (2xD) | HA | 10.8 |
|
M20054588 | ||
| H.ZB0.500.003 | 3,8 | 4 | 50 | 13.2 | 3 | 8 | M5 (2,5xD) | HA | 13.2 |
|
M20054589 | ||
| H.ZB0.600.004 | 4,5 | 6 | 63 | 10.5 | 3 | 1 | M6 (1,5xD) | HA | 10.5 |
|
M20054590 | ||
| H.ZB0.600.005 | 4,5 | 6 | 63 | 13.5 | 3 | 1 | M6 (2xD) | HA | 13.5 |
|
M20054591 | ||
| H.ZB0.600.006 | 4,5 | 6 | 63 | 16.5 | 3 | 1 | M6 (2,5xD) | HA | 16.5 |
|
M20054592 | ||
| H.ZB0.600.007 | 8 | 8 | 76 | 17.5 | 4 | 1 | HA | 17.5 |
|
> M10 | M20054593 | ||
| H.ZB0.800.008 | 6 | 6 | 63 | 14.37 | 3 | 125 | M8 (1,5xD) | HA | 14.37 |
|
> M10 | M20054594 | |
| H.ZB0.800.009 | 6 | 6 | 63 | 18.12 | 3 | 125 | M8 (2xD) | HA | 18.12 |
|
> M10 | M20054595 | |
| H.ZB0.800.010 | 6 | 6 | 63 | 21.87 | 3 | 125 | M8 (2,5xD) | HA | 21.87 |
|
> M10 | M20054596 | |
| H.ZB1.000.011 | 7,5 | 8 | 76 | 17.25 | 3 | 15 | M10 (1,5xD) | HA | 17.25 |
|
> M12 | M20054597 | |
| H.ZB1.000.012 | 7,5 | 8 | 76 | 21.75 | 3 | 15 | M10 (2xD) | HA | 21.75 |
|
> M12 | M20054598 | |
| H.ZB1.000.013 | 7,5 | 8 | 76 | 27.75 | 3 | 15 | M10 (2,5xD) | HA | 27.75 |
|
> M12 | M20054599 | |
| H.ZB1.000.014 | 7,5 | 8 | 76 | 32.25 | 3 | 15 | M10 (3xD) | HA | 32.25 |
|
> M12 | M20054600 | |
| H.ZB1.000.016 | 16 | 16 | 120 | 32.25 | 6 | 15 | HA | 32.25 |
|
> M20 | M20054602 | ||
| H.ZB1.200.017 | 8 | 8 | 76 | 20.12 | 3 | 175 | M12 (1,5xD) | HA | 20.12 |
|
M20054603 | ||
| H.ZB1.200.018 | 8 | 8 | 76 | 27.12 | 3 | 175 | M12 (2xD) | HA | 27.12 |
|
M20054604 | ||
| H.ZB1.200.019 | 9 | 10 | 100 | 20.12 | 3 | 175 | M12 (1,5xD) | HA | 20.12 |
|
M20054605 | ||
| H.ZB1.200.020 | 9 | 10 | 100 | 27.12 | 3 | 175 | M12 (2xD) | HA | 27.12 |
|
M20054606 | ||
| H.ZB1.200.021 | 9 | 10 | 100 | 32.37 | 3 | 175 | M12 (2,5xD) | HA | 32.37 |
|
M20054607 | ||
| H.ZB1.200.022 | 9 | 10 | 100 | 37.62 | 3 | 175 | M12 (3xD) | HA | 37.62 |
|
M20054608 | ||
| H.ZB1.400.023 | 10 | 10 | 100 | 23 | 3 | 2 | M14 (1,5xD) | HA | 23 |
|
> M18 | M20054609 | |
| H.ZB1.400.024 | 10 | 10 | 100 | 31 | 3 | 2 | M14 (2xD) | HA | 31 |
|
> M18 | M20054610 | |
| H.ZB1.600.025 | 12 | 12 | 100 | 27 | 4 | 2 | M16 (1,5xD) | HA | 27 |
|
> M18 | M20054611 | |
| H.ZB1.600.026 | 12 | 12 | 100 | 35 | 4 | 2 | M16 (2xD) | HA | 35 |
|
> M18 | M20054612 | |
| H.ZB1.600.027 | 12 | 12 | 100 | 43 | 4 | 2 | M16 (2,5xD) | HA | 43 |
|
> M18 | M20054613 | |
| H.ZB1.600.028 | 12 | 12 | 100 | 51 | 3 | 2 | M16 (3xD) | HA | 51 |
|
> M18 | M20054614 | |
| H.ZB1.600.029 | 16 | 16 | 120 | 39 | 5 | 2 | HA | 39 |
|
> M20 | M20054615 | ||
| H.ZB2.000.030 | 14 | 14 | 100 | 33.75 | 4 | 25 | M20 (1,5xD) | HA | 33.75 |
|
M20054616 | ||
| H.ZB2.000.031 | 14 | 14 | 100 | 43.75 | 4 | 25 | M20 (2xD) | HA | 43.75 |
|
M20054617 | ||
| H.ZB2.000.032 | 15 | 16 | 120 | 53.75 | 4 | 25 | M20 (2,5xD) | HA | 53.75 |
|
M20054618 | ||
| H.ZB2.400.033 | 16 | 16 | 120 | 40.5 | 3 | 3 | M24 (1,5xD) | HA | 40.5 |
|
> M30 | M20054619 | |
| H.ZB2.400.034 | 16 | 16 | 120 | 52.5 | 3 | 3 | M24 (2xD) | HA | 52.5 |
|
> M30 | M20054620 | |
| H.ZB3.000.035 | 20 | 20 | 150 | 50.75 | 3 | 35 | M30 (1,5xD) | HA | 50.75 |
|
M20054621 | ||
| H.ZB3.000.036 | 20 | 20 | 150 | 64.75 | 3 | 35 | M30 (2xD) | HA | 64.75 |
|
M20054622 | ||
| H.ZB1.000.037 | 12 | 12 | 100 | 29.25 | 5 | 15 | HA | 29.25 |
|
>= M16 | M20078601 |
