MAS HSS-E machine taps
Loading...
Loading...
Loading...
Loading...
Request product
Downloads to the product
Product information
- Standard DIN 13
- Screw tap form B
- Tolerance class ISO2 6H
- Helix angle 0°
- Standard DIN 371
- Norm DIN 376
- material HSS-E
- Coating TIN
- For steel
- High Performance
- For through holes
- Screw tap form B
- Tolerance class ISO2 6H
- Helix angle 0°
- Standard DIN 371
- Norm DIN 376
- material HSS-E
- Coating TIN
- For steel
- High Performance
- For through holes
Variants

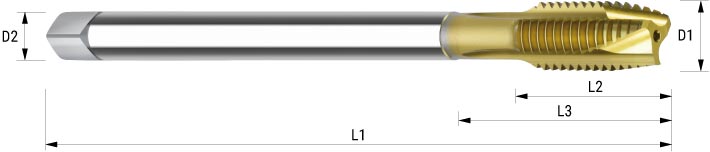

| product name | D1 | D2 | D3 | L1 | L2 | L3 | Z | Gradient | Corner chamfer | shank | L4 | DS | Suitability of material | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AGZ1.0030.00 | M03 | 3.5 | 2.35 | 56 | 11 | 18 | 3 | 5 | 2 | DIN10 | 11 | 2.4 |
|
M20077787 | |
| AGZ1.0040.00 | M04 | 4.5 | 3.09 | 63 | 13 | 21 | 3 | 7 | 2.8 | DIN10 | 13 | 3.2 |
|
M20077788 | |
| AGZ1.0050.00 | M05 | 6 | 3.96 | 70 | 15 | 25 | 3 | 8 | 3.2 | DIN10 | 15 | 4 |
|
M20077789 | |
| AGZ1.0060.00 | M06 | 6 | 4.7 | 80 | 17 | 30 | 3 | 1 | 4 | DIN10 | 17 | 4.8 |
|
M20077790 | |
| AGZ1.0080.00 | M08 | 8 | 6.24 | 90 | 20 | 35 | 3 | 125 | 5 | DIN10 | 20 | 6.5 |
|
M20077791 | |
| AGZ1.0100.00 | M10 | 10 | 7.89 | 100 | 22 | 39 | 3 | 15 | 6 | DIN10 | 22 | 8.3 |
|
M20077792 | |
| AGZ1.0120.00 | M12 | 9 | 8.6 | 110 | 24 | 44 | 3 | 175 | 7 | DIN10 | 24 | 9.9 |
|
M20077793 | |
| AGZ1.0160.00 | M16 | 12 | 11.6 | 110 | 27 | 44 | 3 | 2 | 8 | DIN10 | 27 | 13.6 |
|
M20077794 |
