MAS VHM-Hochleistungsfräser - ALU
Loading...
Loading...
Loading...
Loading...
Request product
Downloads to the product
Product information
- Geometry for soft materials - Typ W
- flutes 3
- Front form chamfer
- Helix angle 45°
- unequal division
- Surface polished
- Shank design HA
- Shank design HB
- Works standard
- Coating ta-C
- High Performance Cutting HPC
- For aluminium / non-ferrous metal
- For plastic
- Cooling with cutting fluid
- High Performance
- 1st Choice
- Machining direction xyz
- Slot milling
- Side milling
- Finishing
- flutes 3
- Front form chamfer
- Helix angle 45°
- unequal division
- Surface polished
- Shank design HA
- Shank design HB
- Works standard
- Coating ta-C
- High Performance Cutting HPC
- For aluminium / non-ferrous metal
- For plastic
- Cooling with cutting fluid
- High Performance
- 1st Choice
- Machining direction xyz
- Slot milling
- Side milling
- Finishing
Variants

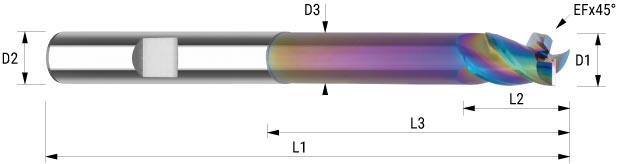

| product name | D1 | D2 | D3 | L1 | L2 | L3 | Z | Corner chamfer | shank | L4 | Suitability of material | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B.DZ4.010.00 | 1 | 4 | 0.9 | 50 | 3 | 8 | 3 | 0.05 | HA | 3 |
|
M20061892 | |
| B.DZ4.015.00 | 1,5 | 4 | 1.4 | 50 | 5 | 13 | 3 | 0.05 | HA | 5 |
|
M20061893 | |
| B.DZ4.018.00 | 1,8 | 4 | 1.7 | 50 | 5 | 13 | 3 | 0.05 | HA | 5 |
|
M20061894 | |
| B.DZ4.020.00 | 2 | 4 | 1.9 | 50 | 6 | 15 | 3 | 0.05 | HA | 6 |
|
M20061895 | |
| B.DZ4.030.00 | 3 | 6 | 2.9 | 80 | 6.5 | 20 | 3 | 0.1 | HA | 6.5 |
|
M20061896 | |
| B.DZ4.040.00 | 4 | 6 | 3.9 | 80 | 6.5 | 24 | 3 | 0.1 | HA | 6.5 |
|
M20061897 | |
| B.DZ4.040.10 | 4 | 6 | 3.9 | 80 | 6.5 | 24 | 3 | 0.1 | HB | 6.5 |
|
M20061898 | |
| B.DZ4.050.00 | 5 | 6 | 4.9 | 80 | 8 | 30 | 3 | 0.1 | HA | 8 |
|
M20061899 | |
| B.DZ4.050.10 | 5 | 6 | 4.9 | 80 | 8 | 30 | 3 | 0.1 | HB | 8 |
|
M20061900 | |
| B.DZ4.060.00 | 6 | 6 | 5.8 | 80 | 10 | 42 | 3 | 0.2 | HA | 10 |
|
M20061901 | |
| B.DZ4.060.10 | 6 | 6 | 5.8 | 80 | 10 | 42 | 3 | 0.2 | HB | 10 |
|
M20061902 | |
| B.DZ4.080.00 | 8 | 8 | 7.8 | 100 | 13 | 62 | 3 | 0.2 | HA | 13 |
|
M20061903 | |
| B.DZ4.080.10 | 8 | 8 | 7.8 | 100 | 13 | 62 | 3 | 0.2 | HB | 13 |
|
M20061904 | |
| B.DZ4.100.00 | 10 | 10 | 9.7 | 100 | 16 | 58 | 3 | 0.2 | HA | 16 |
|
M20061905 | |
| B.DZ4.100.10 | 10 | 10 | 9.7 | 100 | 16 | 58 | 3 | 0.2 | HB | 16 |
|
M20061906 | |
| B.DZ4.120.00 | 12 | 12 | 11.7 | 120 | 19 | 73 | 3 | 0.2 | HA | 19 |
|
M20061907 | |
| B.DZ4.120.10 | 12 | 12 | 11.7 | 120 | 19 | 73 | 3 | 0.2 | HB | 19 |
|
M20061908 | |
| B.DZ4.160.00 | 16 | 16 | 15.7 | 150 | 25 | 92 | 3 | 0.2 | HA | 25 |
|
M20061909 | |
| B.DZ4.160.10 | 16 | 16 | 15.7 | 150 | 25 | 92 | 3 | 0.2 | HB | 25 |
|
M20061910 | |
| B.DZ4.200.00 | 20 | 20 | 19.5 | 150 | 32 | 100 | 3 | 0.2 | HA | 32 |
|
M20061911 | |
| B.DZ4.200.10 | 20 | 20 | 19.5 | 150 | 32 | 100 | 3 | 0.2 | HB | 32 |
|
M20061912 |
