MAS solid carbide torus end mill extra long
Loading...
Loading...
Loading...
Loading...
Request product
Downloads to the product
Product information
- Geometry for normal materials - Typ N
- Flutes 2
- Front form corner radius
- Helix angle 30°
- Shank design HA
- Works standard
- Coating TIALN
- For universal processing
- High Performance
- Machining direction xyz
- Side milling
- Finishing
- Flutes 2
- Front form corner radius
- Helix angle 30°
- Shank design HA
- Works standard
- Coating TIALN
- For universal processing
- High Performance
- Machining direction xyz
- Side milling
- Finishing
Variants

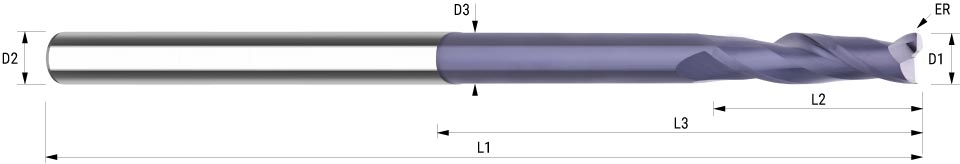

| product name | D1 | D2 | D3 | L1 | L2 | L3 | Z | RA | NL | shank | L4 | Suitability of material | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ABF.080.00 | 8 | 8 | 7.5 | 200 | 25 | 120 | 2 | 0.3 | 36 | HA | 25 |
|
M20045630 | |
| ABF.100.00 | 10 | 10 | 9.5 | 200 | 50 | 120 | 2 | 0.3 | 60 | HA | 50 |
|
M20045631 | |
| ABF.120.00 | 12 | 12 | 11.5 | 200 | 50 | 120 | 2 | 0.4 | 625 | HA | 50 |
|
M20045632 | |
| ABF.160.00 | 16 | 16 | 15.5 | 220 | 65 | 150 | 2 | 0.4 | 845 | HA | 65 |
|
M20045633 | |
| ABF.200.00 | 20 | 20 | 19.5 | 250 | 65 | 150 | 2 | 0.4 | 865 | HA | 65 |
|
M20045634 | |
| ABF.060.00 | 6 | 6 | 5.5 | 200 | 25 | 120 | 2 | 0.3 | 36 | HA | 25 |
|
M20045629 |
