MAS solid carbide roughing end mill type WF with IK
Loading...
Loading...
Loading...
Loading...
Request product
Downloads to the product
Product information
- Geometry for soft materials - Typ W
- Flutes 2
- Front form sharp-edged
- Helix angle 45°
- Surface polished
- Shank design HA
- Works standard
- Uncoated
- For aluminium / non-ferrous metal
- For plastic
- Cooling with cutting fluid
- High Performance
- Machining direction xyz
- Side milling
- Finishing
- Slot milling
- Flutes 2
- Front form sharp-edged
- Helix angle 45°
- Surface polished
- Shank design HA
- Works standard
- Uncoated
- For aluminium / non-ferrous metal
- For plastic
- Cooling with cutting fluid
- High Performance
- Machining direction xyz
- Side milling
- Finishing
- Slot milling
Variants

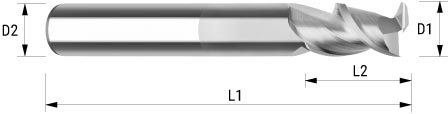

| product name | D1 | D2 | D3 | L1 | L2 | L3 | Z | NL | shank | L4 | Suitability of material | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BEH.015.00 | 1,5 | 6 | 1.4 | 57 | 3 | 6 | 2 | 4.5 | HA | 3 |
|
M20046028 | |
| BEH.020.00 | 2 | 6 | 1.92 | 57 | 6 | 95 | 2 | 7.7 | HA | 6 |
|
M20046029 | |
| BEH.025.00 | 2,5 | 6 | 2.4 | 57 | 7 | 10 | 2 | 9 | HA | 7 |
|
M20046030 | |
| BEH.030.00 | 3 | 6 | 2.9 | 57 | 7 | 10 | 2 | 9.6 | HA | 7 |
|
M20046031 | |
| BEH.040.00 | 4 | 6 | 3.8 | 57 | 8 | 15 | 2 | 10.6 | HA | 8 |
|
M20046032 | |
| BEH.050.00 | 5 | 6 | 4.75 | 57 | 10 | 16 | 2 | 14.4 | HA | 10 |
|
M20046033 | |
| BEH.060.00 | 6 | 6 | 57 | 10 | 2 | 15.1 | HA | 10 |
|
M20046034 | |||
| BEH.080.00 | 8 | 8 | 63 | 16 | 2 | 23.5 | HA | 16 |
|
M20046035 | |||
| BEH.100.00 | 10 | 10 | 72 | 19 | 2 | 28 | HA | 19 |
|
M20046036 | |||
| BEH.120.00 | 12 | 12 | 83 | 22 | 2 | 32.5 | HA | 22 |
|
M20046037 | |||
| BEH.160.00 | 16 | 16 | 92 | 26 | 2 | 40.5 | HA | 26 |
|
M20046038 | |||
| BEH.200.00 | 20 | 20 | 104 | 32 | 2 | 46 | HA | 32 |
|
M20046039 |
