MAS Solid carbide roughing end mill HPC type NF 2xD

MAS Solid carbide roughing end mill HPC type NF 2xD

Main Image Article MAS Solid carbide roughing end mill HPC type NF 2xD
Main Image Article MAS Solid carbide roughing end mill HPC type NF 2xD

Do you have any questions about the product?

You can reach us Mon-Thu between 7:30-16:45 and Friday between 07:30-14:30
Phone: +49 7152-6065-12
Request product

Downloads to the product

MAS VHM-Tools Cutting Data

Product information

- Geometry for normal materials - Typ N
- flutes 4
- Front form chamfer
- Helix angle 35°/38°
- unequal division
- Chip breaker - Typ NF
- Shank design HB
- Standard DIN 6527 long
- Coating ALTIN
- High Performance Cutting HPC
- For steel
- For cast iron
- High Performance
- Machining direction xy(z)
- Slot milling
- Side milling

Variants

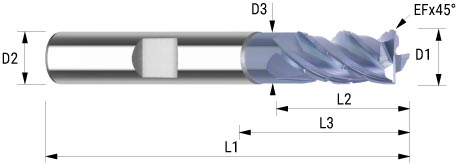

product name D1 D2 D3 L1 L2 L3 Z Corner chamfer shank L4 Suitability of material ART.-NR:
GBG.041.10 4 6 3.7 57 11 16 4 0.13 HB 11
material steel
material cast iron
M20062584
GBG.051.10 5 6 4.7 57 13 18 4 0.18 HB 13
material steel
material cast iron
M20062585
GBG.061.10 6 6 5.6 57 13 18 4 0.2 HB 13
material steel
material cast iron
M20062586
GBG.081.10 8 8 7.5 63 19 24 4 0.2 HB 19
material steel
material cast iron
M20062587
GBG.101.10 10 10 9.5 72 22 32 4 0.3 HB 22
material steel
material cast iron
M20062588
GBG.121.10 12 12 11 83 26 36 4 0.3 HB 26
material steel
material cast iron
M20062589
GBG.141.10 14 14 13 83 26 38 4 0.3 HB 26
material steel
material cast iron
M20062590
GBG.161.10 16 16 15 92 32 42 4 0.4 HB 32
material steel
material cast iron
M20062591
GBG.201.10 20 20 19 104 38 48 4 0.5 HB 38
material steel
material cast iron
M20062592
