MAS solid carbide full radius milling cutter HSC short
Loading...
Loading...
Loading...
Loading...
Request product
Downloads to the product
Product information
- Geometry for hard materials - Typ H
- Flutes 2
- Front form ballnose
- Helix angle 30°
- Shank design HA
- Works standard
- Coating naco blue
- High Speed Cutting HSC
- For hardened steel 45-65HRC
- For steel
- For cast iron
- Compressed-air processing
- High Performance
- Machining direction xyz
- For Profiling
- Flutes 2
- Front form ballnose
- Helix angle 30°
- Shank design HA
- Works standard
- Coating naco blue
- High Speed Cutting HSC
- For hardened steel 45-65HRC
- For steel
- For cast iron
- Compressed-air processing
- High Performance
- Machining direction xyz
- For Profiling
Variants

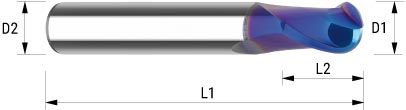

| product name | D1 | D2 | L1 | L2 | Z | R | NL | shank | L4 | Suitability of material | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EBZ.005.00 | 0,5 | 3 | 38 | 1.5 | 2 | 0.25 | 3.1 | HA | 1.5 |
|
M20046736 | |
| EBZ.006.00 | 0,6 | 3 | 38 | 1.5 | 2 | 0.3 | 3 | HA | 1.5 |
|
M20046737 | |
| EBZ.007.00 | 0,7 | 3 | 38 | 2 | 2 | 0.35 | 3.3 | HA | 2 |
|
M20046738 | |
| EBZ.008.00 | 0,8 | 3 | 38 | 2 | 2 | 0.4 | 3.4 | HA | 2 |
|
M20046739 | |
| EBZ.009.00 | 0,9 | 3 | 38 | 2.5 | 2 | 0.45 | 4.2 | HA | 2.5 |
|
M20046740 | |
| EBZ.010.00 | 1 | 3 | 50 | 2 | 2 | 0.5 | 5 | HA | 2 |
|
M20046741 | |
| EBZ.011.00 | 1,1 | 3 | 50 | 3 | 2 | 0.55 | 6 | HA | 3 |
|
M20046742 | |
| EBZ.012.00 | 1,2 | 3 | 50 | 3 | 2 | 0.6 | 6 | HA | 3 |
|
M20046743 | |
| EBZ.013.00 | 1 | 6 | 54 | 2 | 2 | 0.5 | 5 | HA | 2 |
|
M20046744 | |
| EBZ.014.00 | 1,4 | 3 | 50 | 3 | 2 | 0.7 | 6 | HA | 3 |
|
M20046745 | |
| EBZ.015.00 | 1,5 | 3 | 50 | 3 | 2 | 0.75 | 6 | HA | 3 |
|
M20046746 | |
| EBZ.016.00 | 1,6 | 3 | 50 | 4 | 2 | 0.8 | 7 | HA | 4 |
|
M20046747 | |
| EBZ.017.00 | 1,5 | 6 | 54 | 3 | 2 | 0.75 | 6 | HA | 3 |
|
M20046748 | |
| EBZ.018.00 | 1,8 | 3 | 50 | 4 | 2 | 0.9 | 6.9 | HA | 4 |
|
M20046749 | |
| EBZ.020.00 | 2 | 3 | 50 | 4 | 2 | 1 | 7 | HA | 4 |
|
M20046750 | |
| EBZ.021.00 | 2 | 6 | 54 | 4 | 2 | 1 | 7 | HA | 4 |
|
M20046751 | |
| EBZ.025.00 | 2,5 | 3 | 50 | 5 | 2 | 1.25 | 9.1 | HA | 5 |
|
M20046752 | |
| EBZ.026.00 | 2,5 | 6 | 54 | 5 | 2 | 1.25 | 10.1 | HA | 5 |
|
M20046753 | |
| EBZ.030.00 | 3 | 3 | 50 | 5 | 2 | 1.5 | 8.6 | HA | 5 |
|
M20046754 | |
| EBZ.031.00 | 3 | 6 | 54 | 5 | 2 | 1.5 | 9.9 | HA | 5 |
|
M20046755 | |
| EBZ.040.00 | 4 | 4 | 54 | 8 | 2 | 2 | 13.3 | HA | 8 |
|
M20046756 | |
| EBZ.041.00 | 4 | 6 | 54 | 8 | 2 | 2 | 16 | HA | 8 |
|
M20046757 | |
| EBZ.050.00 | 5 | 5 | 54 | 9 | 2 | 2.5 | 15.2 | HA | 9 |
|
M20046758 | |
| EBZ.051.00 | 5 | 6 | 54 | 9 | 2 | 2.5 | 16.2 | HA | 9 |
|
M20046759 | |
| EBZ.060.00 | 6 | 6 | 54 | 10 | 2 | 3 | 16 | HA | 10 |
|
M20046760 | |
| EBZ.080.00 | 8 | 8 | 58 | 12 | 2 | 4 | 25 | HA | 12 |
|
M20046761 | |
| EBZ.100.00 | 10 | 10 | 66 | 14 | 2 | 5 | 28 | HA | 14 |
|
M20046762 | |
| EBZ.120.00 | 12 | 12 | 73 | 16 | 2 | 6 | 34 | HA | 16 |
|
M20046763 | |
| EBZ.140.00 | 14 | 14 | 75 | 18 | 2 | 7 | 37 | HA | 18 |
|
M20046764 | |
| EBZ.160.00 | 16 | 16 | 82 | 22 | 2 | 8 | 41 | HA | 22 |
|
M20046765 | |
| EBZ.200.00 | 20 | 20 | 92 | 26 | 2 | 10 | 47 | HA | 26 |
|
M20046766 | |
| EBZ.004.00 | 0,4 | 3 | 38 | 1.5 | 2 | 0.2 | 2.8 | HA | 1.5 |
|
M20062199 |
