MAS solid carbide full radius milling cutter HSC long
Loading...
Loading...
Loading...
Loading...
Request product
Downloads to the product
Product information
- Geometry for materials normal to hard - Typ N-H
- Flutes 2
- Front form ballnose
- Helix angle 30°
- Shank design HB
- shank design HA - D2 < 6mm
- Works standard
- Coating TIALN
- Expiring item
- High Speed Cutting HSC
- For universal processing
- High Performance
- Machining direction xyz
- For Profiling
- Flutes 2
- Front form ballnose
- Helix angle 30°
- Shank design HB
- shank design HA - D2 < 6mm
- Works standard
- Coating TIALN
- Expiring item
- High Speed Cutting HSC
- For universal processing
- High Performance
- Machining direction xyz
- For Profiling
Variants

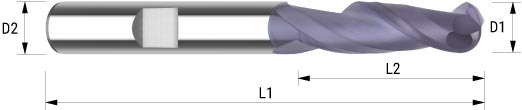

| product name | D1 | D2 | L1 | L2 | Z | R | shank | L4 | Suitability of material | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| EBB.030.00 | 3 | 3 | 60 | 20 | 2 | 1.5 | HA | 20 |
|
M20046781 | |
| EBB.040.00 | 4 | 4 | 60 | 25 | 2 | 2 | HA | 25 |
|
M20046782 | |
| EBB.050.00 | 5 | 5 | 75 | 25 | 2 | 2.5 | HA | 25 |
|
M20046783 | |
| EBB.060.00 | 6 | 6 | 75 | 30 | 2 | 3 | HB | 30 |
|
M20046784 | |
| EBB.080.00 | 8 | 8 | 100 | 45 | 2 | 4 | HB | 45 |
|
M20046785 | |
| EBB.100.00 | 10 | 10 | 100 | 45 | 2 | 5 | HB | 45 |
|
M20046786 | |
| EBB.120.00 | 12 | 12 | 100 | 45 | 2 | 6 | HB | 45 |
|
M20046787 | |
| EBB.120.02 | 12 | 12 | 150 | 65 | 2 | 6 | HB | 65 |
|
M20046788 | |
| EBB.160.00 | 16 | 16 | 100 | 45 | 2 | 8 | HB | 45 |
|
M20046789 | |
| EBB.160.02 | 16 | 16 | 150 | 65 | 2 | 8 | HB | 65 |
|
M20046790 |
