MAS solid carbide engraving cutter
Loading...
Loading...
Loading...
Loading...
Request product
Downloads to the product
Product information
- Geometry for materials normal to hard - Typ N-H
- Flutes 1
- Tip angle 60°
- Tip angle 90°
- Helix angle 0°
- Shank design HA
- Works standard
- Uncoated
- For universal processing
- High Performance
- Machining direction xy
- Flutes 1
- Tip angle 60°
- Tip angle 90°
- Helix angle 0°
- Shank design HA
- Works standard
- Uncoated
- For universal processing
- High Performance
- Machining direction xy
Variants

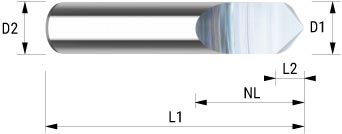

| product name | D1 | D2 | L1 | L2 | Z | NL | shank | L4 | Suitability of material | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| GDZ.020.60 | 2 | 2 | 50 | 1.7 | 1 | 3 | HA | 1.7 |
|
M20055106 | |
| GDZ.020.90 | 2 | 2 | 50 | 1 | 1 | 3 | HA | 1 |
|
M20055107 | |
| GDZ.025.60 | 2,5 | 2.5 | 50 | 2.2 | 1 | 4 | HA | 2.2 |
|
M20055108 | |
| GDZ.025.90 | 2,5 | 2.5 | 50 | 1.3 | 1 | 4 | HA | 1.3 |
|
M20055109 | |
| GDZ.030.60 | 3 | 3 | 50 | 2.6 | 1 | 4.5 | HA | 2.6 |
|
M20055110 | |
| GDZ.030.90 | 3 | 3 | 50 | 1.5 | 1 | 4.5 | HA | 1.5 |
|
M20055111 | |
| GDZ.040.60 | 4 | 4 | 50 | 3.5 | 1 | 6 | HA | 3.5 |
|
M20055112 | |
| GDZ.040.90 | 4 | 4 | 50 | 2 | 1 | 6 | HA | 2 |
|
M20055113 | |
| GDZ.050.60 | 5 | 5 | 50 | 4.3 | 1 | 7.5 | HA | 4.3 |
|
M20055114 | |
| GDZ.050.90 | 5 | 5 | 50 | 2.5 | 1 | 7.5 | HA | 2.5 |
|
M20055115 | |
| GDZ.060.60 | 6 | 6 | 50 | 5.2 | 1 | 9 | HA | 5.2 |
|
M20055116 | |
| GDZ.060.90 | 6 | 6 | 50 | 3 | 1 | 9 | HA | 3 |
|
M20055117 | |
| GDZ.080.60 | 8 | 8 | 50 | 6.9 | 1 | 12 | HA | 6.9 |
|
M20055119 | |
| GDZ.080.90 | 8 | 8 | 50 | 4 | 1 | 12 | HA | 4 |
|
M20055120 | |
| GDZ.100.60 | 10 | 10 | 60 | 8.7 | 1 | 15 | HA | 8.7 |
|
M20055121 | |
| GDZ.100.90 | 10 | 10 | 60 | 5 | 1 | 15 | HA | 5 |
|
M20055122 | |
| GDZ.120.60 | 12 | 12 | 60 | 10.4 | 1 | 18 | HA | 10.4 |
|
M20055123 | |
| GDZ.120.90 | 12 | 12 | 60 | 6 | 1 | 18 | HA | 6 |
|
M20055124 |
