MAS solid carbide end mill short
Loading...
Loading...
Loading...
Loading...
Request product
Downloads to the product
Product information
- Geometry for normal materials - Typ N
- Flutes 2
- Front form sharp-edged
- Helix angle 30°
- Shank design INOSCREW
- Coating TIALN
- For universal processing
- High Performance
- Machining direction xyz
- Side milling
- Finishing
- Slot milling
- Flutes 2
- Front form sharp-edged
- Helix angle 30°
- Shank design INOSCREW
- Coating TIALN
- For universal processing
- High Performance
- Machining direction xyz
- Side milling
- Finishing
- Slot milling
Variants

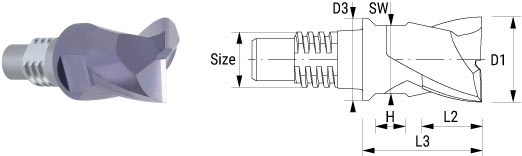

| product name | D1 | D2 | D3 | L1 | L2 | L3 | Z | size | SWxSB | shank | L4 | Suitability of material | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CH.A02.100 | 10 | 5 | 9.6 | 27 | 7 | 14 | 2 | 20 | 8x3 | SAV | 7 |
|
M20055216 | |
| CH.A02.120 | 12 | 6 | 11.6 | 32.5 | 9 | 17 | 2 | 30 | 10x4 | SAV | 9 |
|
M20055217 | |
| CH.A02.160 | 16 | 8 | 15.4 | 41 | 12 | 21 | 2 | 40 | 13x4 | SAV | 12 |
|
M20055218 | |
| CH.A02.200 | 20 | 10 | 19.2 | 50 | 15 | 26 | 2 | 50 | 16x5 | SAV | 15 |
|
M20055219 |
