MAS Solid carbide arc segment cutter CSC tangential
Loading...
Loading...
Loading...
Loading...
Request product
Downloads to the product
Product information
- Geometry for materials soft to hard - Typ W-H
- flutes 4
- Front form ballnose
- Radial profile radius
- Shape tolerance +-0,01mm
- Radius helix
- Shank design HA
- Works standard
- Uncoated
- Coating VAROCON
- Curve Segment Cutting
- For universal processing
- High Performance
- 1st Choice
- Machining direction xyz
- Curve segment cutting
- For Profiling
- flutes 4
- Front form ballnose
- Radial profile radius
- Shape tolerance +-0,01mm
- Radius helix
- Shank design HA
- Works standard
- Uncoated
- Coating VAROCON
- Curve Segment Cutting
- For universal processing
- High Performance
- 1st Choice
- Machining direction xyz
- Curve segment cutting
- For Profiling
Variants

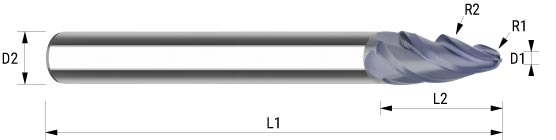

| product name | D1 | D2 | L1 | L2 | Z | shank | L4 | Suitability of material | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|
| FCC.020.00 | 2 | 8 | 70 | 24.56 | 4 | HA | 24.56 |
|
M20044823 | |
| FCC.020.09 | 2 | 8 | 70 | 24.56 | 4 | HA | 24.56 |
|
M20044824 | |
| FCC.040.00 | 4 | 12 | 83 | 28.23 | 4 | HA | 28.23 |
|
M20044825 | |
| FCC.040.09 | 4 | 12 | 83 | 28.23 | 4 | HA | 28.23 |
|
M20044826 | |
| FCC.060.00 | 6 | 16 | 105 | 30.29 | 4 | HA | 30.29 |
|
M20044827 | |
| FCC.060.09 | 6 | 16 | 105 | 30.29 | 4 | HA | 30.29 |
|
M20044828 |
