MAS solid carbide torus roughing end mill type HR
Loading...
Loading...
Loading...
Loading...
Request product
Downloads to the product
Product information
- Geometry for normal materials - Typ N
- flutes 4
- Front form chamfer
- Helix angle 35°/38°
- unequal division
- Shank design HB
- Standard DIN 6527 long
- Coating VAROCON
- High Performance Cutting HPC
- For rost and acid constant steel
- Cooling with cutting fluid
- High Performance
- Machining direction xyz
- Slot milling
- Side milling
- Finishing
- flutes 4
- Front form chamfer
- Helix angle 35°/38°
- unequal division
- Shank design HB
- Standard DIN 6527 long
- Coating VAROCON
- High Performance Cutting HPC
- For rost and acid constant steel
- Cooling with cutting fluid
- High Performance
- Machining direction xyz
- Slot milling
- Side milling
- Finishing
Variants

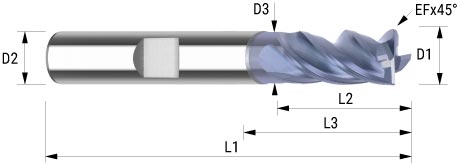

| product name | D1 | D2 | D3 | L1 | L2 | L3 | Z | Corner chamfer | shank | L4 | Suitability of material | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CGG.041.10 | 4 | 6 | 3.7 | 55 | 12 | 16 | 4 | 0.13 | HB | 12 |
|
M20062162 | |
| CGG.051.10 | 5 | 6 | 4.7 | 57 | 13 | 18 | 4 | 0.2 | HB | 13 |
|
M20062163 | |
| CGG.061.10 | 6 | 6 | 5.6 | 57 | 13 | 18 | 4 | 0.2 | HB | 13 |
|
M20062164 | |
| CGG.081.10 | 8 | 8 | 7.5 | 63 | 16 | 24 | 4 | 0.2 | HB | 16 |
|
M20062165 | |
| CGG.101.10 | 10 | 10 | 9.5 | 72 | 22 | 32 | 4 | 0.2 | HB | 22 |
|
M20062166 | |
| CGG.121.10 | 12 | 12 | 11 | 83 | 26 | 36 | 4 | 0.3 | HB | 26 |
|
M20062167 | |
| CGG.161.10 | 16 | 16 | 15 | 92 | 32 | 44 | 4 | 0.3 | HB | 32 |
|
M20062168 | |
| CGG.201.10 | 20 | 20 | 19 | 104 | 38 | 48 | 4 | 0.4 | HB | 38 |
|
M20062169 | |
| CGG.251.10 | 25 | 25 | 24 | 121 | 45 | 55 | 4 | 0.5 | HB | 45 |
|
M20062170 |
