MAS Solid carbide roughing end mill type WR with IK
Loading...
Loading...
Loading...
Loading...
Request product
Downloads to the product
Product information
- Geometry for soft materials - Typ W
- flutes 3
- Front form chamfer
- Helix angle 40°
- unequal division
- Internal cooling with radial outlet
- Roughing profile - Typ WR
- Shank design HA
- Works standard
- Coating ZrN
- Multi Task Cutting MTC
- For aluminium / non-ferrous metal
- Cooling with cutting fluid
- High Performance
- Machining direction xy
- Slot milling
- Side milling
- flutes 3
- Front form chamfer
- Helix angle 40°
- unequal division
- Internal cooling with radial outlet
- Roughing profile - Typ WR
- Shank design HA
- Works standard
- Coating ZrN
- Multi Task Cutting MTC
- For aluminium / non-ferrous metal
- Cooling with cutting fluid
- High Performance
- Machining direction xy
- Slot milling
- Side milling
Variants

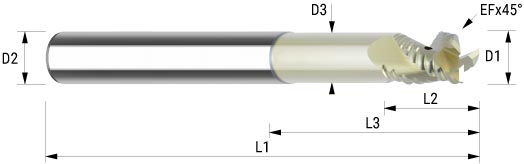

| product name | D1 | D2 | D3 | L1 | L2 | L3 | Z | Corner chamfer | NL | shank | L4 | Suitability of material | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BEC.060.00 | 6 | 6 | 5.5 | 63 | 10 | 24 | 3 | 0.3 | 14 | HA | 10 |
|
M20046011 | |
| BEC.080.00 | 8 | 8 | 7.5 | 72 | 12 | 29 | 3 | 0.4 | 17 | HA | 12 |
|
M20046012 | |
| BEC.100.00 | 10 | 10 | 9.5 | 83 | 14 | 35 | 3 | 0.5 | 20.5 | HA | 14 |
|
M20046013 | |
| BEC.120.00 | 12 | 12 | 11.4 | 100 | 16 | 50 | 3 | 0.6 | 25 | HA | 16 |
|
M20046014 | |
| BEC.160.00 | 16 | 16 | 15.2 | 115 | 20 | 63 | 3 | 0.8 | 29.5 | HA | 20 |
|
M20046015 | |
| BEC.200.00 | 20 | 20 | 19 | 125 | 20 | 70 | 3 | 1 | 33 | HA | 20 |
|
M20046016 | |
| BEC.250.00 | 25 | 25 | 23.75 | 135 | 25 | 75 | 3 | 1.25 | 39 | HA | 25 |
|
M20046017 |
