MAS solid carbide roughing end mill type NR
Loading...
Loading...
Loading...
Loading...
Request product
Downloads to the product
Product information
- Geometry for normal materials - Typ N
- flutes 3
- Front form sharp-edged
- Helix angle 45°
- Shank design HA
- Works standard
- Uncoated
- Coating TIALN
- For universal processing
- High Performance
- Machining direction xyz
- Side milling
- Finishing
- Slot milling
- flutes 3
- Front form sharp-edged
- Helix angle 45°
- Shank design HA
- Works standard
- Uncoated
- Coating TIALN
- For universal processing
- High Performance
- Machining direction xyz
- Side milling
- Finishing
- Slot milling
Variants

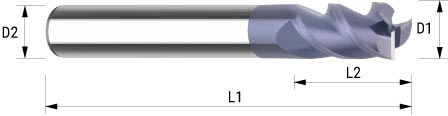

| product name | D1 | D2 | L1 | L2 | Z | NL | shank | L4 | Suitability of material | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CEA.010.00 | 1 | 6 | 57 | 4 | 3 | 4.9 | HA | 4 |
|
M20046488 | |
| CEA.015.00 | 1,5 | 6 | 57 | 4 | 3 | 5.3 | HA | 4 |
|
M20046489 | |
| CEA.020.00 | 2 | 6 | 57 | 6 | 3 | 8.2 | HA | 6 |
|
M20046490 | |
| CEA.020.09 | 2 | 6 | 57 | 6 | 3 | 8.2 | HA | 6 |
|
M20046491 | |
| CEA.025.00 | 2,5 | 6 | 57 | 6 | 3 | 8.5 | HA | 6 |
|
M20046492 | |
| CEA.025.09 | 2,5 | 6 | 57 | 6 | 3 | 8.5 | HA | 6 |
|
M20046493 | |
| CEA.030.00 | 3 | 6 | 57 | 7 | 3 | 9.6 | HA | 7 |
|
M20046494 | |
| CEA.030.09 | 3 | 6 | 57 | 7 | 3 | 9.6 | HA | 7 |
|
M20046495 | |
| CEA.035.00 | 3,5 | 6 | 57 | 8 | 3 | 10.6 | HA | 8 |
|
M20046496 | |
| CEA.040.00 | 4 | 6 | 57 | 8 | 3 | 11.5 | HA | 8 |
|
M20046497 | |
| CEA.040.09 | 4 | 6 | 57 | 8 | 3 | 11.5 | HA | 8 |
|
M20046498 | |
| CEA.045.00 | 4,5 | 6 | 57 | 10 | 3 | 14.1 | HA | 10 |
|
M20046499 | |
| CEA.045.09 | 4,5 | 6 | 57 | 10 | 3 | 14.1 | HA | 10 |
|
M20046500 | |
| CEA.050.00 | 5 | 6 | 57 | 10 | 3 | 13.6 | HA | 10 |
|
M20046501 | |
| CEA.050.09 | 5 | 6 | 57 | 10 | 3 | 13.6 | HA | 10 |
|
M20046502 | |
| CEA.055.00 | 5,5 | 6 | 57 | 10 | 3 | 13.2 | HA | 10 |
|
M20046503 | |
| CEA.060.00 | 6 | 6 | 57 | 10 | 3 | 12.8 | HA | 10 |
|
M20046504 | |
| CEA.060.09 | 6 | 6 | 57 | 10 | 3 | 12.8 | HA | 10 |
|
M20046505 | |
| CEA.065.00 | 6,5 | 8 | 63 | 16 | 3 | 22.5 | HA | 16 |
|
M20046506 | |
| CEA.065.09 | 6,5 | 8 | 63 | 16 | 3 | 22.5 | HA | 16 |
|
M20046507 | |
| CEA.070.00 | 7 | 8 | 63 | 16 | 3 | 22 | HA | 16 |
|
M20046508 | |
| CEA.070.09 | 7 | 8 | 63 | 16 | 3 | 22 | HA | 16 |
|
M20046509 | |
| CEA.075.00 | 7,5 | 8 | 63 | 19 | 3 | 24.5 | HA | 19 |
|
M20046510 | |
| CEA.075.09 | 7,5 | 8 | 63 | 19 | 3 | 24.5 | HA | 19 |
|
M20046511 | |
| CEA.080.00 | 8 | 8 | 63 | 19 | 3 | 21 | HA | 19 |
|
M20046512 | |
| CEA.080.09 | 8 | 8 | 63 | 19 | 3 | 21 | HA | 19 |
|
M20046513 | |
| CEA.090.00 | 9 | 10 | 72 | 19 | 3 | 26 | HA | 19 |
|
M20046514 | |
| CEA.100.00 | 10 | 10 | 72 | 19 | 3 | 24.5 | HA | 19 |
|
M20046515 | |
| CEA.100.09 | 10 | 10 | 72 | 19 | 3 | 24.5 | HA | 19 |
|
M20046516 | |
| CEA.120.00 | 12 | 12 | 83 | 22 | 3 | 28.5 | HA | 22 |
|
M20046517 | |
| CEA.120.09 | 12 | 12 | 83 | 22 | 3 | 28.5 | HA | 22 |
|
M20046518 | |
| CEA.140.00 | 14 | 14 | 83 | 22 | 3 | 29 | HA | 22 |
|
M20046519 | |
| CEA.140.09 | 14 | 14 | 83 | 22 | 3 | 29 | HA | 22 |
|
M20046520 | |
| CEA.160.00 | 16 | 16 | 92 | 26 | 3 | 34 | HA | 26 |
|
M20046521 | |
| CEA.160.09 | 16 | 16 | 92 | 26 | 3 | 34 | HA | 26 |
|
M20046522 | |
| CEA.200.00 | 20 | 20 | 104 | 32 | 3 | 42 | HA | 32 |
|
M20046523 |
