MAS Solid carbide roughing end mill type NR

Do you have any questions about the product?

You can reach us Mon-Thu between 7:30-16:45 and Friday between 07:30-14:30
Phone: +49 7152-6065-12

Request product

Company

Name

E-mail

Phone number

Your message

Downloads to the product

MAS VHM-Tools Cutting Data

Product information

- Geometry for normal materials - Typ N
- Flutes 3-4
- Front form chamfer
- Helix angle 30°
- Roughing profile - Typ NR
- Shank design HA
- Shank design HB
- Works standard
- Length of design - long
- Coating TIALN
- Multi Task Cutting MTC
- For universal processing
- General Purpose
- Machining direction xy
- Slot milling
- Side milling

Variants

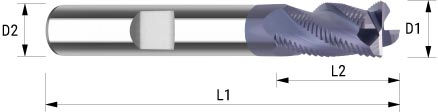

product name	D1	D2	L1	L2	Z	Corner chamfer	shank	L4	ART.-NR:
IEC.103.00	3	6	57	6	3	0.1	HA	6	M20044049
IEC.103.10	3	6	57	6	3	0.1	HB	6	M20044050
IEC.104.00	4	6	57	8	3	0.13	HA	8	M20044051
IEC.104.10	4	6	57	8	3	0.13	HB	8	M20044052
IEC.105.00	5	6	57	10	3	0.18	HA	10	M20044053
IEC.105.10	5	6	57	10	3	0.18	HB	10	M20044054
IEC.106.00	6	6	57	16	3	0.2	HA	16	M20044055
IEC.106.10	6	6	57	16	3	0.2	HB	16	M20044056
IEC.108.00	8	8	63	16	3	0.2	HA	16	M20044057
IEC.108.10	8	8	63	16	3	0.2	HB	16	M20044058
IEC.110.00	10	10	72	22	4	0.3	HA	22	M20044059
IEC.110.10	10	10	72	22	4	0.3	HB	22	M20044060
IEC.112.00	12	12	83	26	4	0.3	HA	26	M20044061
IEC.112.10	12	12	83	26	4	0.3	HB	26	M20044062
IEC.116.00	16	16	92	32	4	0.4	HA	32	M20044063
IEC.116.10	16	16	92	32	4	0.4	HB	32	M20044064
IEC.120.00	20	20	104	38	4	0.5	HA	38	M20044065
IEC.120.10	20	20	104	38	4	0.5	HB	38	M20044066
