MAS solid carbide pilot drill 120°

Do you have any questions about the product?

You can reach us Mon-Thu between 7:30-16:45 and Friday between 07:30-14:30
Phone: +49 7152-6065-12

Request product

Company

Name

E-mail

Phone number

Your message

Downloads to the product

MAS VHM-Tools Cutting Data

Product information

- Geometry for materials soft to hard - Typ W-H
- Flutes 2
- Tip angle 120°
- Without coolant hole
- Helix angle 30°
- Shank design HB
- shank design HA - D2 < 6mm
- Works standard
- Uncoated
- Coating TIALN
- For universal processing
- High Performance
- Machining direction z

Variants

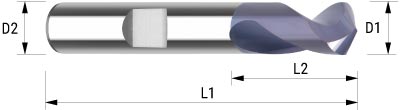

product name	D1	D2	L1	L2	Z	shank	L4	ART.-NR:
HFZ.030.00	3	3	38	8	2	HA	8	M20051812
HFZ.030.09	3	3	38	8	2	HA	8	M20051813
HFZ.040.00	4	4	50	10	2	HA	10	M20051814
HFZ.040.09	4	4	50	10	2	HA	10	M20051815
HFZ.050.00	5	5	50	13	2	HA	13	M20051816
HFZ.050.09	5	5	50	13	2	HA	13	M20051817
HFZ.060.00	6	6	57	13	2	HB	13	M20051818
HFZ.060.09	6	6	57	13	2	HB	13	M20051819
HFZ.080.00	8	8	63	19	2	HB	19	M20051820
HFZ.080.09	8	8	63	19	2	HB	19	M20051821
HFZ.100.00	10	10	66	20	2	HB	20	M20051822
HFZ.100.09	10	10	66	20	2	HB	20	M20051823
HFZ.120.00	12	12	73	22	2	HB	22	M20051824
HFZ.120.09	12	12	73	22	2	HB	22	M20051825
HFZ.160.00	16	16	82	24	2	HB	24	M20051826
HFZ.160.09	16	16	82	24	2	HB	24	M20051827
HFZ.200.00	20	20	92	30	2	HB	30	M20051828
HFZ.200.09	20	20	92	30	2	HB	30	M20051829
