MAS Solid carbide mini full radius milling cutter HSC

MAS Solid carbide mini full radius milling cutter HSC

Main Image Article MAS Solid carbide mini full radius milling cutter HSC
Main Image Article MAS Solid carbide mini full radius milling cutter HSC

Do you have any questions about the product?

You can reach us Mon-Thu between 7:30-16:45 and Friday between 07:30-14:30
Phone: +49 7152-6065-12
Request product

Downloads to the product

MAS VHM-Tools Cutting Data

Product information

- Geometry for hard materials - Typ H
- Flutes 2
- Diameter tolerance -0,015
- Rotation accuracy 0,005mm
- Front form ballnose
- Radius tolerance +/-0,003
- Helix angle 30°
- Shank design HA
- Works standard
- Coating naco blue
- High Speed Cutting HSC
- For hardened steel 45-65HRC
- For steel
- For cast iron
- High Performance
- Machining direction xyz
- For Profiling

Variants

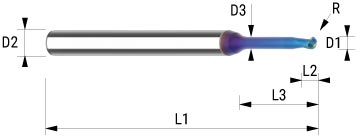

product name D1 D2 D3 L1 L2 L3 Z R NL shank L4 Suitability of material ART.-NR:
EEI.020.10 0,2 6 0.18 55 0.25 6 2 0.1 1 HA 0.25
material steel
material cast iron
material hardened steel
M20047677
EEI.020.11 0,2 6 0.18 55 0.25 1 2 0.1 0.7 HA 0.25
material steel
material cast iron
material hardened steel
M20047678
EEI.020.12 0,2 6 0.18 55 0.25 15 2 0.1 0.7 HA 0.25
material steel
material cast iron
material hardened steel
M20047679
EEI.020.13 0,2 6 0.18 55 0.25 2 2 0.1 0.7 HA 0.25
material steel
material cast iron
material hardened steel
M20047680
EEI.030.10 0,3 6 0.28 55 0.25 1 2 0.15 0.9 HA 0.25
material steel
material cast iron
material hardened steel
M20047681
EEI.030.11 0,3 6 0.28 55 0.25 2 2 0.15 0.9 HA 0.25
material steel
material cast iron
material hardened steel
M20047682
EEI.031.12 0,3 6 0.28 55 0.25 4 2 0.15 0.9 HA 0.25
material steel
material cast iron
material hardened steel
M20047683
EEI.031.13 0,4 6 0.38 55 0.3 1 2 0.2 0.9 HA 0.3
material steel
material cast iron
material hardened steel
M20047684
EEI.040.10 0,4 6 0.38 55 0.3 2 2 0.2 0.9 HA 0.3
material steel
material cast iron
material hardened steel
M20047685
EEI.041.10 0,4 6 0.38 55 0.3 3 2 0.2 0.9 HA 0.3
material steel
material cast iron
material hardened steel
M20047686
EEI.041.11 0,4 6 0.38 55 0.3 5 2 0.2 0.9 HA 0.3
material steel
material cast iron
material hardened steel
M20047687
EEI.041.12 0,4 6 0.38 55 0.3 7 2 0.2 0.9 HA 0.3
material steel
material cast iron
material hardened steel
M20047688
EEI.050.10 0,5 6 0.48 55 0.4 2 2 0.25 1.2 HA 0.4
material steel
material cast iron
material hardened steel
M20047689
EEI.050.11 0,5 6 0.48 55 0.4 4 2 0.25 1.2 HA 0.4
material steel
material cast iron
material hardened steel
M20047690
EEI.050.12 0,5 6 0.48 55 0.4 45 2 0.25 1.2 HA 0.4
material steel
material cast iron
material hardened steel
M20047691
EEI.050.13 0,5 6 0.48 55 0.4 65 2 0.25 1.2 HA 0.4
material steel
material cast iron
material hardened steel
M20047692
EEI.050.14 0,5 6 0.48 55 0.4 85 2 0.25 1.2 HA 0.4
material steel
material cast iron
material hardened steel
M20047693
EEI.050.15 0,5 6 0.48 55 0.4 10 2 0.25 1.2 HA 0.4
material steel
material cast iron
material hardened steel
M20047694
EEI.051.10 0,5 6 0.48 55 0.4 25 2 0.25 1.2 HA 0.4
material steel
material cast iron
material hardened steel
M20047695
EEI.051.11 0,5 6 0.48 55 0.4 35 2 0.25 1.2 HA 0.4
material steel
material cast iron
material hardened steel
M20047696
EEI.051.12 0,5 6 0.48 55 0.4 6 2 0.25 1.2 HA 0.4
material steel
material cast iron
material hardened steel
M20047697
EEI.060.10 0,6 6 0.58 55 0.5 2 2 0.3 1.4 HA 0.5
material steel
material cast iron
material hardened steel
M20047698
EEI.060.11 0,6 6 0.58 55 0.5 4 2 0.3 1.4 HA 0.5
material steel
material cast iron
material hardened steel
M20047699
EEI.060.14 0,6 6 0.58 65 0.5 85 2 0.3 1.4 HA 0.5
material steel
material cast iron
material hardened steel
M20047700
EEI.060.15 0,6 6 0.58 55 0.5 10 2 0.3 1.4 HA 0.5
material steel
material cast iron
material hardened steel
M20047701
EEI.060.16 0,6 6 0.58 65 0.5 115 2 0.3 1.4 HA 0.5
material steel
material cast iron
material hardened steel
M20047702
EEI.061.09 0,6 6 0.58 55 0.5 25 2 0.3 1.4 HA 0.5
material steel
material cast iron
material hardened steel
M20047703
EEI.061.10 0,6 6 0.58 55 0.5 35 2 0.3 1.4 HA 0.5
material steel
material cast iron
material hardened steel
M20047704
EEI.061.11 0,6 6 0.58 55 0.5 45 2 0.3 1.4 HA 0.5
material steel
material cast iron
material hardened steel
M20047705
EEI.061.12 0,6 6 0.58 55 0.5 65 2 0.3 1.4 HA 0.5
material steel
material cast iron
material hardened steel
M20047706
EEI.080.10 0,8 6 0.77 55 0.6 4 2 0.4 1.6 HA 0.6
material steel
material cast iron
material hardened steel
M20047707
EEI.080.11 0,8 6 0.77 55 0.6 6 2 0.4 1.6 HA 0.6
material steel
material cast iron
material hardened steel
M20047708
EEI.080.13 0,8 6 0.77 55 0.6 10 2 0.4 1.6 HA 0.6
material steel
material cast iron
material hardened steel
M20047709
EEI.080.14 0,8 6 0.77 65 0.6 12 2 0.4 1.6 HA 0.6
material steel
material cast iron
material hardened steel
M20047710
EEI.080.15 0,8 6 0.77 65 0.6 14 2 0.4 1.6 HA 0.6
material steel
material cast iron
material hardened steel
M20047711
EEI.080.16 0,8 6 0.77 65 0.6 16 2 0.4 1.6 HA 0.6
material steel
material cast iron
material hardened steel
M20047712
EEI.081.10 0,8 6 0.77 55 0.6 5 2 0.4 1.6 HA 0.6
material steel
material cast iron
material hardened steel
M20047713
EEI.100.02 1 4 0.95 54 0.8 4 2 0.5 2.5 HA 0.8
material steel
material cast iron
material hardened steel
M20047714
EEI.100.04 1 4 0.95 54 0.8 6 2 0.5 2.5 HA 0.8
material steel
material cast iron
material hardened steel
M20047715
EEI.100.06 1 4 0.95 54 0.8 8 2 0.5 2.5 HA 0.8
material steel
material cast iron
material hardened steel
M20047716
EEI.100.10 1 6 0.95 55 0.8 4 2 0.5 2.5 HA 0.8
material steel
material cast iron
material hardened steel
M20047717
EEI.100.11 1 6 0.95 55 0.8 6 2 0.5 2.5 HA 0.8
material steel
material cast iron
material hardened steel
M20047718
EEI.100.12 1 6 0.95 55 0.8 8 2 0.5 2.5 HA 0.8
material steel
material cast iron
material hardened steel
M20047719
EEI.100.13 1 6 0.95 65 0.8 10 2 0.5 2.5 HA 0.8
material steel
material cast iron
material hardened steel
M20047720
EEI.100.14 1 6 0.95 65 0.8 12 2 0.5 2.5 HA 0.8
material steel
material cast iron
material hardened steel
M20047721
EEI.100.15 1 6 0.95 65 0.8 15 2 0.5 2.5 HA 0.8
material steel
material cast iron
material hardened steel
M20047722
EEI.100.19 1,2 6 1.15 55 1 3 2 0.6 2.7 HA 1
material steel
material cast iron
material hardened steel
M20047723
EEI.101.10 1 6 0.95 65 0.8 5 2 0.5 2.5 HA 0.8
material steel
material cast iron
material hardened steel
M20047724
EEI.101.14 1 6 0.95 65 0.8 14 2 0.5 2.5 HA 0.8
material steel
material cast iron
material hardened steel
M20047725
EEI.101.15 1 6 0.95 65 0.8 16 2 0.5 2.5 HA 0.8
material steel
material cast iron
material hardened steel
M20047726
EEI.121.15 1,2 6 1.15 65 1 18 2 0.6 2.7 HA 1
material steel
material cast iron
material hardened steel
M20047727
EEI.140.10 1,4 6 1.35 55 1.2 4 2 0.7 2.8 HA 1.2
material steel
material cast iron
material hardened steel
M20047728
EEI.140.11 1,4 6 1.35 55 1.2 6 2 0.7 2.8 HA 1.2
material steel
material cast iron
material hardened steel
M20047729
EEI.140.12 1,4 6 1.35 55 1.2 8 2 0.7 2.8 HA 1.2
material steel
material cast iron
material hardened steel
M20047730
EEI.140.13 1,4 6 1.35 55 1.2 10 2 0.7 2.8 HA 1.2
material steel
material cast iron
material hardened steel
M20047731
EEI.140.14 1,4 6 1.35 65 1.2 12 2 0.7 2.8 HA 1.2
material steel
material cast iron
material hardened steel
M20047732
EEI.140.15 1,4 6 1.35 65 1.2 15 2 0.7 2.8 HA 1.2
material steel
material cast iron
material hardened steel
M20047733
EEI.140.16 1,4 6 1.35 65 1.2 20 2 0.7 2.8 HA 1.2
material steel
material cast iron
material hardened steel
M20047734
EEI.150.10 1,5 6 1.44 55 1.2 6 2 0.75 2.8 HA 1.2
material steel
material cast iron
material hardened steel
M20047735
EEI.150.11 1,5 6 1.44 55 1.2 8 2 0.75 2.8 HA 1.2
material steel
material cast iron
material hardened steel
M20047736
EEI.150.12 1,5 6 1.44 65 1.2 10 2 0.75 2.8 HA 1.2
material steel
material cast iron
material hardened steel
M20047737
EEI.150.14 1,5 6 1.44 65 1.2 15 2 0.75 2.8 HA 1.2
material steel
material cast iron
material hardened steel
M20047738
EEI.150.15 1,5 6 1.44 65 1.2 20 2 0.75 2.8 HA 1.2
material steel
material cast iron
material hardened steel
M20047739
EEI.160.10 1,6 6 1.55 55 1.5 6 2 0.8 3.1 HA 1.5
material steel
material cast iron
material hardened steel
M20047740
EEI.160.11 1,6 6 1.55 55 1.5 8 2 0.8 3.1 HA 1.5
material steel
material cast iron
material hardened steel
M20047741
EEI.160.12 1,6 6 1.55 65 1.5 10 2 0.8 3.1 HA 1.5
material steel
material cast iron
material hardened steel
M20047742
EEI.160.13 1,6 6 1.55 65 1.5 12 2 0.8 3.1 HA 1.5
material steel
material cast iron
material hardened steel
M20047743
EEI.160.14 1,6 6 1.55 65 1.5 16 2 0.8 3.1 HA 1.5
material steel
material cast iron
material hardened steel
M20047744
EEI.160.15 1,6 6 1.55 65 1.5 20 2 0.8 3.1 HA 1.5
material steel
material cast iron
material hardened steel
M20047745
EEI.180.10 1,8 6 1.72 55 1.5 6 2 0.9 3.3 HA 1.5
material steel
material cast iron
material hardened steel
M20047746
EEI.180.11 1,8 6 1.72 55 1.5 8 2 0.9 3.3 HA 1.5
material steel
material cast iron
material hardened steel
M20047747
EEI.180.12 1,8 6 1.72 65 1.5 12 2 0.9 3.3 HA 1.5
material steel
material cast iron
material hardened steel
M20047748
EEI.180.13 1,8 6 1.72 65 1.5 16 2 0.9 3.3 HA 1.5
material steel
material cast iron
material hardened steel
M20047749
EEI.180.14 1,8 6 1.72 65 1.5 20 2 0.9 3.3 HA 1.5
material steel
material cast iron
material hardened steel
M20047750
EEI.200.08 2 4 1.92 54 1.5 12 2 1 3.1 HA 1.5
material steel
material cast iron
material hardened steel
M20047751
EEI.200.10 2 6 1.92 55 1.5 6 2 1 3.1 HA 1.5
material steel
material cast iron
material hardened steel
M20047752
EEI.200.11 2 6 1.92 55 1.5 8 2 1 3.1 HA 1.5
material steel
material cast iron
material hardened steel
M20047753
EEI.200.12 2 6 1.92 65 1.5 10 2 1 3.1 HA 1.5
material steel
material cast iron
material hardened steel
M20047754
EEI.200.13 2 6 1.92 65 1.5 12 2 1 3.1 HA 1.5
material steel
material cast iron
material hardened steel
M20047755
EEI.200.14 2 6 1.92 65 1.5 15 2 1 3.1 HA 1.5
material steel
material cast iron
material hardened steel
M20047756
EEI.200.15 2 6 1.92 65 1.5 20 2 1 3.1 HA 1.5
material steel
material cast iron
material hardened steel
M20047757
EEI.250.10 2,5 6 2.4 55 2 8 2 1.25 5.7 HA 2
material steel
material cast iron
material hardened steel
M20047758
EEI.250.11 2,5 6 2.4 65 2 12 2 1.25 5.7 HA 2
material steel
material cast iron
material hardened steel
M20047759
EEI.250.12 2,5 6 2.4 65 2 16 2 1.25 5.7 HA 2
material steel
material cast iron
material hardened steel
M20047760
EEI.250.13 2,5 6 2.4 65 2 20 2 1.25 5.7 HA 2
material steel
material cast iron
material hardened steel
M20047761
EEI.250.14 2,5 6 2.4 70 2 23 2 1.25 5.7 HA 2
material steel
material cast iron
material hardened steel
M20047762
EEI.250.15 2,5 6 2.4 70 2 25 2 1.25 5.7 HA 2
material steel
material cast iron
material hardened steel
M20047763
EEI.300.10 3 6 2.9 55 2.5 5 2 1.5 10 HA 2.5
material steel
material cast iron
material hardened steel
M20047764
EEI.300.11 3 6 2.9 65 2.5 10 2 1.5 7.1 HA 2.5
material steel
material cast iron
material hardened steel
M20047765
EEI.300.12 3 6 2.9 65 2.5 15 2 1.5 7.1 HA 2.5
material steel
material cast iron
material hardened steel
M20047766
EEI.300.13 3 6 2.9 65 2.5 20 2 1.5 7.1 HA 2.5
material steel
material cast iron
material hardened steel
M20047767
EEI.300.15 3 6 2.9 75 2.5 30 2 1.5 7.1 HA 2.5
material steel
material cast iron
material hardened steel
M20047768
EEI.301.09 3 6 2.9 55 2.5 6 2 1.5 8.2 HA 2.5
material steel
material cast iron
material hardened steel
M20047769
EEI.301.10 3 6 2.9 55 2.5 8 2 1.5 7.1 HA 2.5
material steel
material cast iron
material hardened steel
M20047770
EEI.301.11 3 6 2.9 55 2.5 12 2 1.5 7.1 HA 2.5
material steel
material cast iron
material hardened steel
M20047771
EEI.301.12 3 6 2.9 55 2.5 16 2 1.5 7.1 HA 2.5
material steel
material cast iron
material hardened steel
M20047772
EEI.400.10 4 6 3.9 65 3.2 10 2 2 9.1 HA 3.2
material steel
material cast iron
material hardened steel
M20047773
EEI.400.11 4 6 3.9 65 3.2 15 2 2 9.1 HA 3.2
material steel
material cast iron
material hardened steel
M20047774
EEI.400.12 4 6 3.9 65 3.2 20 2 2 9.1 HA 3.2
material steel
material cast iron
material hardened steel
M20047775
EEI.400.13 4 6 3.9 70 3.2 25 2 2 9.1 HA 3.2
material steel
material cast iron
material hardened steel
M20047776
EEI.401.14 4 6 3.9 75 3.2 35 2 2 9.1 HA 3.2
material steel
material cast iron
material hardened steel
M20047777
EEI.500.11 5 6 4.9 65 4 15 2 2.5 11.3 HA 4
material steel
material cast iron
material hardened steel
M20047778
EEI.500.12 5 6 4.9 65 4 20 2 2.5 11.3 HA 4
material steel
material cast iron
material hardened steel
M20047779
EEI.501.12 5 6 4.9 75 4 18 2 2.5 11.3 HA 4
material steel
material cast iron
material hardened steel
M20047780
EEI.600.10 6 6 5.9 65 5 10 2 3 14 HA 5
material steel
material cast iron
material hardened steel
M20047781
EEI.600.11 6 6 5.9 65 5 15 2 3 14 HA 5
material steel
material cast iron
material hardened steel
M20047782
EEI.600.12 6 6 5.9 65 5 20 2 3 14 HA 5
material steel
material cast iron
material hardened steel
M20047783
EEI.600.13 6 6 5.9 70 5 25 2 3 14 HA 5
material steel
material cast iron
material hardened steel
M20047784
EEI.600.14 6 6 5.9 75 5 30 2 3 14 HA 5
material steel
material cast iron
material hardened steel
M20047785
EEI.600.15 6 6 5.9 90 5 40 2 3 14 HA 5
material steel
material cast iron
material hardened steel
M20047786
EEI.601.11 6 6 5.9 65 5 18 2 3 14 HA 5
material steel
material cast iron
material hardened steel
M20047787

Not the right product?

Back to overview
