MAS solid carbide finishing cutter
Loading...
Loading...
Loading...
Loading...
Request product
Downloads to the product
Product information
- Geometry for materials normal to hard - Typ N-H
- Flutes 5-6
- Front form chamfer
- Helix angle 40°/42°
- unequal division
- Shank design HA
- Standard DIN 6527 long
- Coating ALTIN
- For universal processing
- High Performance
- 1st Choice
- Machining direction xy
- Finishing
- Side milling
- Flutes 5-6
- Front form chamfer
- Helix angle 40°/42°
- unequal division
- Shank design HA
- Standard DIN 6527 long
- Coating ALTIN
- For universal processing
- High Performance
- 1st Choice
- Machining direction xy
- Finishing
- Side milling
Variants

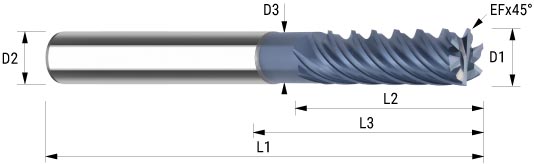

| product name | D1 | D2 | L1 | L2 | Z | Corner chamfer | shank | L4 | Suitability of material | D3 | L3 | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GCF.100.00 | 10 | 10 | 72 | 22 | 6 | 0.1 | HA | 22 |
|
M10046414 | |||
| GCF.160.00 | 16 | 16 | 92 | 32 | 6 | 0.2 | HA | 32 |
|
M10046431 | |||
| GCF.080.00 | 8 | 8 | 63 | 19 | 6 | 0.1 | HA | 19 |
|
M10046509 | |||
| GCF.060.00 | 6 | 6 | 57 | 13 | 6 | 0.1 | HA | 13 |
|
M10046510 | |||
| GCF.030.00 | 3 | 6 | 57 | 8 | 5 | 0.05 | HA | 8 |
|
M20048781 | |||
| GCF.040.00 | 4 | 6 | 57 | 8 | 6 | 0.1 | HA | 8 |
|
M20048782 | |||
| GCF.050.00 | 5 | 6 | 57 | 10 | 6 | 0.1 | HA | 10 |
|
M20048783 | |||
| GCF.061.00 | 6 | 6 | 65 | 22 | 6 | 0.1 | HA | 22 |
|
5.5 | 29 | M20048784 | |
| GCF.081.00 | 8 | 8 | 80 | 28 | 6 | 0.1 | HA | 28 |
|
7.5 | 44 | M20048785 | |
| GCF.101.00 | 10 | 10 | 100 | 32 | 6 | 0.1 | HA | 32 |
|
9.5 | 60 | M20048786 | |
| GCF.120.00 | 12 | 12 | 83 | 26 | 6 | 0.1 | HA | 26 |
|
M20048787 | |||
| GCF.121.00 | 12 | 12 | 100 | 40 | 6 | 0.1 | HA | 40 |
|
11.5 | 55 | M20048788 | |
| GCF.161.00 | 16 | 16 | 115 | 50 | 6 | 0.2 | HA | 50 |
|
15.5 | 67 | M20048789 | |
| GCF.200.00 | 20 | 20 | 104 | 42 | 6 | 0.2 | HA | 42 |
|
M20048790 | |||
| GCF.201.00 | 20 | 20 | 125 | 62 | 6 | 0.2 | HA | 62 |
|
19.5 | 75 | M20048791 | |
| GCF.250.00 | 25 | 25 | 110 | 42 | 6 | 0.2 | HA | 42 |
|
M20048792 | |||
| GCF.031.00 | 3 | 6 | 57 | 8 | 5 | 0.05 | HA | 8 |
|
2.8 | 11 | M20062645 | |
| GCF.041.00 | 4 | 6 | 57 | 8 | 6 | 0.1 | HA | 8 |
|
3.7 | 16 | M20062646 | |
| GCF.051.00 | 5 | 6 | 57 | 10 | 6 | 0.1 | HA | 10 |
|
4.7 | 18 | M20062647 |
