MAS solid carbide end mill HPC with IK
Loading...
Loading...
Loading...
Loading...
Request product
Downloads to the product
Product information
- Geometry for normal materials - Typ N
- flutes 3
- Front form chamfer
- Helix angle 43°/47°
- Shank design HA
- Shank design HB
- Works standard
- Length of design - long
- Coating ALTIN
- High Performance Cutting HPC
- For steel
- For cast iron
- High Performance
- Machining direction xyz
- Slot milling
- Side milling
- Finishing
- flutes 3
- Front form chamfer
- Helix angle 43°/47°
- Shank design HA
- Shank design HB
- Works standard
- Length of design - long
- Coating ALTIN
- High Performance Cutting HPC
- For steel
- For cast iron
- High Performance
- Machining direction xyz
- Slot milling
- Side milling
- Finishing
Variants

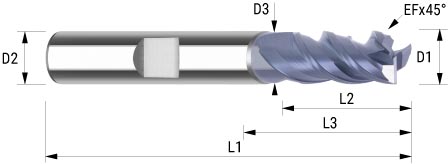

| product name | D1 | D2 | D3 | L1 | L2 | L3 | Z | Corner chamfer | shank | L4 | Suitability of material | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BDC.031.00 | 3 | 6 | 2.8 | 57 | 8 | 11 | 3 | 0.05 | HA | 8 |
|
M20062110 | |
| BDC.031.10 | 3 | 6 | 2.8 | 57 | 8 | 11 | 3 | 0.05 | HB | 8 |
|
M20062111 | |
| BDC.041.00 | 4 | 6 | 3.7 | 57 | 11 | 16 | 3 | 0.05 | HA | 11 |
|
M20062112 | |
| BDC.041.10 | 4 | 6 | 3.7 | 57 | 11 | 16 | 3 | 0.05 | HB | 11 |
|
M20062113 | |
| BDC.051.00 | 5 | 6 | 4.7 | 57 | 13 | 18 | 3 | 0.08 | HA | 13 |
|
M20062114 | |
| BDC.051.10 | 5 | 6 | 4.7 | 57 | 13 | 18 | 3 | 0.08 | HB | 13 |
|
M20062115 | |
| BDC.061.00 | 6 | 6 | 5.6 | 57 | 13 | 18 | 3 | 0.08 | HA | 13 |
|
M20062116 | |
| BDC.061.10 | 6 | 6 | 5.6 | 57 | 13 | 18 | 3 | 0.08 | HB | 13 |
|
M20062117 | |
| BDC.071.00 | 7 | 8 | 6.5 | 63 | 16 | 24 | 3 | 0.08 | HA | 16 |
|
M20062118 | |
| BDC.071.10 | 7 | 8 | 6.5 | 63 | 16 | 24 | 3 | 0.08 | HB | 16 |
|
M20062119 | |
| BDC.081.00 | 8 | 8 | 7.5 | 63 | 19 | 24 | 3 | 0.1 | HA | 19 |
|
M20062120 | |
| BDC.081.10 | 8 | 8 | 7.5 | 63 | 19 | 24 | 3 | 0.1 | HB | 19 |
|
M20062121 | |
| BDC.091.00 | 9 | 10 | 8.5 | 72 | 19 | 24 | 3 | 0.1 | HA | 19 |
|
M20062122 | |
| BDC.091.10 | 9 | 10 | 8.5 | 72 | 19 | 24 | 3 | 0.1 | HB | 19 |
|
M20062123 | |
| BDC.101.00 | 10 | 10 | 9.5 | 72 | 22 | 32 | 3 | 0.1 | HA | 22 |
|
M20062124 | |
| BDC.101.10 | 10 | 10 | 9.5 | 72 | 22 | 32 | 3 | 0.1 | HB | 22 |
|
M20062125 | |
| BDC.121.00 | 12 | 12 | 11 | 83 | 26 | 36 | 3 | 0.15 | HA | 26 |
|
M20062126 | |
| BDC.121.10 | 12 | 12 | 11 | 83 | 26 | 36 | 3 | 0.15 | HB | 26 |
|
M20062127 | |
| BDC.161.00 | 16 | 16 | 15 | 92 | 32 | 42 | 3 | 0.2 | HA | 32 |
|
M20062128 | |
| BDC.161.10 | 16 | 16 | 15 | 92 | 32 | 42 | 3 | 0.2 | HB | 32 |
|
M20062129 | |
| BDC.201.00 | 20 | 20 | 19 | 104 | 38 | 50 | 3 | 0.2 | HA | 38 |
|
M20062130 | |
| BDC.201.10 | 20 | 20 | 19 | 104 | 38 | 50 | 3 | 0.2 | HB | 38 |
|
M20062131 |
