MAS solid carbide end mill HPC
Loading...
Loading...
Loading...
Loading...
Request product
Downloads to the product
Product information
- Geometry for soft materials - Typ W
- Flutes 2
- Front form corner radius
- Helix angle 30°
- Surface polished
- Shank design HA
- Shank design HB
- Works standard
- Coating ta-C
- High Speed Cutting HSC
- For aluminium / non-ferrous metal
- For plastic
- Cooling with cutting fluid
- High Performance
- 1st Choice
- Machining direction xyz
- For Profiling
- Side milling
- Slot milling
- Flutes 2
- Front form corner radius
- Helix angle 30°
- Surface polished
- Shank design HA
- Shank design HB
- Works standard
- Coating ta-C
- High Speed Cutting HSC
- For aluminium / non-ferrous metal
- For plastic
- Cooling with cutting fluid
- High Performance
- 1st Choice
- Machining direction xyz
- For Profiling
- Side milling
- Slot milling
Variants

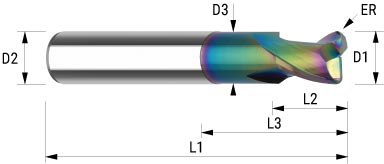

| product name | D1 | D2 | D3 | L1 | L2 | L3 | Z | RA | shank | L4 | Suitability of material | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B.DZ9.030.00 | 3 | 6 | 2.9 | 50 | 4 | 14 | 2 | 0.3 | HA | 4 |
|
M20061996 | |
| B.DZ9.030.10 | 3 | 6 | 2.9 | 50 | 4 | 14 | 2 | 0.3 | HB | 4 |
|
M20061997 | |
| B.DZ9.040.00 | 4 | 6 | 3.9 | 50 | 5 | 16 | 2 | 0.3 | HA | 5 |
|
M20061998 | |
| B.DZ9.040.10 | 4 | 6 | 3.9 | 50 | 5 | 16 | 2 | 0.3 | HB | 5 |
|
M20061999 | |
| B.DZ9.050.00 | 5 | 6 | 4.9 | 54 | 6 | 18 | 2 | 0.3 | HA | 6 |
|
M20062000 | |
| B.DZ9.050.10 | 5 | 6 | 4.9 | 54 | 6 | 18 | 2 | 0.3 | HB | 6 |
|
M20062001 | |
| B.DZ9.060.00 | 6 | 6 | 5.8 | 57 | 7 | 21 | 2 | 0.3 | HA | 7 |
|
M20062002 | |
| B.DZ9.060.10 | 6 | 6 | 5.8 | 57 | 7 | 21 | 2 | 0.3 | HB | 7 |
|
M20062003 | |
| B.DZ9.061.00 | 6 | 6 | 5.8 | 57 | 7 | 21 | 2 | 1 | HA | 7 |
|
M20062004 | |
| B.DZ9.061.10 | 6 | 6 | 5.8 | 57 | 7 | 21 | 2 | 1 | HB | 7 |
|
M20062005 | |
| B.DZ9.062.00 | 6 | 6 | 5.8 | 57 | 7 | 21 | 2 | 2 | HA | 7 |
|
M20062006 | |
| B.DZ9.062.10 | 6 | 6 | 5.8 | 57 | 7 | 21 | 2 | 2 | HB | 7 |
|
M20062007 | |
| B.DZ9.080.00 | 8 | 8 | 7.8 | 63 | 9 | 27 | 2 | 0.3 | HA | 9 |
|
M20062008 | |
| B.DZ9.080.10 | 8 | 8 | 7.8 | 63 | 9 | 27 | 2 | 0.3 | HB | 9 |
|
M20062009 | |
| B.DZ9.081.00 | 8 | 8 | 7.8 | 63 | 9 | 27 | 2 | 1 | HA | 9 |
|
M20062010 | |
| B.DZ9.081.10 | 8 | 8 | 7.8 | 63 | 9 | 27 | 2 | 1 | HB | 9 |
|
M20062011 | |
| B.DZ9.082.00 | 8 | 8 | 7.8 | 63 | 9 | 27 | 2 | 2 | HA | 9 |
|
M20062012 | |
| B.DZ9.082.10 | 8 | 8 | 7.8 | 63 | 9 | 27 | 2 | 2 | HB | 9 |
|
M20062013 | |
| B.DZ9.100.00 | 10 | 10 | 9.7 | 72 | 11 | 32 | 2 | 0.3 | HA | 11 |
|
M20062014 | |
| B.DZ9.100.10 | 10 | 10 | 9.7 | 72 | 11 | 32 | 2 | 0.3 | HB | 11 |
|
M20062015 | |
| B.DZ9.101.00 | 10 | 10 | 9.7 | 72 | 11 | 32 | 2 | 1.5 | HA | 11 |
|
M20062016 | |
| B.DZ9.101.10 | 10 | 10 | 9.7 | 72 | 11 | 32 | 2 | 1.5 | HB | 11 |
|
M20062017 | |
| B.DZ9.102.00 | 10 | 10 | 9.7 | 72 | 11 | 32 | 2 | 3 | HA | 11 |
|
M20062018 | |
| B.DZ9.102.10 | 10 | 10 | 9.7 | 72 | 11 | 32 | 2 | 3 | HB | 11 |
|
M20062019 | |
| B.DZ9.120.00 | 12 | 12 | 11.7 | 83 | 13 | 38 | 2 | 1.5 | HA | 13 |
|
M20062020 | |
| B.DZ9.120.10 | 12 | 12 | 11.7 | 83 | 13 | 38 | 2 | 1.5 | HB | 13 |
|
M20062021 | |
| B.DZ9.121.00 | 12 | 12 | 11.7 | 83 | 13 | 38 | 2 | 4 | HA | 13 |
|
M20062022 | |
| B.DZ9.121.10 | 12 | 12 | 11.7 | 83 | 13 | 38 | 2 | 4 | HB | 13 |
|
M20062023 | |
| B.DZ9.160.00 | 16 | 16 | 15.7 | 92 | 17 | 44 | 2 | 2 | HA | 17 |
|
M20062024 | |
| B.DZ9.160.10 | 16 | 16 | 15.7 | 92 | 17 | 44 | 2 | 2 | HB | 17 |
|
M20062025 | |
| B.DZ9.161.00 | 16 | 16 | 15.7 | 92 | 17 | 44 | 2 | 5 | HA | 17 |
|
M20062026 | |
| B.DZ9.161.10 | 16 | 16 | 15.7 | 92 | 17 | 44 | 2 | 5 | HB | 17 |
|
M20062027 |
