MAS Solid carbide end mill HPC 1xD

Do you have any questions about the product?

You can reach us Mon-Thu between 7:30-16:45 and Friday between 07:30-14:30
Phone: +49 7152-6065-12

Request product

Company

Name

E-mail

Phone number

Your message

Downloads to the product

MAS VHM-Tools Cutting Data

Product information

- New article
- Geometry for normal materials - Typ N
- flutes 4
- Front form sharp-edged
- Helix angle 35°/38°
- unequal division
- Shank design HA
- Shank design HB
- Standard DIN 6527 long
- Coating DUOCON
- High Performance Cutting HPC
- For rost and acid constant steel
- Cooling with cutting fluid
- High Performance
- 1st Choice
- Machining direction xy(z)
- Side milling

Variants

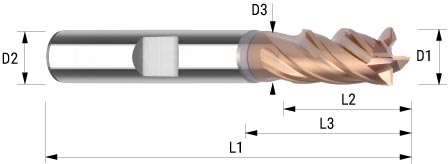

product name	D1	D2	D3	L1	L2	L3	Z	NL	shank	L4	ART.-NR:
BHI.060.00	6	6	5.5	57	13	21	4	19.7	HA	13	M20078018
BHI.060.10	6	6	5.5	57	13	21	4	19.7	HB	13	M20078019
BHI.080.00	8	8	7.5	63	19	27	4	25.8	HA	19	M20078020
BHI.080.10	8	8	7.5	63	19	27	4	25.8	HB	19	M20078021
BHI.100.00	10	10	9.5	72	22	32	4	31.5	HA	22	M20078022
BHI.100.10	10	10	9.5	72	22	32	4	31.5	HB	22	M20078023
BHI.120.00	12	12	11.5	83	26	38	4	36.3	HA	26	M20078024
BHI.120.10	12	12	11.5	83	26	38	4	36.3	HB	26	M20078025
BHI.160.00	16	16	15.5	92	32	44	4	44.1	HA	32	M20078026
BHI.160.10	16	16	15.5	92	32	44	4	44.1	HB	32	M20078027
BHI.200.00	20	20	19.5	104	38	54	4	51.6	HA	38	M20078028
BHI.200.10	20	20	19.5	104	38	54	4	51.6	HB	38	M20078029
