MAS Solid carbide twist drill 8xD with IK
Loading...
Loading...
Loading...
Loading...
Request product
Downloads to the product
Product information
- New article
- Geometry for materials normal to soft - Typ N-W
- Flutes 2
- Tip angle 140°
- Coolant hole with frontal outlet at the drill bit
- Shank design HA
- Shank design HB
- Coating VAROCON
- For rost and acid constant steel
- High Performance
- 1st Choice
- Machining direction z
- Drilling length 8xD
- Geometry for materials normal to soft - Typ N-W
- Flutes 2
- Tip angle 140°
- Coolant hole with frontal outlet at the drill bit
- Shank design HA
- Shank design HB
- Coating VAROCON
- For rost and acid constant steel
- High Performance
- 1st Choice
- Machining direction z
- Drilling length 8xD
Variants

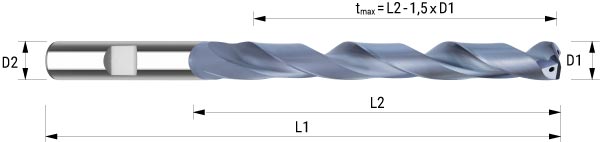

| product name | D1 | D2 | L1 | L2 | Z | shank | L4 | Suitability of material | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|
| GED.010.00 | 1 | 3 | 55 | 11 | 2 | HA | 11 |
|
M20078342 | |
| GED.011.00 | 1,1 | 3 | 55 | 17 | 2 | HA | 17 |
|
M20078343 | |
| GED.012.00 | 1,2 | 3 | 55 | 17 | 2 | HA | 17 |
|
M20078344 | |
| GED.013.00 | 1,3 | 3 | 55 | 17 | 2 | HA | 17 |
|
M20078345 | |
| GED.014.00 | 1,4 | 3 | 55 | 17 | 2 | HA | 17 |
|
M20078346 | |
| GED.015.00 | 1,5 | 3 | 65 | 22 | 2 | HA | 22 |
|
M20078347 | |
| GED.016.00 | 1,6 | 3 | 65 | 22 | 2 | HA | 22 |
|
M20078348 | |
| GED.017.00 | 1,7 | 3 | 65 | 22 | 2 | HA | 22 |
|
M20078349 | |
| GED.018.00 | 1,8 | 3 | 65 | 22 | 2 | HA | 22 |
|
M20078350 | |
| GED.019.00 | 1,9 | 3 | 65 | 22 | 2 | HA | 22 |
|
M20078351 | |
| GED.020.00 | 2 | 3 | 74 | 28 | 2 | HA | 28 |
|
M20078352 | |
| GED.021.00 | 2,1 | 3 | 74 | 28 | 2 | HA | 28 |
|
M20078353 | |
| GED.022.00 | 2,2 | 3 | 74 | 28 | 2 | HA | 28 |
|
M20078354 | |
| GED.023.00 | 2,3 | 3 | 74 | 28 | 2 | HA | 28 |
|
M20078355 | |
| GED.024.00 | 2,4 | 3 | 74 | 28 | 2 | HA | 28 |
|
M20078356 | |
| GED.025.00 | 2,5 | 3 | 80 | 32 | 2 | HA | 32 |
|
M20078357 | |
| GED.026.00 | 2,6 | 3 | 80 | 32 | 2 | HA | 32 |
|
M20078358 | |
| GED.027.00 | 2,7 | 3 | 80 | 32 | 2 | HA | 32 |
|
M20078359 | |
| GED.028.00 | 2,8 | 3 | 80 | 32 | 2 | HA | 32 |
|
M20078360 | |
| GED.029.00 | 2,9 | 3 | 80 | 32 | 2 | HA | 32 |
|
M20078361 | |
| GED.030.00 | 3 | 6 | 71 | 34 | 2 | HA | 34 |
|
M20078362 | |
| GED.030.10 | 3 | 6 | 71 | 34 | 2 | HB | 34 |
|
M20078363 | |
| GED.031.00 | 3,1 | 6 | 71 | 34 | 2 | HA | 34 |
|
M20078364 | |
| GED.031.10 | 3,1 | 6 | 71 | 34 | 2 | HB | 34 |
|
M20078365 | |
| GED.032.00 | 3,2 | 6 | 71 | 34 | 2 | HA | 34 |
|
M20078366 | |
| GED.032.10 | 3,2 | 6 | 71 | 34 | 2 | HB | 34 |
|
M20078367 | |
| GED.033.00 | 3,3 | 6 | 71 | 34 | 2 | HA | 34 |
|
M20078368 | |
| GED.033.10 | 3,3 | 6 | 71 | 34 | 2 | HB | 34 |
|
M20078369 | |
| GED.034.00 | 3,4 | 6 | 71 | 34 | 2 | HA | 34 |
|
M20078370 | |
| GED.034.10 | 3,4 | 6 | 71 | 34 | 2 | HB | 34 |
|
M20078371 | |
| GED.035.00 | 3,5 | 6 | 71 | 34 | 2 | HA | 34 |
|
M20078372 | |
| GED.035.10 | 3,5 | 6 | 71 | 34 | 2 | HB | 34 |
|
M20078373 | |
| GED.036.00 | 3,6 | 6 | 71 | 34 | 2 | HA | 34 |
|
M20078374 | |
| GED.036.10 | 3,6 | 6 | 71 | 34 | 2 | HB | 34 |
|
M20078375 | |
| GED.037.00 | 3,7 | 6 | 71 | 34 | 2 | HA | 34 |
|
M20078376 | |
| GED.037.10 | 3,7 | 6 | 71 | 34 | 2 | HB | 34 |
|
M20078377 | |
| GED.038.00 | 3,8 | 6 | 86 | 43 | 2 | HA | 43 |
|
M20078378 | |
| GED.038.10 | 3,8 | 6 | 86 | 43 | 2 | HB | 43 |
|
M20078379 | |
| GED.039.00 | 3,9 | 6 | 86 | 43 | 2 | HA | 43 |
|
M20078380 | |
| GED.039.10 | 3,9 | 6 | 86 | 43 | 2 | HB | 43 |
|
M20078381 | |
| GED.040.00 | 4 | 6 | 86 | 43 | 2 | HA | 43 |
|
M20078382 | |
| GED.040.10 | 4 | 6 | 86 | 43 | 2 | HB | 43 |
|
M20078383 | |
| GED.041.00 | 4,1 | 6 | 86 | 43 | 2 | HA | 43 |
|
M20078384 | |
| GED.041.10 | 4,1 | 6 | 86 | 43 | 2 | HB | 43 |
|
M20078385 | |
| GED.042.00 | 4,2 | 6 | 86 | 43 | 2 | HA | 43 |
|
M20078386 | |
| GED.042.10 | 4,2 | 6 | 86 | 43 | 2 | HB | 43 |
|
M20078387 | |
| GED.043.00 | 4,3 | 6 | 86 | 43 | 2 | HA | 43 |
|
M20078388 | |
| GED.043.10 | 4,3 | 6 | 86 | 43 | 2 | HB | 43 |
|
M20078389 | |
| GED.044.00 | 4,4 | 6 | 86 | 43 | 2 | HA | 43 |
|
M20078390 | |
| GED.044.10 | 4,4 | 6 | 86 | 43 | 2 | HB | 43 |
|
M20078391 | |
| GED.045.00 | 4,5 | 6 | 86 | 43 | 2 | HA | 43 |
|
M20078392 | |
| GED.045.10 | 4,5 | 6 | 86 | 43 | 2 | HB | 43 |
|
M20078393 | |
| GED.046.00 | 4,6 | 6 | 86 | 43 | 2 | HA | 43 |
|
M20078394 | |
| GED.046.10 | 4,6 | 6 | 86 | 43 | 2 | HB | 43 |
|
M20078395 | |
| GED.047.00 | 4,7 | 6 | 95 | 57 | 2 | HA | 57 |
|
M20078396 | |
| GED.047.10 | 4,7 | 6 | 95 | 57 | 2 | HB | 57 |
|
M20078397 | |
| GED.048.00 | 4,8 | 6 | 95 | 57 | 2 | HA | 57 |
|
M20078398 | |
| GED.048.10 | 4,8 | 6 | 95 | 57 | 2 | HB | 57 |
|
M20078399 | |
| GED.049.00 | 4,9 | 6 | 95 | 57 | 2 | HA | 57 |
|
M20078400 | |
| GED.049.10 | 4,9 | 6 | 95 | 57 | 2 | HB | 57 |
|
M20078401 | |
| GED.050.00 | 5 | 6 | 95 | 57 | 2 | HA | 57 |
|
M20078402 | |
| GED.050.10 | 5 | 6 | 95 | 57 | 2 | HB | 57 |
|
M20078403 | |
| GED.051.00 | 5,1 | 6 | 95 | 57 | 2 | HA | 57 |
|
M20078404 | |
| GED.051.10 | 5,1 | 6 | 95 | 57 | 2 | HB | 57 |
|
M20078405 | |
| GED.052.00 | 5,2 | 6 | 95 | 57 | 2 | HA | 57 |
|
M20078406 | |
| GED.052.10 | 5,2 | 6 | 95 | 57 | 2 | HB | 57 |
|
M20078407 | |
| GED.053.00 | 5,3 | 6 | 95 | 57 | 2 | HA | 57 |
|
M20078408 | |
| GED.053.10 | 5,3 | 6 | 95 | 57 | 2 | HB | 57 |
|
M20078409 | |
| GED.054.00 | 5,4 | 6 | 95 | 57 | 2 | HA | 57 |
|
M20078410 | |
| GED.054.10 | 5,4 | 6 | 95 | 57 | 2 | HB | 57 |
|
M20078411 | |
| GED.055.00 | 5,5 | 6 | 95 | 57 | 2 | HA | 57 |
|
M20078412 | |
| GED.055.10 | 5,5 | 6 | 95 | 57 | 2 | HB | 57 |
|
M20078413 | |
| GED.056.00 | 5,6 | 6 | 95 | 57 | 2 | HA | 57 |
|
M20078414 | |
| GED.056.10 | 5,6 | 6 | 95 | 57 | 2 | HB | 57 |
|
M20078415 | |
| GED.057.00 | 5,7 | 6 | 95 | 57 | 2 | HA | 57 |
|
M20078416 | |
| GED.057.10 | 5,7 | 6 | 95 | 57 | 2 | HB | 57 |
|
M20078417 | |
| GED.058.00 | 5,8 | 6 | 95 | 57 | 2 | HA | 57 |
|
M20078418 | |
| GED.058.10 | 5,8 | 6 | 95 | 57 | 2 | HB | 57 |
|
M20078419 | |
| GED.059.00 | 5,9 | 6 | 95 | 57 | 2 | HA | 57 |
|
M20078420 | |
| GED.059.10 | 5,9 | 6 | 95 | 57 | 2 | HB | 57 |
|
M20078421 | |
| GED.060.00 | 6 | 6 | 95 | 57 | 2 | HA | 57 |
|
M20078422 | |
| GED.060.10 | 6 | 6 | 95 | 57 | 2 | HB | 57 |
|
M20078423 | |
| GED.061.00 | 6,1 | 8 | 114 | 76 | 2 | HA | 76 |
|
M20078424 | |
| GED.061.10 | 6,1 | 8 | 114 | 76 | 2 | HB | 76 |
|
M20078425 | |
| GED.062.00 | 6,2 | 8 | 114 | 76 | 2 | HA | 76 |
|
M20078426 | |
| GED.062.10 | 6,2 | 8 | 114 | 76 | 2 | HB | 76 |
|
M20078427 | |
| GED.063.00 | 6,3 | 8 | 114 | 76 | 2 | HA | 76 |
|
M20078428 | |
| GED.063.10 | 6,3 | 8 | 114 | 76 | 2 | HB | 76 |
|
M20078429 | |
| GED.064.00 | 6,4 | 8 | 114 | 76 | 2 | HA | 76 |
|
M20078430 | |
| GED.064.10 | 6,4 | 8 | 114 | 76 | 2 | HB | 76 |
|
M20078431 | |
| GED.065.00 | 6,5 | 8 | 114 | 76 | 2 | HA | 76 |
|
M20078432 | |
| GED.065.10 | 6,5 | 8 | 114 | 76 | 2 | HB | 76 |
|
M20078433 | |
| GED.066.00 | 6,6 | 8 | 114 | 76 | 2 | HA | 76 |
|
M20078434 | |
| GED.066.10 | 6,6 | 8 | 114 | 76 | 2 | HB | 76 |
|
M20078435 | |
| GED.067.00 | 6,7 | 8 | 114 | 76 | 2 | HA | 76 |
|
M20078436 | |
| GED.067.10 | 6,7 | 8 | 114 | 76 | 2 | HB | 76 |
|
M20078437 | |
| GED.068.00 | 6,8 | 8 | 114 | 76 | 2 | HA | 76 |
|
M20078438 | |
| GED.068.10 | 6,8 | 8 | 114 | 76 | 2 | HB | 76 |
|
M20078439 | |
| GED.069.00 | 6,9 | 8 | 114 | 76 | 2 | HA | 76 |
|
M20078440 | |
| GED.069.10 | 6,9 | 8 | 114 | 76 | 2 | HB | 76 |
|
M20078441 | |
| GED.070.00 | 7 | 8 | 114 | 76 | 2 | HA | 76 |
|
M20078442 | |
| GED.070.10 | 7 | 8 | 114 | 76 | 2 | HB | 76 |
|
M20078443 | |
| GED.071.00 | 7,1 | 8 | 114 | 76 | 2 | HA | 76 |
|
M20078444 | |
| GED.071.10 | 7,1 | 8 | 114 | 76 | 2 | HB | 76 |
|
M20078445 | |
| GED.072.00 | 7,2 | 8 | 114 | 76 | 2 | HA | 76 |
|
M20078446 | |
| GED.072.10 | 7,2 | 8 | 114 | 76 | 2 | HB | 76 |
|
M20078447 | |
| GED.073.00 | 7,3 | 8 | 114 | 76 | 2 | HA | 76 |
|
M20078448 | |
| GED.073.10 | 7,3 | 8 | 114 | 76 | 2 | HB | 76 |
|
M20078449 | |
| GED.074.00 | 7,4 | 8 | 114 | 76 | 2 | HA | 76 |
|
M20078450 | |
| GED.074.10 | 7,4 | 8 | 114 | 76 | 2 | HB | 76 |
|
M20078451 | |
| GED.075.00 | 7,5 | 8 | 114 | 76 | 2 | HA | 76 |
|
M20078452 | |
| GED.075.10 | 7,5 | 8 | 114 | 76 | 2 | HB | 76 |
|
M20078453 | |
| GED.076.00 | 7,6 | 8 | 114 | 76 | 2 | HA | 76 |
|
M20078454 | |
| GED.076.10 | 7,6 | 8 | 114 | 76 | 2 | HB | 76 |
|
M20078455 | |
| GED.077.00 | 7,7 | 8 | 114 | 76 | 2 | HA | 76 |
|
M20078456 | |
| GED.077.10 | 7,7 | 8 | 114 | 76 | 2 | HB | 76 |
|
M20078457 | |
| GED.078.00 | 7,8 | 8 | 114 | 76 | 2 | HA | 76 |
|
M20078458 | |
| GED.078.10 | 7,8 | 8 | 114 | 76 | 2 | HB | 76 |
|
M20078459 | |
| GED.079.00 | 7,9 | 8 | 114 | 76 | 2 | HA | 76 |
|
M20078460 | |
| GED.079.10 | 7,9 | 8 | 114 | 76 | 2 | HB | 76 |
|
M20078461 | |
| GED.080.00 | 8 | 8 | 114 | 76 | 2 | HA | 76 |
|
M20078462 | |
| GED.080.10 | 8 | 8 | 114 | 76 | 2 | HB | 76 |
|
M20078463 | |
| GED.081.00 | 8,1 | 10 | 142 | 95 | 2 | HA | 95 |
|
M20078464 | |
| GED.081.10 | 8,1 | 10 | 142 | 95 | 2 | HB | 95 |
|
M20078465 | |
| GED.082.00 | 8,2 | 10 | 142 | 95 | 2 | HA | 95 |
|
M20078466 | |
| GED.082.10 | 8,2 | 10 | 142 | 95 | 2 | HB | 95 |
|
M20078467 | |
| GED.083.00 | 8,3 | 10 | 142 | 95 | 2 | HA | 95 |
|
M20078468 | |
| GED.083.10 | 8,3 | 10 | 142 | 95 | 2 | HB | 95 |
|
M20078469 | |
| GED.084.00 | 8,4 | 10 | 142 | 95 | 2 | HA | 95 |
|
M20078470 | |
| GED.084.10 | 8,4 | 10 | 142 | 95 | 2 | HB | 95 |
|
M20078471 | |
| GED.085.00 | 8,5 | 10 | 142 | 95 | 2 | HA | 95 |
|
M20078472 | |
| GED.085.10 | 8,5 | 10 | 142 | 95 | 2 | HB | 95 |
|
M20078473 | |
| GED.086.00 | 8,6 | 10 | 142 | 95 | 2 | HA | 95 |
|
M20078474 | |
| GED.086.10 | 8,6 | 10 | 142 | 95 | 2 | HB | 95 |
|
M20078475 | |
| GED.087.00 | 8,7 | 10 | 142 | 95 | 2 | HA | 95 |
|
M20078476 | |
| GED.087.10 | 8,7 | 10 | 142 | 95 | 2 | HB | 95 |
|
M20078477 | |
| GED.088.00 | 8,8 | 10 | 142 | 95 | 2 | HA | 95 |
|
M20078478 | |
| GED.088.10 | 8,8 | 10 | 142 | 95 | 2 | HB | 95 |
|
M20078479 | |
| GED.089.00 | 8,9 | 10 | 142 | 95 | 2 | HA | 95 |
|
M20078480 | |
| GED.089.10 | 8,9 | 10 | 142 | 95 | 2 | HB | 95 |
|
M20078481 | |
| GED.090.00 | 9 | 10 | 142 | 95 | 2 | HA | 95 |
|
M20078482 | |
| GED.090.10 | 9 | 10 | 142 | 95 | 2 | HB | 95 |
|
M20078483 | |
| GED.091.00 | 9,1 | 10 | 142 | 95 | 2 | HA | 95 |
|
M20078484 | |
| GED.091.10 | 9,1 | 10 | 142 | 95 | 2 | HB | 95 |
|
M20078485 | |
| GED.092.00 | 9,2 | 10 | 142 | 95 | 2 | HA | 95 |
|
M20078486 | |
| GED.092.10 | 9,2 | 10 | 142 | 95 | 2 | HB | 95 |
|
M20078487 | |
| GED.093.00 | 9,3 | 10 | 142 | 95 | 2 | HA | 95 |
|
M20078488 | |
| GED.093.10 | 9,3 | 10 | 142 | 95 | 2 | HB | 95 |
|
M20078489 | |
| GED.094.00 | 9,4 | 10 | 142 | 95 | 2 | HA | 95 |
|
M20078490 | |
| GED.094.10 | 9,4 | 10 | 142 | 95 | 2 | HB | 95 |
|
M20078491 | |
| GED.095.00 | 9,5 | 10 | 142 | 95 | 2 | HA | 95 |
|
M20078492 | |
| GED.095.10 | 9,5 | 10 | 142 | 95 | 2 | HB | 95 |
|
M20078493 | |
| GED.096.00 | 9,6 | 10 | 142 | 95 | 2 | HA | 95 |
|
M20078494 | |
| GED.096.10 | 9,6 | 10 | 142 | 95 | 2 | HB | 95 |
|
M20078495 | |
| GED.097.00 | 9,7 | 10 | 142 | 95 | 2 | HA | 95 |
|
M20078496 | |
| GED.097.10 | 9,7 | 10 | 142 | 95 | 2 | HB | 95 |
|
M20078497 | |
| GED.098.00 | 9,8 | 10 | 142 | 95 | 2 | HA | 95 |
|
M20078498 | |
| GED.098.10 | 9,8 | 10 | 142 | 95 | 2 | HB | 95 |
|
M20078499 | |
| GED.099.00 | 9,9 | 10 | 142 | 95 | 2 | HA | 95 |
|
M20078500 | |
| GED.099.10 | 9,9 | 10 | 142 | 95 | 2 | HB | 95 |
|
M20078501 | |
| GED.100.00 | 10 | 10 | 142 | 95 | 2 | HA | 95 |
|
M20078502 | |
| GED.100.10 | 10 | 10 | 142 | 95 | 2 | HB | 95 |
|
M20078503 | |
| GED.101.00 | 10,1 | 12 | 162 | 114 | 2 | HA | 114 |
|
M20078504 | |
| GED.101.10 | 10,1 | 12 | 162 | 114 | 2 | HB | 114 |
|
M20078505 | |
| GED.102.00 | 10,2 | 12 | 162 | 114 | 2 | HA | 114 |
|
M20078506 | |
| GED.102.10 | 10,2 | 12 | 162 | 114 | 2 | HB | 114 |
|
M20078507 | |
| GED.103.00 | 10,3 | 12 | 162 | 114 | 2 | HA | 114 |
|
M20078508 | |
| GED.103.10 | 10,3 | 12 | 162 | 114 | 2 | HB | 114 |
|
M20078509 | |
| GED.104.00 | 10,4 | 12 | 162 | 114 | 2 | HA | 114 |
|
M20078510 | |
| GED.104.10 | 10,4 | 12 | 162 | 114 | 2 | HB | 114 |
|
M20078511 | |
| GED.105.00 | 10,5 | 12 | 162 | 114 | 2 | HA | 114 |
|
M20078512 | |
| GED.105.10 | 10,5 | 12 | 162 | 114 | 2 | HB | 114 |
|
M20078513 | |
| GED.106.00 | 10,6 | 12 | 162 | 114 | 2 | HA | 114 |
|
M20078514 | |
| GED.106.10 | 10,6 | 12 | 162 | 114 | 2 | HB | 114 |
|
M20078515 | |
| GED.107.00 | 10,7 | 12 | 162 | 114 | 2 | HA | 114 |
|
M20078516 | |
| GED.107.10 | 10,7 | 12 | 162 | 114 | 2 | HB | 114 |
|
M20078517 | |
| GED.108.00 | 10,8 | 12 | 162 | 114 | 2 | HA | 114 |
|
M20078518 | |
| GED.108.10 | 10,8 | 12 | 162 | 114 | 2 | HB | 114 |
|
M20078519 | |
| GED.109.00 | 10,9 | 12 | 162 | 114 | 2 | HA | 114 |
|
M20078520 | |
| GED.109.10 | 10,9 | 12 | 162 | 114 | 2 | HB | 114 |
|
M20078521 | |
| GED.110.00 | 11 | 12 | 162 | 114 | 2 | HA | 114 |
|
M20078522 | |
| GED.110.10 | 11 | 12 | 162 | 114 | 2 | HB | 114 |
|
M20078523 | |
| GED.111.00 | 11,1 | 12 | 162 | 114 | 2 | HA | 114 |
|
M20078524 | |
| GED.111.10 | 11,1 | 12 | 162 | 114 | 2 | HB | 114 |
|
M20078525 | |
| GED.112.00 | 11,2 | 12 | 162 | 114 | 2 | HA | 114 |
|
M20078526 | |
| GED.112.10 | 11,2 | 12 | 162 | 114 | 2 | HB | 114 |
|
M20078527 | |
| GED.113.00 | 11,3 | 12 | 162 | 114 | 2 | HA | 114 |
|
M20078528 | |
| GED.113.10 | 11,3 | 12 | 162 | 114 | 2 | HB | 114 |
|
M20078529 | |
| GED.114.00 | 11,4 | 12 | 162 | 114 | 2 | HA | 114 |
|
M20078530 | |
| GED.114.10 | 11,4 | 12 | 162 | 114 | 2 | HB | 114 |
|
M20078531 | |
| GED.115.00 | 11,5 | 12 | 162 | 114 | 2 | HA | 114 |
|
M20078532 | |
| GED.115.10 | 11,5 | 12 | 162 | 114 | 2 | HB | 114 |
|
M20078533 | |
| GED.116.00 | 11,6 | 12 | 162 | 114 | 2 | HA | 114 |
|
M20078534 | |
| GED.116.10 | 11,6 | 12 | 162 | 114 | 2 | HB | 114 |
|
M20078535 | |
| GED.117.00 | 11,7 | 12 | 162 | 114 | 2 | HA | 114 |
|
M20078536 | |
| GED.117.10 | 11,7 | 12 | 162 | 114 | 2 | HB | 114 |
|
M20078537 | |
| GED.118.00 | 11,8 | 12 | 162 | 114 | 2 | HA | 114 |
|
M20078538 | |
| GED.118.10 | 11,8 | 12 | 162 | 114 | 2 | HB | 114 |
|
M20078539 | |
| GED.119.00 | 11,9 | 12 | 162 | 114 | 2 | HA | 114 |
|
M20078540 | |
| GED.119.10 | 11,9 | 12 | 162 | 114 | 2 | HB | 114 |
|
M20078541 | |
| GED.120.00 | 12 | 12 | 162 | 114 | 2 | HA | 114 |
|
M20078542 | |
| GED.120.10 | 12 | 12 | 162 | 114 | 2 | HB | 114 |
|
M20078543 | |
| GED.125.00 | 12,5 | 14 | 184 | 133 | 2 | HA | 133 |
|
M20078544 | |
| GED.125.10 | 12,5 | 14 | 184 | 133 | 2 | HB | 133 |
|
M20078545 | |
| GED.128.00 | 12,8 | 14 | 184 | 133 | 2 | HA | 133 |
|
M20078546 | |
| GED.128.10 | 12,8 | 14 | 184 | 133 | 2 | HB | 133 |
|
M20078547 | |
| GED.130.00 | 13 | 14 | 184 | 133 | 2 | HA | 133 |
|
M20078548 | |
| GED.130.10 | 13 | 14 | 184 | 133 | 2 | HB | 133 |
|
M20078549 | |
| GED.135.00 | 13,5 | 14 | 184 | 133 | 2 | HA | 133 |
|
M20078550 | |
| GED.135.10 | 13,5 | 14 | 184 | 133 | 2 | HB | 133 |
|
M20078551 | |
| GED.140.00 | 14 | 14 | 184 | 133 | 2 | HA | 133 |
|
M20078552 | |
| GED.140.10 | 14 | 14 | 184 | 133 | 2 | HB | 133 |
|
M20078553 | |
| GED.145.00 | 14,5 | 16 | 203 | 152 | 2 | HA | 152 |
|
M20078554 | |
| GED.145.10 | 14,5 | 16 | 203 | 152 | 2 | HB | 152 |
|
M20078555 | |
| GED.150.00 | 15 | 16 | 203 | 152 | 2 | HA | 152 |
|
M20078556 | |
| GED.150.10 | 15 | 16 | 203 | 152 | 2 | HB | 152 |
|
M20078557 | |
| GED.155.00 | 15,5 | 16 | 203 | 152 | 2 | HA | 152 |
|
M20078558 | |
| GED.155.10 | 15,5 | 16 | 203 | 152 | 2 | HB | 152 |
|
M20078559 | |
| GED.160.00 | 16 | 16 | 203 | 152 | 2 | HA | 152 |
|
M20078560 | |
| GED.160.10 | 16 | 16 | 203 | 152 | 2 | HB | 152 |
|
M20078561 | |
| GED.165.00 | 16,5 | 18 | 222 | 171 | 2 | HA | 171 |
|
M20078562 | |
| GED.165.10 | 16,5 | 18 | 222 | 171 | 2 | HB | 171 |
|
M20078563 | |
| GED.170.00 | 17 | 18 | 222 | 171 | 2 | HA | 171 |
|
M20078564 | |
| GED.170.10 | 17 | 18 | 222 | 171 | 2 | HB | 171 |
|
M20078565 | |
| GED.175.00 | 17,5 | 18 | 222 | 171 | 2 | HA | 171 |
|
M20078566 | |
| GED.175.10 | 17,5 | 18 | 222 | 171 | 2 | HB | 171 |
|
M20078567 | |
| GED.180.00 | 18 | 18 | 222 | 171 | 2 | HA | 171 |
|
M20078568 | |
| GED.180.10 | 18 | 18 | 222 | 171 | 2 | HB | 171 |
|
M20078569 | |
| GED.185.00 | 18,5 | 20 | 243 | 190 | 2 | HA | 190 |
|
M20078570 | |
| GED.185.10 | 18,5 | 20 | 243 | 190 | 2 | HB | 190 |
|
M20078571 | |
| GED.190.00 | 19 | 20 | 243 | 190 | 2 | HA | 190 |
|
M20078572 | |
| GED.190.10 | 19 | 20 | 243 | 190 | 2 | HB | 190 |
|
M20078573 | |
| GED.200.00 | 20 | 20 | 243 | 190 | 2 | HA | 190 |
|
M20078574 | |
| GED.200.10 | 20 | 20 | 243 | 190 | 2 | HB | 190 |
|
M20078575 |
