MAS solid carbide twist drill 5xD with IK

Main Image Article MAS solid carbide twist drill 5xD with IK
Loading...
Loading...
Main Image Article MAS solid carbide twist drill 5xD with IK
Loading...
Loading...

Do you have any questions about the product?

You can reach us Mon-Thu between 7:30-16:45 and Friday between 07:30-14:30
Phone: +49 7152-6065-12
Request product

Downloads to the product

Product information

- Geometry for materials normal to hard - Typ N-H
- Flutes 2
- Tip angle 140°
- Three guide margins
- Coolant hole with frontal outlet at the drill bit
- Shank design HA
- Shank design HB
- Coating nacro
- High Performance Cutting HPC
- For steel
- For cast iron
- High Performance
- Machining direction z
- Drilling length 5xD
- For cross drilling and slented exit

Variants

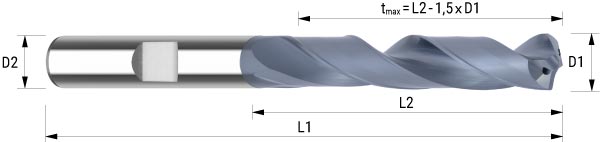

product name D1 D2 L1 L2 Z shank L4 Suitability of material ART.-NR:
IZE.030.00 3 6 66 28 2 HA 28
material steel
material cast iron
M20051848
IZE.031.00 3,1 6 66 28 2 HA 28
material steel
material cast iron
M20051849
IZE.032.00 3,2 6 66 28 2 HA 28
material steel
material cast iron
M20051850
IZE.033.00 3,3 6 66 28 2 HA 28
material steel
material cast iron
M20051851
IZE.034.00 3,4 6 66 28 2 HA 28
material steel
material cast iron
M20051852
IZE.035.00 3,5 6 66 28 2 HA 28
material steel
material cast iron
M20051853
IZE.036.00 3,6 6 66 28 2 HA 28
material steel
material cast iron
M20051854
IZE.037.00 3,7 6 66 28 2 HA 28
material steel
material cast iron
M20051855
IZE.038.00 3,8 6 74 36 2 HA 36
material steel
material cast iron
M20051856
IZE.039.00 3,9 6 74 36 2 HA 36
material steel
material cast iron
M20051857
IZE.040.00 4 6 74 36 2 HA 36
material steel
material cast iron
M20051858
IZE.041.00 4,1 6 74 36 2 HA 36
material steel
material cast iron
M20051859
IZE.042.00 4,2 6 74 36 2 HA 36
material steel
material cast iron
M20051860
IZE.043.00 4,3 6 74 36 2 HA 36
material steel
material cast iron
M20051861
IZE.044.00 4,4 6 74 36 2 HA 36
material steel
material cast iron
M20051862
IZE.045.00 4,5 6 74 36 2 HA 36
material steel
material cast iron
M20051863
IZE.046.00 4,6 6 74 36 2 HA 36
material steel
material cast iron
M20051864
IZE.047.00 4,7 6 74 36 2 HA 36
material steel
material cast iron
M20051865
IZE.048.00 4,8 6 82 44 2 HA 44
material steel
material cast iron
M20051866
IZE.049.00 4,9 6 82 44 2 HA 44
material steel
material cast iron
M20051867
IZE.050.00 5 6 82 44 2 HA 44
material steel
material cast iron
M20051868
IZE.051.00 5,1 6 82 44 2 HA 44
material steel
material cast iron
M20051869
IZE.052.00 5,2 6 82 44 2 HA 44
material steel
material cast iron
M20051870
IZE.053.00 5,3 6 82 44 2 HA 44
material steel
material cast iron
M20051871
IZE.054.00 5,4 6 82 44 2 HA 44
material steel
material cast iron
M20051872
IZE.055.00 5,5 6 82 44 2 HA 44
material steel
material cast iron
M20051873
IZE.056.00 5,6 6 82 44 2 HA 44
material steel
material cast iron
M20051874
IZE.057.00 5,7 6 82 44 2 HA 44
material steel
material cast iron
M20051875
IZE.058.00 5,8 6 82 44 2 HA 44
material steel
material cast iron
M20051876
IZE.059.00 5,9 6 82 44 2 HA 44
material steel
material cast iron
M20051877
IZE.060.00 6 6 82 44 2 HA 44
material steel
material cast iron
M20051878
IZE.061.00 6,1 8 91 53 2 HA 53
material steel
material cast iron
M20051879
IZE.062.00 6,2 8 91 53 2 HA 53
material steel
material cast iron
M20051880
IZE.063.00 6,3 8 91 53 2 HA 53
material steel
material cast iron
M20051881
IZE.064.00 6,4 8 91 53 2 HA 53
material steel
material cast iron
M20051882
IZE.065.00 6,5 8 91 53 2 HA 53
material steel
material cast iron
M20051883
IZE.066.00 6,6 8 91 53 2 HA 53
material steel
material cast iron
M20051884
IZE.067.00 6,7 8 91 53 2 HA 53
material steel
material cast iron
M20051885
IZE.068.00 6,8 8 91 53 2 HA 53
material steel
material cast iron
M20051886
IZE.069.00 6,9 8 91 53 2 HA 53
material steel
material cast iron
M20051887
IZE.070.00 7 8 91 53 2 HA 53
material steel
material cast iron
M20051888
IZE.071.00 7,1 8 91 53 2 HA 53
material steel
material cast iron
M20051889
IZE.072.00 7,2 8 91 53 2 HA 53
material steel
material cast iron
M20051890
IZE.073.00 7,3 8 91 53 2 HA 53
material steel
material cast iron
M20051891
IZE.074.00 7,4 8 91 53 2 HA 53
material steel
material cast iron
M20051892
IZE.075.00 7,5 8 91 53 2 HA 53
material steel
material cast iron
M20051893
IZE.076.00 7,6 8 91 53 2 HA 53
material steel
material cast iron
M20051894
IZE.077.00 7,7 8 91 53 2 HA 53
material steel
material cast iron
M20051895
IZE.078.00 7,8 8 91 53 2 HA 53
material steel
material cast iron
M20051896
IZE.079.00 7,9 8 91 53 2 HA 53
material steel
material cast iron
M20051897
IZE.080.00 8 8 91 53 2 HA 53
material steel
material cast iron
M20051898
IZE.081.00 8,1 10 103 61 2 HA 61
material steel
material cast iron
M20051899
IZE.082.00 8,2 10 103 61 2 HA 61
material steel
material cast iron
M20051900
IZE.083.00 8,3 10 103 61 2 HA 61
material steel
material cast iron
M20051901
IZE.084.00 8,4 10 103 61 2 HA 61
material steel
material cast iron
M20051902
IZE.085.00 8,5 10 103 61 2 HA 61
material steel
material cast iron
M20051903
IZE.086.00 8,6 10 103 61 2 HA 61
material steel
material cast iron
M20051904
IZE.087.00 8,7 10 103 61 2 HA 61
material steel
material cast iron
M20051905
IZE.088.00 8,8 10 103 61 2 HA 61
material steel
material cast iron
M20051906
IZE.089.00 8,9 10 103 61 2 HA 61
material steel
material cast iron
M20051907
IZE.090.00 9 10 103 61 2 HA 61
material steel
material cast iron
M20051908
IZE.091.00 9,1 10 103 61 2 HA 61
material steel
material cast iron
M20051909
IZE.092.00 9,2 10 103 61 2 HA 61
material steel
material cast iron
M20051910
IZE.093.00 9,3 10 103 61 2 HA 61
material steel
material cast iron
M20051911
IZE.094.00 9,4 10 103 61 2 HA 61
material steel
material cast iron
M20051912
IZE.095.00 9,5 10 103 61 2 HA 61
material steel
material cast iron
M20051913
IZE.096.00 9,6 10 103 61 2 HA 61
material steel
material cast iron
M20051914
IZE.097.00 9,7 10 103 61 2 HA 61
material steel
material cast iron
M20051915
IZE.098.00 9,8 10 103 61 2 HA 61
material steel
material cast iron
M20051916
IZE.099.00 9,9 10 103 61 2 HA 61
material steel
material cast iron
M20051917
IZE.100.00 10 10 103 61 2 HA 61
material steel
material cast iron
M20051918
IZE.101.00 10,1 12 118 71 2 HA 71
material steel
material cast iron
M20051919
IZE.102.00 10,2 12 118 71 2 HA 71
material steel
material cast iron
M20051920
IZE.103.00 10,3 12 118 71 2 HA 71
material steel
material cast iron
M20051921
IZE.104.00 10,4 12 118 71 2 HA 71
material steel
material cast iron
M20051922
IZE.105.00 10,5 12 118 71 2 HA 71
material steel
material cast iron
M20051923
IZE.106.00 10,6 12 118 71 2 HA 71
material steel
material cast iron
M20051924
IZE.107.00 10,7 12 118 71 2 HA 71
material steel
material cast iron
M20051925
IZE.108.00 10,8 12 118 71 2 HA 71
material steel
material cast iron
M20051926
IZE.109.00 10,9 12 118 71 2 HA 71
material steel
material cast iron
M20051927
IZE.110.00 11 12 118 71 2 HA 71
material steel
material cast iron
M20051928
IZE.111.00 11,1 12 118 71 2 HA 71
material steel
material cast iron
M20051929
IZE.112.00 11,2 12 118 71 2 HA 71
material steel
material cast iron
M20051930
IZE.113.00 11,3 12 118 71 2 HA 71
material steel
material cast iron
M20051931
IZE.114.00 11,4 12 118 71 2 HA 71
material steel
material cast iron
M20051932
IZE.115.00 11,5 12 118 71 2 HA 71
material steel
material cast iron
M20051933
IZE.116.00 11,6 12 118 71 2 HA 71
material steel
material cast iron
M20051934
IZE.117.00 11,7 12 118 71 2 HA 71
material steel
material cast iron
M20051935
IZE.118.00 11,8 12 118 71 2 HA 71
material steel
material cast iron
M20051936
IZE.119.00 11,9 12 118 71 2 HA 71
material steel
material cast iron
M20051937
IZE.120.00 12 12 118 71 2 HA 71
material steel
material cast iron
M20051938
IZE.122.00 12,2 14 124 77 2 HA 77
material steel
material cast iron
M20051939
IZE.123.00 12,3 14 124 77 2 HA 77
material steel
material cast iron
M20051940
IZE.125.00 12,5 14 124 77 2 HA 77
material steel
material cast iron
M20051941
IZE.128.00 12,8 14 124 77 2 HA 77
material steel
material cast iron
M20051942
IZE.130.00 13 14 124 77 2 HA 77
material steel
material cast iron
M20051943
IZE.135.00 13,5 14 124 77 2 HA 77
material steel
material cast iron
M20051944
IZE.138.00 13,8 14 124 77 2 HA 77
material steel
material cast iron
M20051945
IZE.140.00 14 14 124 77 2 HA 77
material steel
material cast iron
M20051946
IZE.145.00 14,5 16 133 83 2 HA 83
material steel
material cast iron
M20051947
IZE.148.00 14,8 16 133 83 2 HA 83
material steel
material cast iron
M20051948
IZE.150.00 15 16 133 83 2 HA 83
material steel
material cast iron
M20051949
IZE.155.00 15,5 16 133 83 2 HA 83
material steel
material cast iron
M20051950
IZE.158.00 15,8 16 133 83 2 HA 83
material steel
material cast iron
M20051951
IZE.160.00 16 16 133 83 2 HA 83
material steel
material cast iron
M20051952
IZE.165.00 16,5 18 143 93 2 HA 93
material steel
material cast iron
M20051953
IZE.168.00 16,8 18 143 93 2 HA 93
material steel
material cast iron
M20051954
IZE.170.00 17 18 143 93 2 HA 93
material steel
material cast iron
M20051955
IZE.175.00 17,5 18 143 93 2 HA 93
material steel
material cast iron
M20051956
IZE.178.00 17,8 18 143 93 2 HA 93
material steel
material cast iron
M20051957
IZE.180.00 18 18 143 93 2 HA 93
material steel
material cast iron
M20051958
IZE.185.00 18,5 20 153 101 2 HA 101
material steel
material cast iron
M20051959
IZE.190.00 19 20 153 101 2 HA 101
material steel
material cast iron
M20051960
IZE.195.00 19,5 20 153 101 2 HA 101
material steel
material cast iron
M20051961
IZE.200.00 20 20 153 101 2 HA 101
material steel
material cast iron
M20051962
IZE.465.00 4,65 6 74 36 2 HA 36
material steel
material cast iron
M20051963
IZE.555.00 5,55 6 82 44 2 HA 44
material steel
material cast iron
M20051964
IZE.030.10 3 6 66 28 2 HB 28
material steel
material cast iron
M20053840
IZE.031.10 3,1 6 66 28 2 HB 28
material steel
material cast iron
M20053841
IZE.032.10 3,2 6 66 28 2 HB 28
material steel
material cast iron
M20053842
IZE.033.10 3,3 6 66 28 2 HB 28
material steel
material cast iron
M20053843
IZE.034.10 3,4 6 66 28 2 HB 28
material steel
material cast iron
M20053844
IZE.035.10 3,5 6 66 28 2 HB 28
material steel
material cast iron
M20053845
IZE.036.10 3,6 6 66 28 2 HB 28
material steel
material cast iron
M20053846
IZE.037.10 3,7 6 66 28 2 HB 28
material steel
material cast iron
M20053847
IZE.038.10 3,8 6 74 36 2 HB 36
material steel
material cast iron
M20053848
IZE.039.10 3,9 6 74 36 2 HB 36
material steel
material cast iron
M20053849
IZE.040.10 4 6 74 36 2 HB 36
material steel
material cast iron
M20053850
IZE.041.10 4,1 6 74 36 2 HB 36
material steel
material cast iron
M20053851
IZE.042.10 4,2 6 74 36 2 HB 36
material steel
material cast iron
M20053852
IZE.043.10 4,3 6 74 36 2 HB 36
material steel
material cast iron
M20053853
IZE.044.10 4,4 6 74 36 2 HB 36
material steel
material cast iron
M20053854
IZE.045.10 4,5 6 74 36 2 HB 36
material steel
material cast iron
M20053855
IZE.046.10 4,6 6 74 36 2 HB 36
material steel
material cast iron
M20053856
IZE.047.10 4,7 6 74 36 2 HB 36
material steel
material cast iron
M20053857
IZE.048.10 4,8 6 82 44 2 HB 44
material steel
material cast iron
M20053858
IZE.049.10 4,9 6 82 44 2 HB 44
material steel
material cast iron
M20053859
IZE.050.10 5 6 82 44 2 HB 44
material steel
material cast iron
M20053860
IZE.051.10 5,1 6 82 44 2 HB 44
material steel
material cast iron
M20053861
IZE.052.10 5,2 6 82 44 2 HB 44
material steel
material cast iron
M20053862
IZE.053.10 5,3 6 82 44 2 HB 44
material steel
material cast iron
M20053863
IZE.054.10 5,4 6 82 44 2 HB 44
material steel
material cast iron
M20053864
IZE.055.10 5,5 6 82 44 2 HB 44
material steel
material cast iron
M20053865
IZE.056.10 5,6 6 82 44 2 HB 44
material steel
material cast iron
M20053866
IZE.057.10 5,7 6 82 44 2 HB 44
material steel
material cast iron
M20053867
IZE.058.10 5,8 6 82 44 2 HB 44
material steel
material cast iron
M20053868
IZE.059.10 5,9 6 82 44 2 HB 44
material steel
material cast iron
M20053869
IZE.060.10 6 6 82 44 2 HB 44
material steel
material cast iron
M20053870
IZE.061.10 6,1 8 91 53 2 HB 53
material steel
material cast iron
M20053871
IZE.062.10 6,2 8 91 53 2 HB 53
material steel
material cast iron
M20053872
IZE.063.10 6,3 8 91 53 2 HB 53
material steel
material cast iron
M20053873
IZE.064.10 6,4 8 91 53 2 HB 53
material steel
material cast iron
M20053874
IZE.065.10 6,5 8 91 53 2 HB 53
material steel
material cast iron
M20053875
IZE.066.10 6,6 8 91 53 2 HB 53
material steel
material cast iron
M20053876
IZE.067.10 6,7 8 91 53 2 HB 53
material steel
material cast iron
M20053877
IZE.068.10 6,8 8 91 53 2 HB 53
material steel
material cast iron
M20053878
IZE.069.10 6,9 8 91 53 2 HB 53
material steel
material cast iron
M20053879
IZE.070.10 7 8 91 53 2 HB 53
material steel
material cast iron
M20053880
IZE.071.10 7,1 8 91 53 2 HB 53
material steel
material cast iron
M20053881
IZE.072.10 7,2 8 91 53 2 HB 53
material steel
material cast iron
M20053882
IZE.073.10 7,3 8 91 53 2 HB 53
material steel
material cast iron
M20053883
IZE.074.10 7,4 8 91 53 2 HB 53
material steel
material cast iron
M20053884
IZE.075.10 7,5 8 91 53 2 HB 53
material steel
material cast iron
M20053885
IZE.076.10 7,6 8 91 53 2 HB 53
material steel
material cast iron
M20053886
IZE.077.10 7,7 8 91 53 2 HB 53
material steel
material cast iron
M20053887
IZE.078.10 7,8 8 91 53 2 HB 53
material steel
material cast iron
M20053888
IZE.079.10 7,9 8 91 53 2 HB 53
material steel
material cast iron
M20053889
IZE.080.10 8 8 91 53 2 HB 53
material steel
material cast iron
M20053890
IZE.081.10 8,1 10 103 61 2 HB 61
material steel
material cast iron
M20053891
IZE.082.10 8,2 10 103 61 2 HB 61
material steel
material cast iron
M20053892
IZE.083.10 8,3 10 103 61 2 HB 61
material steel
material cast iron
M20053893
IZE.084.10 8,4 10 103 61 2 HB 61
material steel
material cast iron
M20053894
IZE.085.10 8,5 10 103 61 2 HB 61
material steel
material cast iron
M20053895
IZE.086.10 8,6 10 103 61 2 HB 61
material steel
material cast iron
M20053896
IZE.087.10 8,7 10 103 61 2 HB 61
material steel
material cast iron
M20053897
IZE.088.10 8,8 10 103 61 2 HB 61
material steel
material cast iron
M20053898
IZE.089.10 8,9 10 103 61 2 HB 61
material steel
material cast iron
M20053899
IZE.090.10 9 10 103 61 2 HB 61
material steel
material cast iron
M20053900
IZE.091.10 9,1 10 103 61 2 HB 61
material steel
material cast iron
M20053901
IZE.092.10 9,2 10 103 61 2 HB 61
material steel
material cast iron
M20053902
IZE.093.10 9,3 10 103 61 2 HB 61
material steel
material cast iron
M20053903
IZE.094.10 9,4 10 103 61 2 HB 61
material steel
material cast iron
M20053904
IZE.095.10 9,5 10 103 61 2 HB 61
material steel
material cast iron
M20053905
IZE.096.10 9,6 10 103 61 2 HB 61
material steel
material cast iron
M20053906
IZE.097.10 9,7 10 103 61 2 HB 61
material steel
material cast iron
M20053907
IZE.098.10 9,8 10 103 61 2 HB 61
material steel
material cast iron
M20053908
IZE.099.10 9,9 10 103 61 2 HB 61
material steel
material cast iron
M20053909
IZE.100.10 10 10 103 61 2 HB 61
material steel
material cast iron
M20053910
IZE.101.10 10,1 12 118 71 2 HB 71
material steel
material cast iron
M20053911
IZE.102.10 10,2 12 118 71 2 HB 71
material steel
material cast iron
M20053912
IZE.103.10 10,3 12 118 71 2 HB 71
material steel
material cast iron
M20053913
IZE.104.10 10,4 12 118 71 2 HB 71
material steel
material cast iron
M20053914
IZE.105.10 10,5 12 118 71 2 HB 71
material steel
material cast iron
M20053915
IZE.106.10 10,6 12 118 71 2 HB 71
material steel
material cast iron
M20053916
IZE.107.10 10,7 12 118 71 2 HB 71
material steel
material cast iron
M20053917
IZE.108.10 10,8 12 118 71 2 HB 71
material steel
material cast iron
M20053918
IZE.109.10 10,9 12 118 71 2 HB 71
material steel
material cast iron
M20053919
IZE.110.10 11 12 118 71 2 HB 71
material steel
material cast iron
M20053920
IZE.111.10 11,1 12 118 71 2 HB 71
material steel
material cast iron
M20053921
IZE.112.10 11,2 12 118 71 2 HB 71
material steel
material cast iron
M20053922
IZE.113.10 11,3 12 118 71 2 HB 71
material steel
material cast iron
M20053923
IZE.114.10 11,4 12 118 71 2 HB 71
material steel
material cast iron
M20053924
IZE.115.10 11,5 12 118 71 2 HB 71
material steel
material cast iron
M20053925
IZE.116.10 11,6 12 118 71 2 HB 71
material steel
material cast iron
M20053926
IZE.117.10 11,7 12 118 71 2 HB 71
material steel
material cast iron
M20053927
IZE.118.10 11,8 12 118 71 2 HB 71
material steel
material cast iron
M20053928
IZE.119.10 11,9 12 118 71 2 HB 71
material steel
material cast iron
M20053929
IZE.120.10 12 12 118 71 2 HB 71
material steel
material cast iron
M20053930
IZE.122.10 12,2 14 124 77 2 HB 77
material steel
material cast iron
M20053931
IZE.123.10 12,3 14 124 77 2 HB 77
material steel
material cast iron
M20053932
IZE.125.10 12,5 14 124 77 2 HB 77
material steel
material cast iron
M20053933
IZE.128.10 12,8 14 124 77 2 HB 77
material steel
material cast iron
M20053934
IZE.130.10 13 14 124 77 2 HB 77
material steel
material cast iron
M20053935
IZE.135.10 13,5 14 124 77 2 HB 77
material steel
material cast iron
M20053936
IZE.138.10 13,8 14 124 77 2 HB 77
material steel
material cast iron
M20053937
IZE.140.10 14 14 124 77 2 HB 77
material steel
material cast iron
M20053938
IZE.145.10 14,5 16 133 83 2 HB 83
material steel
material cast iron
M20053939
IZE.148.10 14,8 16 133 83 2 HB 83
material steel
material cast iron
M20053940
IZE.150.10 15 16 133 83 2 HB 83
material steel
material cast iron
M20053941
IZE.155.10 15,5 16 133 83 2 HB 83
material steel
material cast iron
M20053942
IZE.158.10 15,8 16 133 83 2 HB 83
material steel
material cast iron
M20053943
IZE.160.10 16 16 133 83 2 HB 83
material steel
material cast iron
M20053944
IZE.165.10 16,5 18 143 93 2 HB 93
material steel
material cast iron
M20053945
IZE.168.10 16,8 18 143 93 2 HB 93
material steel
material cast iron
M20053946
IZE.170.10 17 18 143 93 2 HB 93
material steel
material cast iron
M20053947
IZE.175.10 17,5 18 143 93 2 HB 93
material steel
material cast iron
M20053948
IZE.178.10 17,8 18 143 93 2 HB 93
material steel
material cast iron
M20053949
IZE.180.10 18 18 143 93 2 HB 93
material steel
material cast iron
M20053950
IZE.185.10 18,5 20 153 101 2 HB 101
material steel
material cast iron
M20053951
IZE.190.10 19 20 153 101 2 HB 101
material steel
material cast iron
M20053952
IZE.195.10 19,5 20 153 101 2 HB 101
material steel
material cast iron
M20053953
IZE.200.10 20 20 153 101 2 HB 101
material steel
material cast iron
M20053954
IZE.465.10 4,65 6 74 36 2 HB 36
material steel
material cast iron
M20053955
IZE.555.10 5,55 6 82 44 2 HB 44
material steel
material cast iron
M20053956

Not the right product?

Back to overview
