MAS Solid carbide twist drill 3xD
Loading...
Loading...
Loading...
Loading...
Request product
Downloads to the product
Product information
- Geometry for hard materials - Typ H
- Tip angle 135°
- Without coolant hole
- Flutes 2
- Shank design HA
- Shank design HB
- Works standard
- Coating naco blue
- For steel
- For hardened steel 45-65HRC
- High Performance
- 1st Choice
- Machining direction z
- Drilling length 3xD
- Tip angle 135°
- Without coolant hole
- Flutes 2
- Shank design HA
- Shank design HB
- Works standard
- Coating naco blue
- For steel
- For hardened steel 45-65HRC
- High Performance
- 1st Choice
- Machining direction z
- Drilling length 3xD
Variants

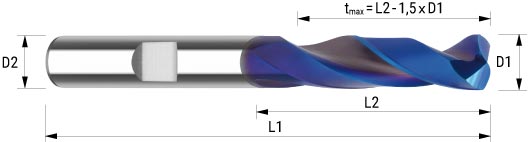

| product name | D1 | D2 | L1 | L2 | Z | shank | L4 | Suitability of material | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|
| HAZ.028.00 | 2,8 | 6 | 62 | 20 | 2 | HA | 20 |
|
M20051258 | |
| HAZ.030.00 | 3 | 6 | 62 | 20 | 2 | HA | 20 |
|
M20051259 | |
| HAZ.033.00 | 3,3 | 6 | 62 | 20 | 2 | HA | 20 |
|
M20051260 | |
| HAZ.034.00 | 3,4 | 6 | 62 | 20 | 2 | HA | 20 |
|
M20051261 | |
| HAZ.035.00 | 3,5 | 6 | 62 | 20 | 2 | HA | 20 |
|
M20051262 | |
| HAZ.038.00 | 3,8 | 6 | 66 | 24 | 2 | HA | 24 |
|
M20051263 | |
| HAZ.040.00 | 4 | 6 | 66 | 24 | 2 | HA | 24 |
|
M20051264 | |
| HAZ.042.00 | 4,2 | 6 | 66 | 24 | 2 | HA | 24 |
|
M20051265 | |
| HAZ.043.00 | 4,3 | 6 | 66 | 24 | 2 | HA | 24 |
|
M20051266 | |
| HAZ.045.00 | 4,5 | 6 | 66 | 24 | 2 | HA | 24 |
|
M20051267 | |
| HAZ.048.00 | 4,8 | 6 | 66 | 28 | 2 | HA | 28 |
|
M20051268 | |
| HAZ.050.00 | 5 | 6 | 66 | 28 | 2 | HA | 28 |
|
M20051269 | |
| HAZ.052.00 | 5,2 | 6 | 66 | 28 | 2 | HA | 28 |
|
M20051270 | |
| HAZ.055.00 | 5,5 | 6 | 66 | 28 | 2 | HA | 28 |
|
M20051271 | |
| HAZ.058.00 | 5,8 | 6 | 66 | 28 | 2 | HA | 28 |
|
M20051272 | |
| HAZ.060.00 | 6 | 6 | 66 | 28 | 2 | HA | 28 |
|
M20051273 | |
| HAZ.065.00 | 6,5 | 8 | 79 | 34 | 2 | HA | 34 |
|
M20051274 | |
| HAZ.068.00 | 6,8 | 8 | 79 | 34 | 2 | HA | 34 |
|
M20051275 | |
| HAZ.070.00 | 7 | 8 | 79 | 34 | 2 | HA | 34 |
|
M20051276 | |
| HAZ.072.00 | 7,2 | 8 | 79 | 41 | 2 | HA | 41 |
|
M20051277 | |
| HAZ.078.00 | 7,8 | 8 | 79 | 41 | 2 | HA | 41 |
|
M20051278 | |
| HAZ.080.00 | 8 | 8 | 79 | 41 | 2 | HA | 41 |
|
M20051279 | |
| HAZ.085.00 | 8,5 | 10 | 89 | 47 | 2 | HA | 47 |
|
M20051280 | |
| HAZ.087.00 | 8,7 | 10 | 89 | 47 | 2 | HA | 47 |
|
M20051281 | |
| HAZ.088.00 | 8,8 | 10 | 89 | 47 | 2 | HA | 47 |
|
M20051282 | |
| HAZ.090.00 | 9 | 10 | 89 | 47 | 2 | HA | 47 |
|
M20051283 | |
| HAZ.098.00 | 9,8 | 10 | 89 | 47 | 2 | HA | 47 |
|
M20051284 | |
| HAZ.100.00 | 10 | 10 | 89 | 47 | 2 | HA | 47 |
|
M20051285 | |
| HAZ.102.00 | 10,2 | 12 | 102 | 55 | 2 | HA | 55 |
|
M20051286 | |
| HAZ.103.00 | 10,3 | 12 | 102 | 55 | 2 | HA | 55 |
|
M20051287 | |
| HAZ.105.00 | 10,5 | 12 | 102 | 55 | 2 | HA | 55 |
|
M20051288 | |
| HAZ.108.00 | 10,8 | 12 | 102 | 55 | 2 | HA | 55 |
|
M20051289 | |
| HAZ.110.00 | 11 | 12 | 102 | 55 | 2 | HA | 55 |
|
M20051290 | |
| HAZ.118.00 | 11,8 | 12 | 102 | 55 | 2 | HA | 55 |
|
M20051291 | |
| HAZ.120.00 | 12 | 12 | 102 | 55 | 2 | HA | 55 |
|
M20051292 | |
| HAZ.125.00 | 12,5 | 14 | 107 | 60 | 2 | HA | 60 |
|
M20051293 | |
| HAZ.128.00 | 12,8 | 14 | 107 | 60 | 2 | HA | 60 |
|
M20051294 | |
| HAZ.130.00 | 13 | 14 | 107 | 60 | 2 | HA | 60 |
|
M20051295 | |
| HAZ.138.00 | 13,8 | 14 | 107 | 60 | 2 | HA | 60 |
|
M20051296 | |
| HAZ.140.00 | 14 | 14 | 107 | 60 | 2 | HA | 60 |
|
M20051297 | |
| HAZ.148.00 | 14,8 | 16 | 115 | 65 | 2 | HA | 65 |
|
M20051298 | |
| HAZ.150.00 | 15 | 16 | 115 | 65 | 2 | HA | 65 |
|
M20051299 | |
| HAZ.158.00 | 15,8 | 16 | 115 | 65 | 2 | HA | 65 |
|
M20051300 | |
| HAZ.160.00 | 16 | 16 | 115 | 65 | 2 | HA | 65 |
|
M20051301 | |
| HAZ.028.10 | 2,8 | 6 | 62 | 20 | 2 | HB | 20 |
|
M20053339 | |
| HAZ.030.10 | 3 | 6 | 62 | 20 | 2 | HB | 20 |
|
M20053340 | |
| HAZ.033.10 | 3,3 | 6 | 62 | 20 | 2 | HB | 20 |
|
M20053341 | |
| HAZ.034.10 | 3,4 | 6 | 62 | 20 | 2 | HB | 20 |
|
M20053342 | |
| HAZ.035.10 | 3,5 | 6 | 62 | 20 | 2 | HB | 20 |
|
M20053343 | |
| HAZ.038.10 | 3,8 | 6 | 66 | 24 | 2 | HB | 24 |
|
M20053344 | |
| HAZ.040.10 | 4 | 6 | 66 | 24 | 2 | HB | 24 |
|
M20053345 | |
| HAZ.042.10 | 4,2 | 6 | 66 | 24 | 2 | HB | 24 |
|
M20053346 | |
| HAZ.043.10 | 4,3 | 6 | 66 | 24 | 2 | HB | 24 |
|
M20053347 | |
| HAZ.045.10 | 4,5 | 6 | 66 | 24 | 2 | HB | 24 |
|
M20053348 | |
| HAZ.048.10 | 4,8 | 6 | 66 | 28 | 2 | HB | 28 |
|
M20053349 | |
| HAZ.050.10 | 5 | 6 | 66 | 28 | 2 | HB | 28 |
|
M20053350 | |
| HAZ.052.10 | 5,2 | 6 | 66 | 28 | 2 | HB | 28 |
|
M20053351 | |
| HAZ.055.10 | 5,5 | 6 | 66 | 28 | 2 | HB | 28 |
|
M20053352 | |
| HAZ.058.10 | 5,8 | 6 | 66 | 28 | 2 | HB | 28 |
|
M20053353 | |
| HAZ.060.10 | 6 | 6 | 66 | 28 | 2 | HB | 28 |
|
M20053354 | |
| HAZ.065.10 | 6,5 | 8 | 79 | 34 | 2 | HB | 34 |
|
M20053355 | |
| HAZ.068.10 | 6,8 | 8 | 79 | 34 | 2 | HB | 34 |
|
M20053356 | |
| HAZ.070.10 | 7 | 8 | 79 | 34 | 2 | HB | 34 |
|
M20053357 | |
| HAZ.072.10 | 7,2 | 8 | 79 | 41 | 2 | HB | 41 |
|
M20053358 | |
| HAZ.078.10 | 7,8 | 8 | 79 | 41 | 2 | HB | 41 |
|
M20053359 | |
| HAZ.080.10 | 8 | 8 | 79 | 41 | 2 | HB | 41 |
|
M20053360 | |
| HAZ.085.10 | 8,5 | 10 | 89 | 47 | 2 | HB | 47 |
|
M20053361 | |
| HAZ.087.10 | 8,7 | 10 | 89 | 47 | 2 | HB | 47 |
|
M20053362 | |
| HAZ.088.10 | 8,8 | 10 | 89 | 47 | 2 | HB | 47 |
|
M20053363 | |
| HAZ.090.10 | 9 | 10 | 89 | 47 | 2 | HB | 47 |
|
M20053364 | |
| HAZ.098.10 | 9,8 | 10 | 89 | 47 | 2 | HB | 47 |
|
M20053365 | |
| HAZ.100.10 | 10 | 10 | 89 | 47 | 2 | HB | 47 |
|
M20053366 | |
| HAZ.102.10 | 10,2 | 12 | 102 | 55 | 2 | HB | 55 |
|
M20053367 | |
| HAZ.103.10 | 10,3 | 12 | 102 | 55 | 2 | HB | 55 |
|
M20053368 | |
| HAZ.105.10 | 10,5 | 12 | 102 | 55 | 2 | HB | 55 |
|
M20053369 | |
| HAZ.108.10 | 10,8 | 12 | 102 | 55 | 2 | HB | 55 |
|
M20053370 | |
| HAZ.110.10 | 11 | 12 | 102 | 55 | 2 | HB | 55 |
|
M20053371 | |
| HAZ.118.10 | 11,8 | 12 | 102 | 55 | 2 | HB | 55 |
|
M20053372 | |
| HAZ.120.10 | 12 | 12 | 102 | 55 | 2 | HB | 55 |
|
M20053373 | |
| HAZ.125.10 | 12,5 | 14 | 107 | 60 | 2 | HB | 60 |
|
M20053374 | |
| HAZ.128.10 | 12,8 | 14 | 107 | 60 | 2 | HB | 60 |
|
M20053375 | |
| HAZ.130.10 | 13 | 14 | 107 | 60 | 2 | HB | 60 |
|
M20053376 | |
| HAZ.138.10 | 13,8 | 14 | 107 | 60 | 2 | HB | 60 |
|
M20053377 | |
| HAZ.140.10 | 14 | 14 | 107 | 60 | 2 | HB | 60 |
|
M20053378 | |
| HAZ.148.10 | 14,8 | 16 | 115 | 65 | 2 | HB | 65 |
|
M20053379 | |
| HAZ.150.10 | 15 | 16 | 115 | 65 | 2 | HB | 65 |
|
M20053380 | |
| HAZ.158.10 | 15,8 | 16 | 115 | 65 | 2 | HB | 65 |
|
M20053381 | |
| HAZ.160.10 | 16 | 16 | 115 | 65 | 2 | HB | 65 |
|
M20053382 |
