MAS Solid carbide step drill for countersinking screw heads
Loading...
Loading...
Loading...
Loading...
Request product
Downloads to the product
Product information
- Geometry for materials normal to soft - Typ N-W
- Flutes 2
- Tip angle 140°
- Step angle 180°
- Without coolant hole
- Shank design HA
- Works standard
- Coating TIALN
- For universal processing
- High Performance
- Machining direction z
- Flutes 2
- Tip angle 140°
- Step angle 180°
- Without coolant hole
- Shank design HA
- Works standard
- Coating TIALN
- For universal processing
- High Performance
- Machining direction z
Variants

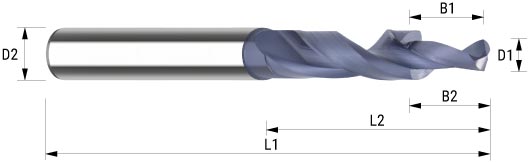

| product name | D1 | D2 | L1 | L2 | Z | shank | L4 | B1 | B2 | Suitability of material | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HDA.034.00 | 3,4 | 6 | 64 | 28 | 2 | HA | 28 | 9 | 962 |
|
M20051451 | |
| HDA.045.00 | 4,5 | 8 | 79 | 37 | 2 | HA | 37 | 11 | 1182 |
|
M20051452 | |
| HDA.055.00 | 5,5 | 10 | 89 | 43 | 2 | HA | 43 | 13 | 14 |
|
M20051453 | |
| HDA.066.00 | 6,6 | 12 | 102 | 55 | 2 | HA | 55 | 15 | 162 |
|
M20051454 | |
| HDA.090.00 | 9 | 16 | 115 | 65 | 2 | HA | 65 | 19 | 2064 |
|
M20051455 | |
| HDA.110.00 | 11 | 18 | 123 | 62 | 2 | HA | 62 | 23 | 25 |
|
M20051456 |
