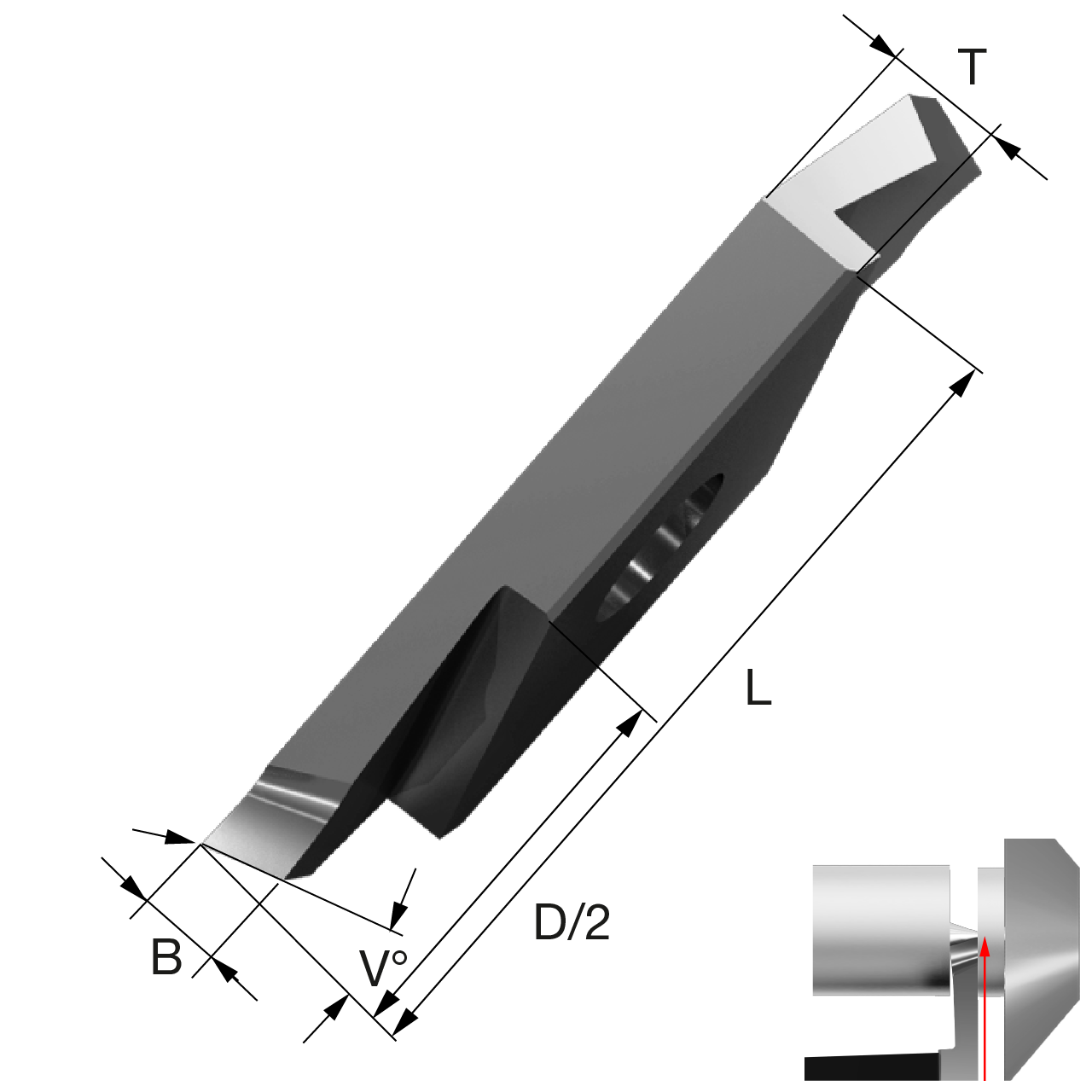

MAS SWISS©line K-Typ Insert, for parting off against sub spindle
Loading...
Loading...
Request product
Downloads to the product
Product information
MAS SWISS©line standard inserts all have sharp, fully ground cutting edges. Standard inserts are available between 2° and 20° positive cutting rake – to perform outstanding in every operation. Thanks to this inventive combination MAS SWISS©line inserts are up for any material or application challenge.
Variants
| product name | Type | plate size | Execution | L Length (mm) | B (mm) | MAX Ø | Carbide grade | Suitability of material | C° rake angle | R radius (mm) | ART.-NR: | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| K11ELZR1008M | K | 11 | links | 11 | 10 | 9 | 8M |
|
M20042389 | |||
| K11ELZR100B8 | K | 11 | links | 11 | 10 | 9 | B8 |
|
M20042390 | |||
| K11ELZR100C8 | K | 11 | links | 11 | 10 | 9 | C8 |
|
M20042391 | |||
| K11ELZR100F8 | K | 11 | links | 11 | 10 | 9 | F8 |
|
M20042392 | |||
| K11ELZR1508M | K | 11 | links | 11 | 15 | 11 | 8M |
|
M20042393 | |||
| K11ELZR150B8 | K | 11 | links | 11 | 15 | 11 | B8 |
|
M20042394 | |||
| K11ELZR150C8 | K | 11 | links | 11 | 15 | 11 | C8 |
|
M20042395 | |||
| K11ELZR150F8 | K | 11 | links | 11 | 15 | 11 | F8 |
|
M20042396 | |||
| K11ELZR05128M | K | 11 | links | 11 | 5 | 4 | 8M |
|
12° | M20042397 | ||
| K11ELZR0512B8 | K | 11 | links | 11 | 5 | 4 | B8 |
|
12° | M20042398 | ||
| K11ELZR0512C8 | K | 11 | links | 11 | 5 | 4 | C8 |
|
12° | M20042399 | ||
| K11ELZR0512F8 | K | 11 | links | 11 | 5 | 4 | F8 |
|
12° | M20042400 | ||
| K11ELZR10128M | K | 11 | links | 11 | 10 | 9 | 8M |
|
12° | M20042401 | ||
| K11ELZR1012B8 | K | 11 | links | 11 | 10 | 9 | B8 |
|
12° | M20042402 | ||
| K11ELZR1012C8 | K | 11 | links | 11 | 10 | 9 | C8 |
|
12° | M20042403 | ||
| K11ELZR1012F8 | K | 11 | links | 11 | 10 | 9 | F8 |
|
12° | M20042404 | ||
| K11ELZR1012058M | K | 11 | links | 11 | 10 | 8M |
|
12° | 0.05 | M20042405 | ||
| K11ELZR101205F8 | K | 11 | links | 11 | 10 | F8 |
|
12° | 0.05 | M20042406 | ||
| K11ELZR15128M | K | 11 | links | 11 | 15 | 11 | 8M |
|
12° | M20042407 | ||
| K11ELZR1512B8 | K | 11 | links | 11 | 15 | 11 | B8 |
|
12° | M20042408 | ||
| K11ELZR1512C8 | K | 11 | links | 11 | 15 | 11 | C8 |
|
12° | M20042409 | ||
| K11ELZR1512F8 | K | 11 | links | 11 | 15 | 11 | F8 |
|
12° | M20042410 | ||
| K15ELSR1008M | K | 15 | links | 15 | 10 | 55 | 8M |
|
M20042587 | |||
| K15ELSR100B8 | K | 15 | links | 15 | 10 | 55 | B8 |
|
M20042588 | |||
| K15ELSR100C8 | K | 15 | links | 15 | 10 | 55 | C8 |
|
M20042589 | |||
| K15ELSR100F8 | K | 15 | links | 15 | 10 | 55 | F8 |
|
M20042590 | |||
| K15ELSR1508M | K | 15 | links | 15 | 15 | 8 | 8M |
|
M20042591 | |||
| K15ELSR150B8 | K | 15 | links | 15 | 15 | 8 | B8 |
|
M20042592 | |||
| K15ELSR150C8 | K | 15 | links | 15 | 15 | 8 | C8 |
|
M20042593 | |||
| K15ELSR150F8 | K | 15 | links | 15 | 15 | 8 | F8 |
|
M20042594 | |||
| K15ELZR1008M | K | 15 | links | 15 | 10 | 10 | 8M |
|
M20042664 | |||
| K15ELZR100B8 | K | 15 | links | 15 | 10 | 10 | B8 |
|
M20042665 | |||
| K15ELZR100C8 | K | 15 | links | 15 | 10 | 10 | C8 |
|
M20042666 | |||
| K15ELZR100F8 | K | 15 | links | 15 | 10 | 10 | F8 |
|
M20042667 | |||
| K15ELZR1508M | K | 15 | links | 15 | 15 | 12 | 8M |
|
M20042668 | |||
| K15ELZR150B8 | K | 15 | links | 15 | 15 | 12 | B8 |
|
M20042669 | |||
| K15ELZR150C8 | K | 15 | links | 15 | 15 | 12 | C8 |
|
M20042670 | |||
| K15ELZR150F8 | K | 15 | links | 15 | 15 | 12 | F8 |
|
M20042671 | |||
| K15ELZR2008M | K | 15 | links | 15 | 20 | 12 | 8M |
|
M20042672 | |||
| K15ELZR200B8 | K | 15 | links | 15 | 20 | 12 | B8 |
|
M20042673 | |||
| K15ELZR200C8 | K | 15 | links | 15 | 20 | 12 | C8 |
|
M20042674 | |||
| K15ELZR200F8 | K | 15 | links | 15 | 20 | 12 | F8 |
|
M20042675 | |||
| K15ELSR10128M | K | 15 | links | 15 | 10 | 55 | 8M |
|
12° | M20042690 | ||
| K15ELSR1012B8 | K | 15 | links | 15 | 10 | 55 | B8 |
|
12° | M20042691 | ||
| K15ELSR1012C8 | K | 15 | links | 15 | 10 | 55 | C8 |
|
12° | M20042692 | ||
| K15ELSR1012F8 | K | 15 | links | 15 | 10 | 55 | F8 |
|
12° | M20042693 | ||
| K15ELSR15128M | K | 15 | links | 15 | 15 | 8 | 8M |
|
12° | M20042694 | ||
| K15ELSR1512B8 | K | 15 | links | 15 | 15 | 8 | B8 |
|
12° | M20042695 | ||
| K15ELSR1512C8 | K | 15 | links | 15 | 15 | 8 | C8 |
|
12° | M20042696 | ||
| K15ELSR1512F8 | K | 15 | links | 15 | 15 | 8 | F8 |
|
12° | M20042697 | ||
| K15ELYR15128M | K | 15 | links | 15 | 15 | 12 | 8M |
|
12° | M20042698 | ||
| K15ELYR1512B8 | K | 15 | links | 15 | 15 | 12 | B8 |
|
12° | M20042699 | ||
| K15ELYR1512C8 | K | 15 | links | 15 | 15 | 12 | C8 |
|
12° | M20042700 | ||
| K15ELYR1512F8 | K | 15 | links | 15 | 15 | 12 | F8 |
|
12° | M20042701 | ||
| K15ELYR20128M | K | 15 | links | 15 | 20 | 12 | 8M |
|
12° | M20042702 | ||
| K15ELYR2012B8 | K | 15 | links | 15 | 20 | 12 | B8 |
|
12° | M20042703 | ||
| K15ELYR2012C8 | K | 15 | links | 15 | 20 | 12 | C8 |
|
12° | M20042704 | ||
| K15ELYR2012F8 | K | 15 | links | 15 | 20 | 12 | F8 |
|
12° | M20042705 | ||
| K15ELZR10128M | K | 15 | links | 15 | 10 | 10 | 8M |
|
12° | M20042706 | ||
| K15ELZR1012B8 | K | 15 | links | 15 | 10 | 10 | B8 |
|
12° | M20042707 | ||
| K15ELZR1012C8 | K | 15 | links | 15 | 10 | 10 | C8 |
|
12° | M20042708 | ||
| K15ELZR1012F8 | K | 15 | links | 15 | 10 | 10 | F8 |
|
12° | M20042709 | ||
| K15ELZR1012058M | K | 15 | links | 15 | 10 | 8M |
|
12° | 0.05 | M20042710 | ||
| K15ELZR101205B8 | K | 15 | links | 15 | 10 | B8 |
|
12° | 0.05 | M20042711 | ||
| K15ELZR101205C8 | K | 15 | links | 15 | 10 | C8 |
|
12° | 0.05 | M20042712 | ||
| K15ELZR101205F8 | K | 15 | links | 15 | 10 | F8 |
|
12° | 0.05 | M20042713 | ||
| K15ELZR15128M | K | 15 | links | 15 | 15 | 12 | 8M |
|
12° | M20042714 | ||
| K15ELZR1512B8 | K | 15 | links | 15 | 15 | 12 | B8 |
|
12° | M20042715 | ||
| K15ELZR1512C8 | K | 15 | links | 15 | 15 | 12 | C8 |
|
12° | M20042716 | ||
| K15ELZR1512F8 | K | 15 | links | 15 | 15 | 12 | F8 |
|
12° | M20042717 | ||
| K15ELZR1512058M | K | 15 | links | 15 | 15 | 8M |
|
12° | 0.05 | M20042718 | ||
| K15ELZR151205C8 | K | 15 | links | 15 | 15 | C8 |
|
12° | 0.05 | M20042719 | ||
| K15ELZR151205F8 | K | 15 | links | 15 | 15 | F8 |
|
12° | 0.05 | M20042720 | ||
| K15ELZR20128M | K | 15 | links | 15 | 20 | 12 | 8M |
|
12° | M20042721 | ||
| K15ELZR2012B8 | K | 15 | links | 15 | 20 | 12 | B8 |
|
12° | M20042722 | ||
| K15ELZR2012C8 | K | 15 | links | 15 | 20 | 12 | C8 |
|
12° | M20042723 | ||
| K15ELZR2012F8 | K | 15 | links | 15 | 20 | 12 | F8 |
|
12° | M20042724 | ||
| K15ELZR151205B8 | K | 15 | links | 15 | 15 | B8 |
|
12° | 0.05 | M20043432 |
